APC AP4423A NetShelter Rack ATS 16A 230V 1U 2 C20 IN 8 C13 1 C19 OUT

New

High-availability automatic transfer switch with redundant power for IT racks
×




  • New

Detailed Specifications

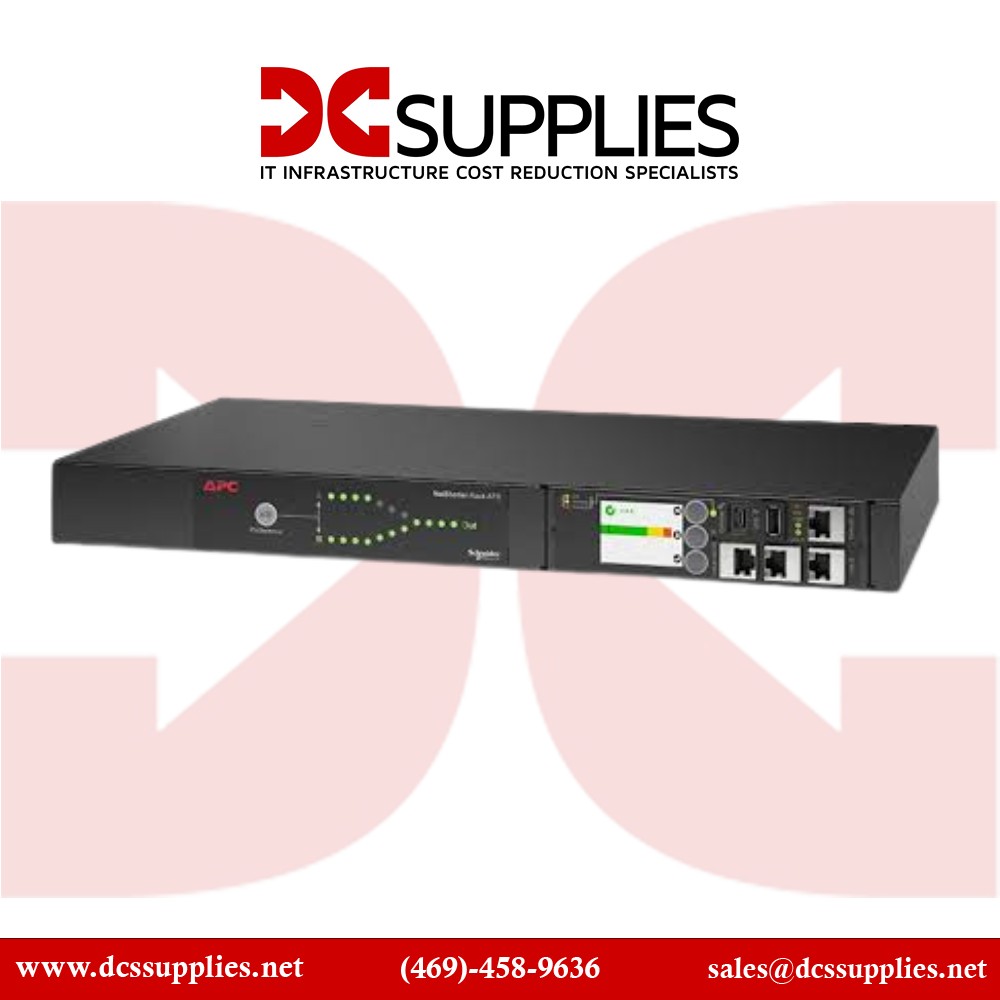

APC AP4423A NetShelter Rack Automatic Transfer Switch

16A 230V 1U 2 C20 IN 8 C13 1 C19 OUT

Intro Overview:

The APC AP4423A is a NetShelter Rack ATS (Automatic Transfer Switch) designed to provide redundant power to single-corded equipment. This 1U device ensures continuous uptime by seamlessly switching between two independent power sources in the event of a power outage or source failure. It has a 16A capacity at 230V, making it an essential component for high-availability IT environments.

Expanded Overview:

The APC AP4423A is a high-performance Automatic Transfer Switch engineered to prevent downtime for mission-critical equipment. It features dual C20 inputs for connection to two separate power sources and provides power through 8 x IEC C13 outlets and 1 x IEC C19 outlet. The fast transfer time of less than 10ms ensures that the switch is quick enough to prevent equipment from losing power. The integrated Network Management Card allows for secure remote monitoring and management, providing real-time data on power usage and status.

Features :

The APC AP4423A is a feature-rich and efficient power accessory.

Product Key Features

Reliability & Performance :

The APC AP4423A Automatic Transfer Switch is engineered for uncompromised reliability and consistent performance. Its robust construction and intelligent switching technology ensure that it can handle the demands of enterprise-level power protection. This ATS is a cornerstone for ensuring a stable and secure power environment for mission-critical applications that demand top-tier performance from their APC solution.

Key Features :

  • Minimized downtime disruption
  • Dual input power cords for redundant power
  • Real-time monitoring of power sources
  • Remote management via Web UI, CLI, and SNMP
  • Seamless integration with compatible APC hardware

Specifications :

SpecificationDetails
Model Number AP4423A
Brand APC by Schneider Electric
Product Type Automatic Transfer Switch (ATS)
Form Factor 1U Rack-mountable
Input Voltage 230V AC

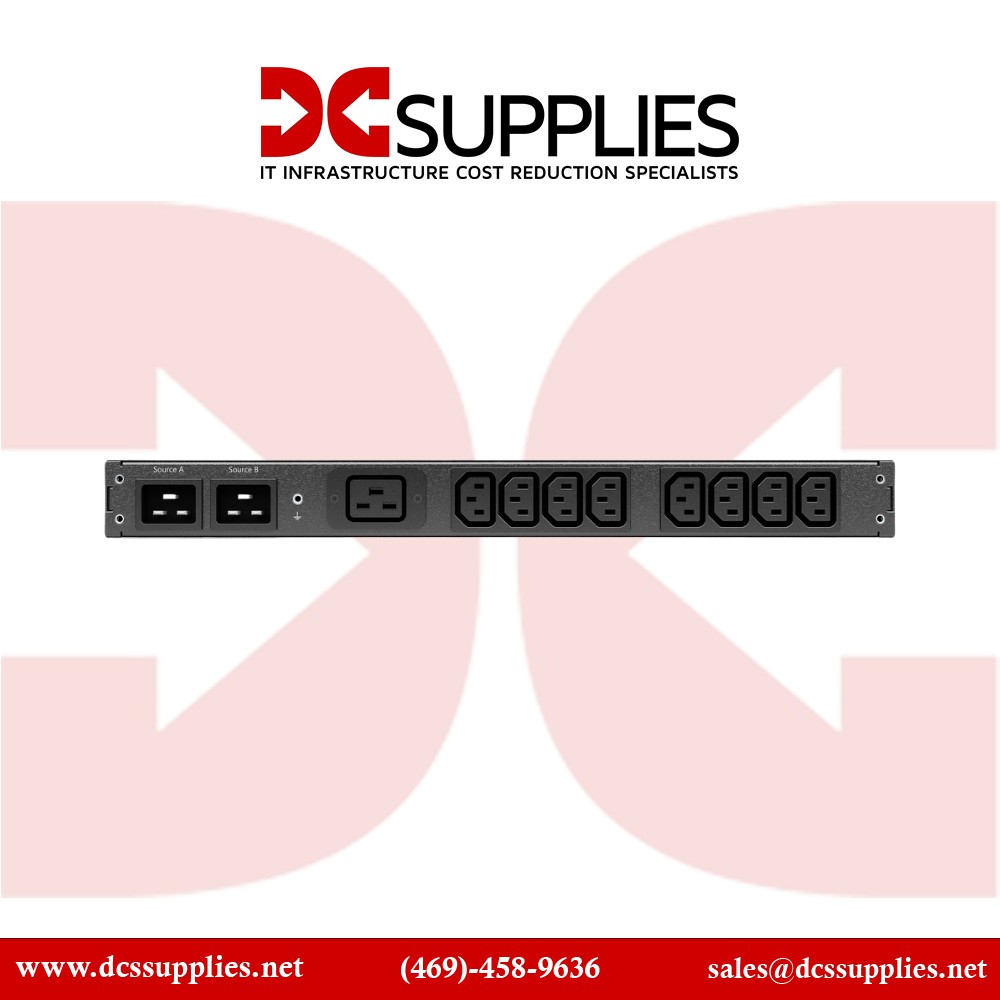

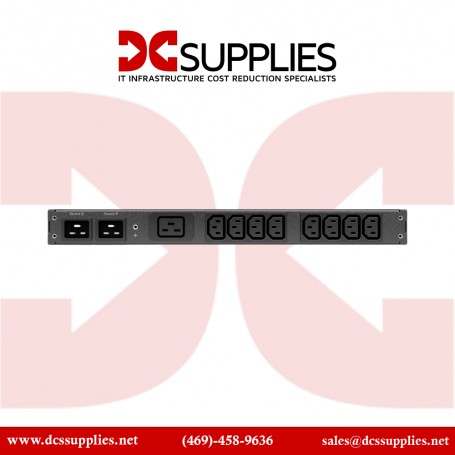

Input Connections 2 x IEC C20
Output Voltage 230V AC
Output Connections 8 x IEC C13, 1 x IEC C19
Rated Current 16A
Transfer Time 4-6ms
Color Black
Weight (Net) ~8 lbs (3.6 kg)
Dimensions (H x W x D) 1.7" x 17" x 9.3" (Approx)
Warranty 2-Year Repair or Replace
