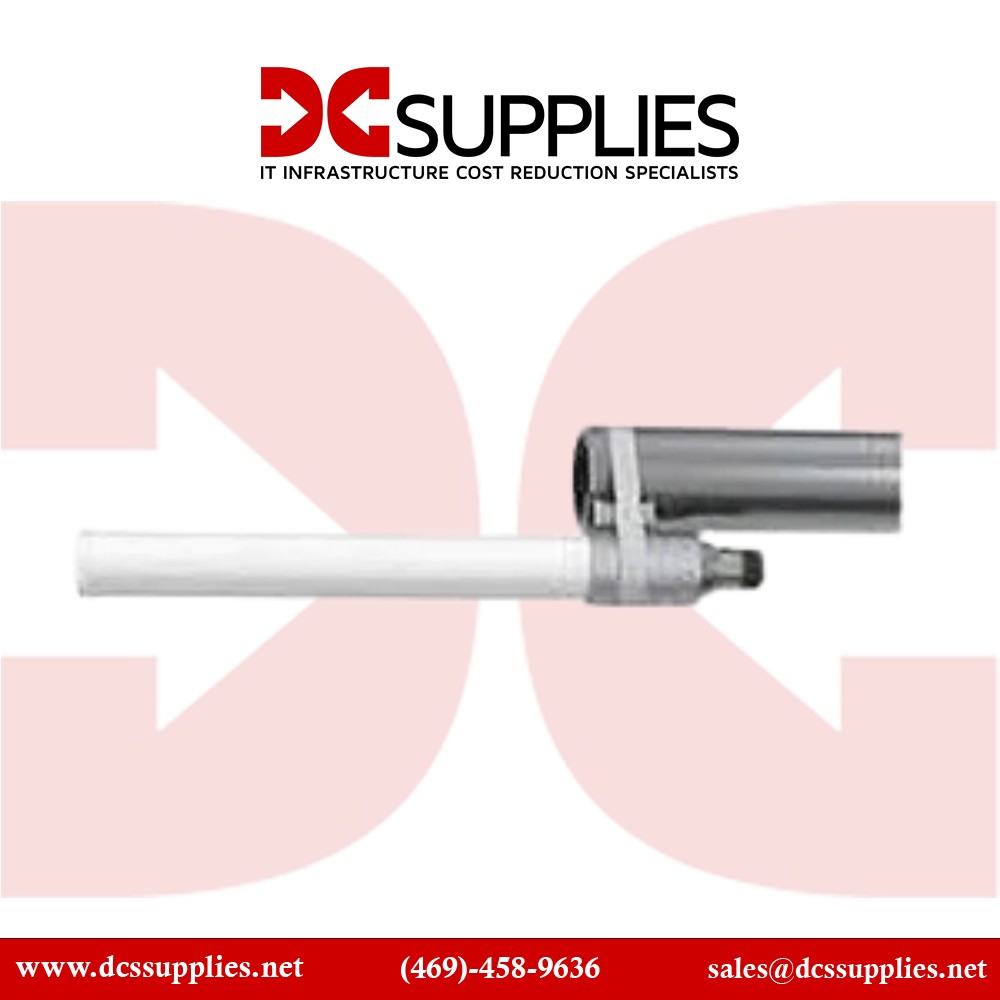

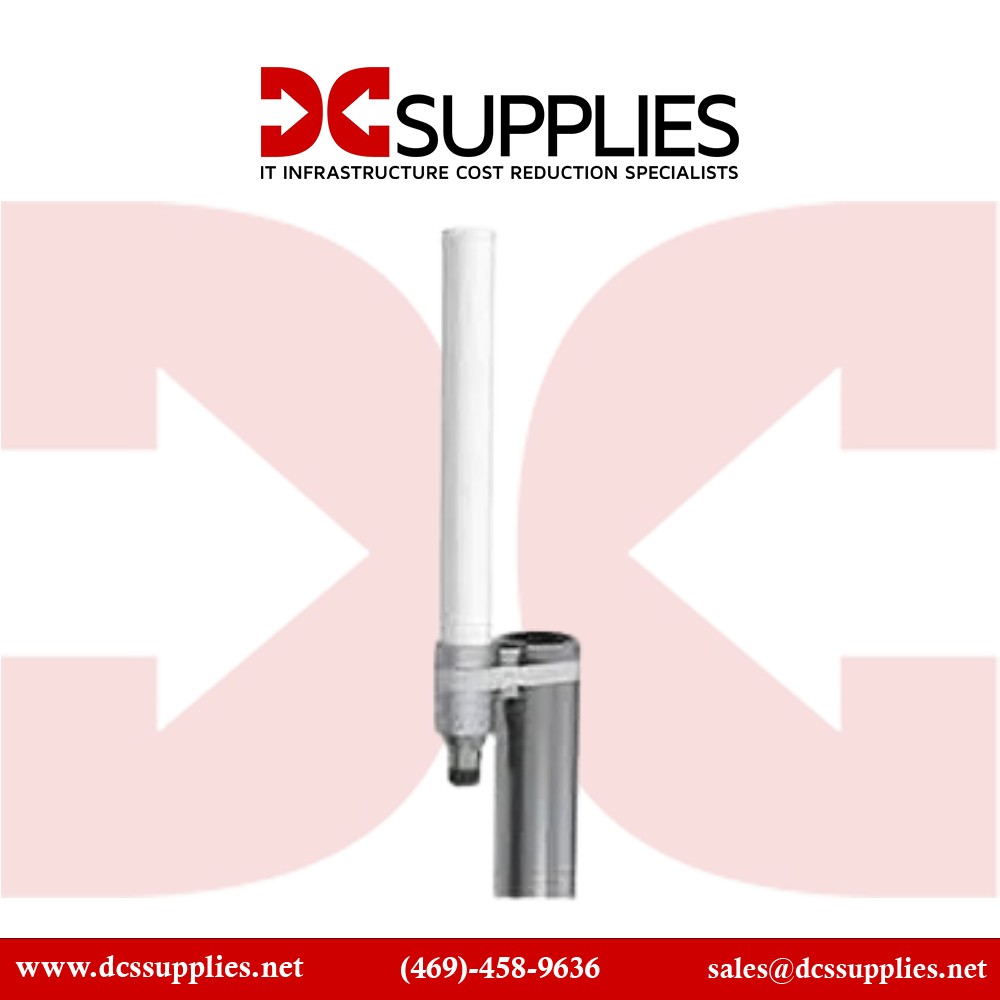

HPE Aruba Jw004a Indoor/Outdoor Omni Antenna

New

Aruba Jw004a Indoor/Outdoor Omni Antenna
×




  • New

Detailed Specifications

HPE JW004A

Aruba AP‑ANT‑19 Indoor/Outdoor Omni‑Directional Antenna – Dual‑Band 3 dBi/6 dBi

The HPE Aruba JW004A (AP‑ANT‑19) is a high-performance omni-directional antenna ideal for extending Wi‑Fi coverage both indoors and outdoors. Compatible with Aruba access points featuring RP‑SMA connectors, it delivers reliable dual-band performance for enterprise, campus, or outdoor deployments in challenging RF environments.

Features

Designed to complement Aruba APs, this antenna captures all-around signals with a full 360° horizontal pattern, while vertical polarization improves signal consistency. Operating over both 2.4 GHz (3 dBi gain) and 5 GHz (6 dBi gain), it ensures better range and throughput for voice, data, and IoT applications across standard and elevated Wi‑Fi bands .

Advanced Options

Constructed with rugged polycarbonate and weather-proof seals, it easily withstands harsh environments from –30 °C to +70 °C. The integrated 36″ RP‑SMA pigtail and included mounting kit simplify installation on ceilings, poles, or beams — perfect for fast and dependable rooftop or campus area deployments .

Product Key Features

  •  Dual‑band coverage: 2.4 GHz @ 3 dBi, 5 GHz @ 6 dBi

  •  360° omnidirectional pattern with vertical polarization

  •  Rugged polycarbonate housing—indoor or outdoor use

  •  Built-in 36″ RP‑SMA pigtail for easy connection

  •  Includes mounting hardware: pole, ceiling, I‑beam

  •  Supports up to 10 W input power for robust performance

Reliability & Performance

Engineered for continuous operation, the JW004A supports up to 10 W of transmit power and features stable VSWR (< 2.0:1) with 50 Ω impedance — delivering clear, consistent coverage. The included hardware ensures secure mounting and consistent polarization alignment, reducing connectivity dead zones for devices roaming between indoor and outdoor areas .

Key Features :

    • Dual‑band frequency support (2.4/5 GHz)

    • Gain: 3 dBi @ 2.4 GHz; 6 dBi @ 5 GHz

    • 360° horizontal omnidirectional pattern

    • RP‑SMA pigtail connector, 36″ cable

    • Rugged polycarbonate enclosure, –30 °C to +70 °C

    • Supports up to 10 W transmit power

    • Mounting hardware included (ceiling, pole, I‑beam)

SpecificationDetails
Model Number JW004A (AP‑ANT‑19)
Product Type Dual‑Band Omni‑Directional Antenna
Frequency Range 2.4–2.5 GHz; 5.15–5.875 GHz
Gain 3 dBi @ 2.4 GHz; 6 dBi @ 5 GHz
Horizontal Beamwidth 360°
Vertical Beamwidth ~50° @ 2.4 GHz; ~20° @ 5 GHz
Polarization Vertical
Impedance 50 Ω
VSWR < 2.0:1
Max Input Power 10 W
Connector RP‑SMA pigtail, 36″ cable
Enclosure Material Polycarbonate
Operating Temp –30 °C to +70 °C
Mounting Options Pole, ceiling, I‑beam mounting hardware included
Height 245 mm (9.65″)
Weight 140 g (0.30 lb)
Use Case Indoor/Outdoor WLAN, WIP, IoT, Air monitoring
