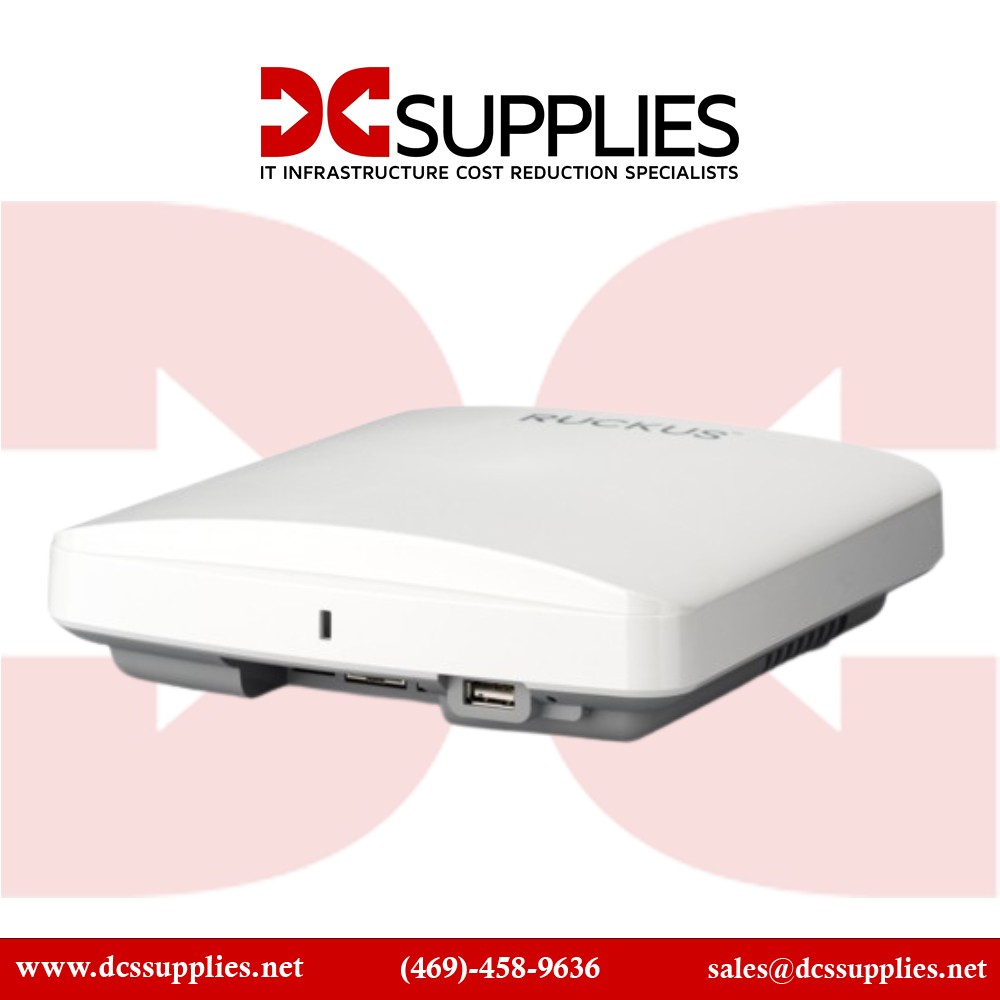

Ruckus 901-R550-WW00 Wireless Access Point with Bluetooth, ZigBee, Wi-Fi 6

New

Wi-Fi 6 access point with Bluetooth and ZigBee

×




  • New

Detailed Specifications

Ruckus 901-R550-WW00

Wireless Access Point – Wi-Fi 6 with IoT Integration (Bluetooth & ZigBee)

The Ruckus 901-R550-WW00 is a high-performance Wi-Fi 6 wireless access point designed to serve enterprises, offices, and smart environments. Delivering fast, reliable dual-band Wi-Fi along with integrated Bluetooth and ZigBee radios, this AP enables seamless IoT integration while offering advanced security and flexible deployment options.

Expanded Overview :

Offering robust dual-band Wi-Fi 6 capabilities, the Ruckus R550 supports dense environments with enhanced efficiency, capacity, and lower latency. Using OFDMA and MU-MIMO, it enables simultaneous, interference-free connections for multiple client devices, making it ideal for classrooms, offices, smart buildings, or enterprise campuses.

Integrated Bluetooth and ZigBee radios provide direct support for IoT devices such as sensors, smart lighting systems, and beacons, removing the requirement for separate IoT gateways. This feature simplifies smart environment deployments while reducing infrastructure costs.

The R550 also includes WPA3 encryption for next-generation wireless security, seamless roaming support, and advanced interference mitigation technologies. Its compact footprint and mounting flexibility make deployment convenient across diverse indoor environments.

Flexible management options are supported via Ruckus Cloud, SmartZone Controllers, or on-prem setup for unified network control and simplified monitoring—giving IT administrators operational flexibility and reduced maintenance overheads.

Product Key Features

  • Dual-band Wi-Fi 6 (802.11ax) for ultra-fast, reliable connectivity
  • Integrated Bluetooth 5.0 and ZigBee radios for IoT integration
  • OFDMA and MU-MIMO for optimized multi-user environments
  • Advanced wireless security with WPA3 and WPA2 support
  • Cloud, controller, or on-premises management flexibility
  • Compact form factor; wall or ceiling mounting supported

Reliability & Performance :

The Ruckus R550 access point is engineered for seamless performance in high-density environments, featuring intelligent band steering, adaptive antenna technology, and interference mitigation capabilities that ensure consistent throughput. Its compact wall or ceiling mountable design simplifies deployment while its 802.3at PoE+ support reduces cabling complexity. With energy-efficient operation and robust WPA3-level security, the R550 combines superior performance, reliability, and sustainability in one device.

Key Features :

  • Dual-band Wi-Fi 6 (802.11ax) with 2.4GHz and 5GHz operation
  • Up to 2.4Gbps aggregate data throughput
  • Support for IoT with integrated Bluetooth 5.0 and ZigBee radios
  • Internal adaptive antennas for reliable coverage
  • OFDMA and MU-MIMO advanced technologies
  • Supports PoE+ (802.3at) for simplified power delivery
  • Enterprise-class WPA3/WPA2/802.1X security
  • Flexible Ruckus Cloud or SmartZone management support

Technical Specifications :

SpecificationDetails
Model Number 901-R550-WW00
Type Wireless Access Point Wi-Fi 6
Wi-Fi Standard 802.11ax (Wi-Fi 6), backward compatible with 802.11a/b/g/n/ac
Frequency Bands 2.4 GHz and 5 GHz
Maximum Data Rate Up to 2.4 Gbps combined
Ports 1 × 1G Ethernet, 1 × USB port for IoT expansion
Antennas Internal adaptive antennas
PoE Support PoE+ 802.3at
IoT Radios Bluetooth 5.0, ZigBee
Mounting Wall or ceiling mountable
Security Protocols WPA3, WPA2, 802.1X, rogue AP detection
Management Options Ruckus Cloud, SmartZone Controller, On-premises
Dimensions 220 × 220 × 50 mm
