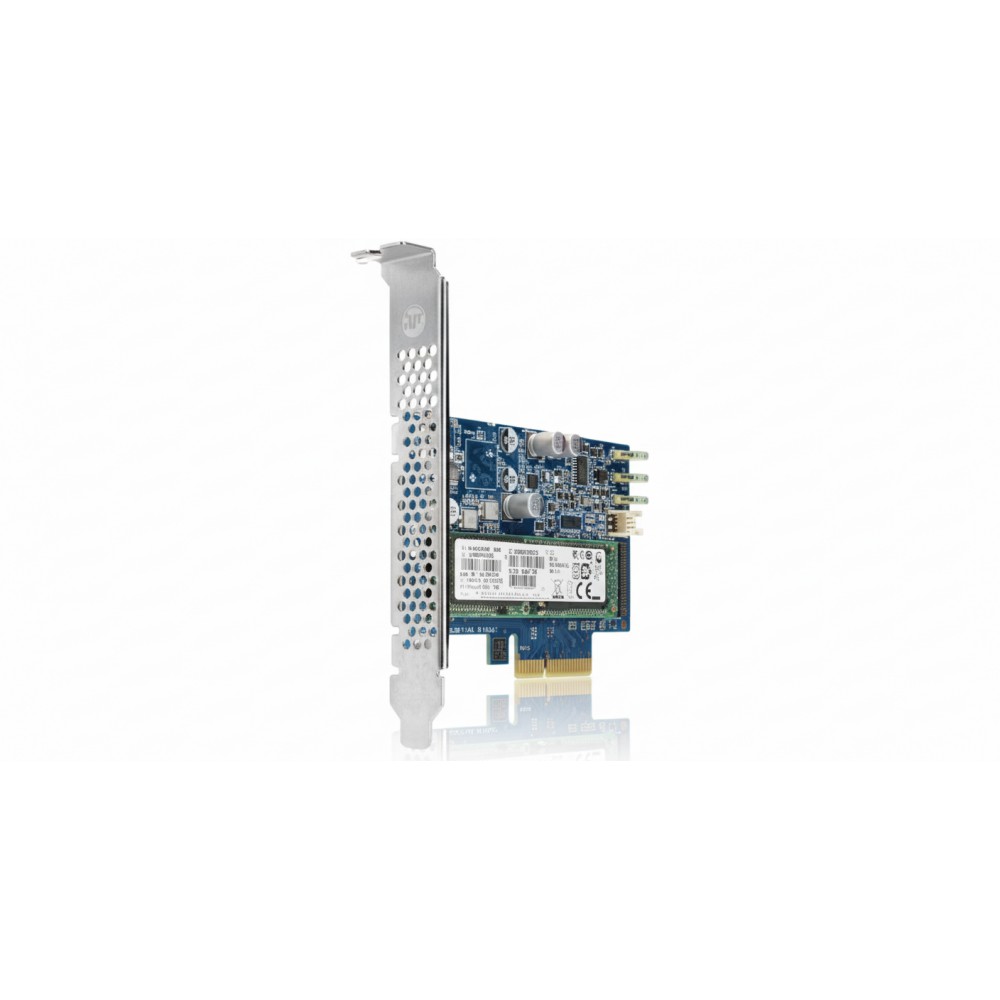

HP M1F74AT Solid State Drive 512 GB SSD

New

HP M1F74AT Inc. - Sb Workstation Options HP Z Turbo 512 GB Solid State Drive
×




  • New

Detailed Specifications

HP M1F74AT

Z Turbo Drive G2 512 GB PCIe NVMe SSD – Internal Plug-in Card

The HP M1F74AT Z Turbo Drive G2 is a 512 GB PCIe NVMe SSD in a half-height, half-length plug-in form factor, purpose-built for HP Z-series workstations. With multi-gigabyte/sec performance and high endurance, it’s optimized for professionals working with large datasets, 4K video, 3D modeling, and fast-paced design environments.

Features

This SSD features MLC NAND flash with a top-tier NVMe controller and PCIe 3.0 x4 interface, delivering solid sequential throughput—2 150 MB/s read and 1 550 MB/s write.

Advanced Options

It achieves a balance of blistering performance and durability. The form factor, built-in cooling, and compatibility with RAID setups make it ideal for integration into existing HP Z workstation configurations.

Product Key Features

  •  High-Performance PCIe NVMe: Utilizes PCIe 3.0 x4 for blazing speeds—read up to 2 150 MB/s, write up to 1 550 MB/s

  •  Enduring MLC NAND: 512 GB capacity with 292 TBTBW endurance, ideal for heavy usage

  •  Fast Random I/O: Supports up to 300K IOPS read and 100K IOPS write for demanding workflows

  •  Thermally Efficient Card: Half-height, half-length add-in card with cooling design to sustain performance

  •  Workstation Certified: Supports HP Z1 G3, Z440, Z640, and Z840 models

  •  Boot & Storage Ready: Functions as both OS boot drive and data drive; supports RAID via OS software

Reliability & Performance

Boasting 292 TBTBW endurance and MLC NAND, the drive withstands hefty workloads. Rated at ~300K random read and 100K random write IOPS, it ensures responsive multi-tasking and application performance. PCIe interface reduces latency vs SATA SSDs, while included thermal management sustains reliable speeds under stress. MTBF aligns with professional workstation expectations.

Key Features (Bullet List)

    • 512 GB capacity

    • PCIe 3.0 x4 NVMe interface

    • Sequential read: 2 150 MB/s; write: 1 550 MB/s

    • Random I/O: ~300K read, ~100K write (4 KB)

    • MLC NAND with 292 TBTBW endurance

    • Half-height, half-length plug-in card form factor

    • Certified for HP Z1 G3, Z440, Z640, Z840

    • Supports boot and RAID configurations

SpecificationDetails
Model Number M1F74AT
Product Type Internal PCIe NVMe SSD (Plug-in Card)
Capacity 512 GB
Interface PCIe 3.0 x4 NVMe
Form Factor Half-height, half-length PCIe add-in card
NAND Type Multi-Level Cell (MLC)
Sequential Read 2 150 MB/s (128 KB)
Sequential Write 1 550 MB/s (1 MB)
Random Read IOPS ~300K (4 KB)
Random Write IOPS ~100K (4 KB)
Endurance (TBW) 292 TB
Weight ~113 g (4 oz)
Operating Temp. 0 °C to 70 °C (32 °F to 158 °F)
Compatibility HP Z1 G3, Z440, Z640, Z840 Workstations
Warranty 1-Year Limited
