HP M1F73AT 256 GB Solid State Drive SSD

New

HP M1F73AT 256 GB Solid State Drive
×




  • New

Detailed Specifications

HP M1F73AT

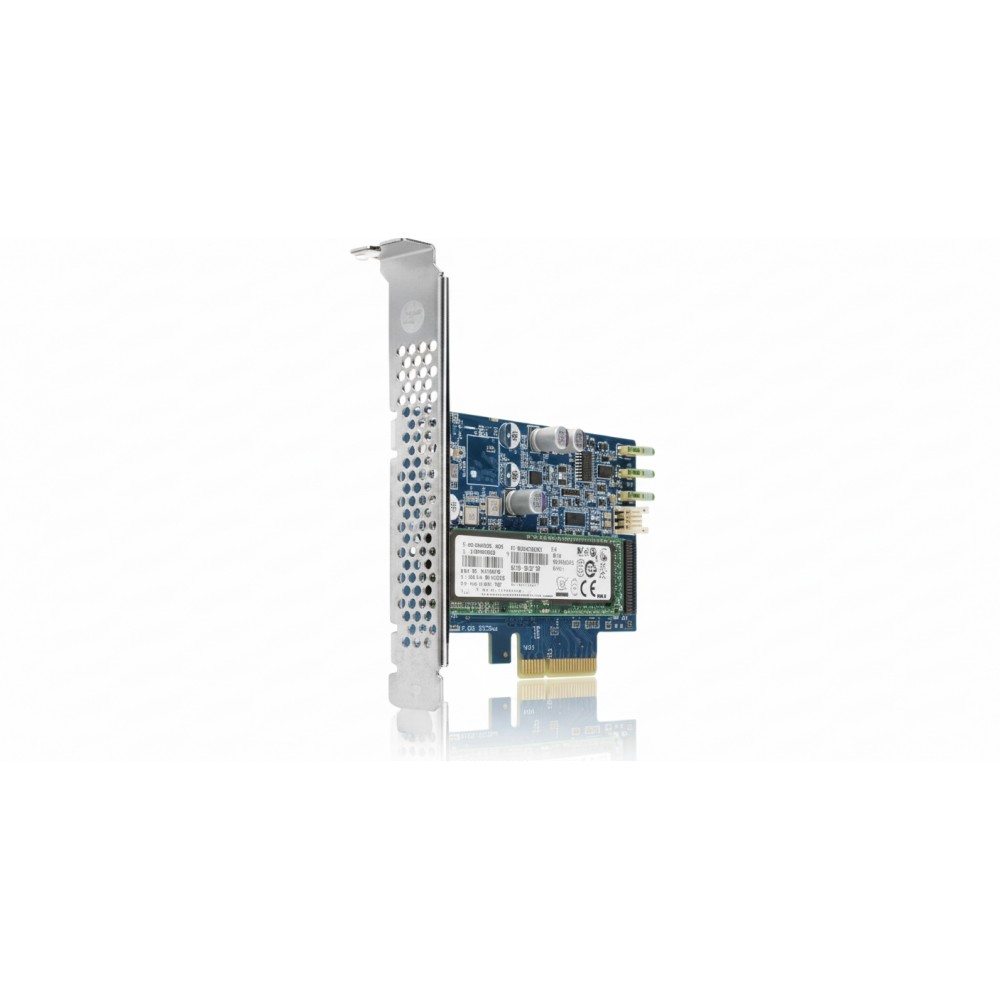

Z Turbo Drive G2 256 GB PCIe NVMe SSD – PCI Express x4 Plug-In Card for Workstations

The HP M1F73AT Z Turbo Drive G2 is a high-performance 256 GB PCIe NVMe SSD in a half-height/half-length plug-in card format,tailored for HP Z‑series workstations. It delivers far superior speed and responsiveness compared to SATA SSDs, ideal for designers, engineers, and content creators requiring fast storage for heavy workloads.

Features

This next‑generation Z Turbo Drive G2 utilizes Samsung MLC NAND with an NVMe controller on a PCIe 3.0 x4 interface. With 3+ GB/s sequential read and 1.4 GB/s write speeds.

Advanced Options

it accelerates boot, file transfer, and rendering times significantly The integrated thermal solution ensures it maintains high performance under heavy workstation workloads.

Product Key Features

  •  Blazing Performance: Delivers up to 3 200 MB/s sequential read and 1 400 MB/s write via PCIe 3.0 x4 NVMe

  •  Low Latency NVMe: Advanced NVMe controller ensures fast random I/O and system responsiveness

  •  MLC NAND Endurance: Rated for 150 TBW with MTBF of 1.5 million hours

  •  Custom Cooling Design: Half-height, half-length card with thermal solution keeps performance consistent

  •  Workstation‑Compatible: Designed for HP Z Series Z240, Z440, Z640, Z840 (requires BIOS v1.53+)

  •  Boot‑able & Scalable: Can serve as boot or data device; supports RAID configurations and OS NVMe drivers

Reliability & Performance

Built for enterprise-grade reliability, the M1F73AT includes error-correcting firmware, thermal management, and high endurance (150 TBW). With 1.5 million-hour MTBF, it ensures continuous operation in mission-critical environments. NVMe protocol with low latency boosts random IOPS—perfect for database, simulation, and media tasks

Key Features (Bullet List)

  • 256 GB capacity

  • PCIe 3.0 x4 NVMe interface

  • Sequential reads up to 3 200 MB/s; writes up to 1 400 MB/s

  • Random I/O up to 330 K IOPS (read); 280 K (write)

  • MLC NAND with 150 TBW endurance & 1.5 M hours MTBF

  • Half‑height, half‑length form factor with custom cooling

  • Designed for HP Z240/Z440/Z640/Z840 with BIOS support

  • Bootable and supports RAID setups via OS software

  • TRIM, S.M.A.R.T., NVMe compliance

SpecificationDetails
Model Number M1F73AT (Z Turbo Drive G2)
Product Type Internal PCIe NVMe SSD (Plug-In Card)
Capacity 256 GB
Interface PCIe 3.0 x4 NVMe
Form Factor Half-height, half-length PCIe card
NAND Type 3D MLC
Sequential Read Up to 3 200 MB/s (128 KB)
Sequential Write Up to 1 400 MB/s (1 MB)
Random Read IOPS ~330 K (4 KB)
Random Write IOPS ~280 K (4 KB)
Endurance (TBW) 150 TBW
MTBF 1.5 million hours
Operating Temperature 32°F to 158°F (0°C to 70°C)
