HPE P24840-B21 ProLiant Gen10 Server

New

HPE P24840-B21 Intel Xeon Silver Server
×




  • New

Detailed Specifications

HPE P24840-B21

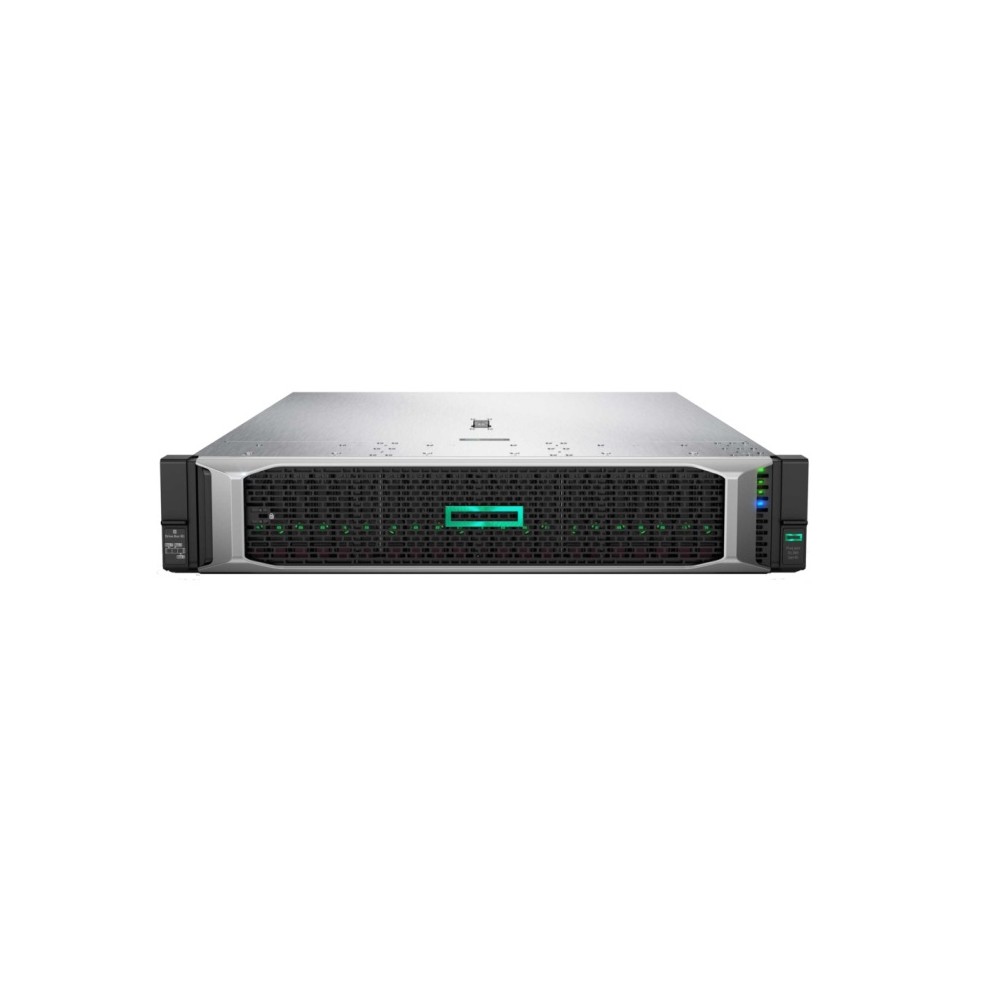

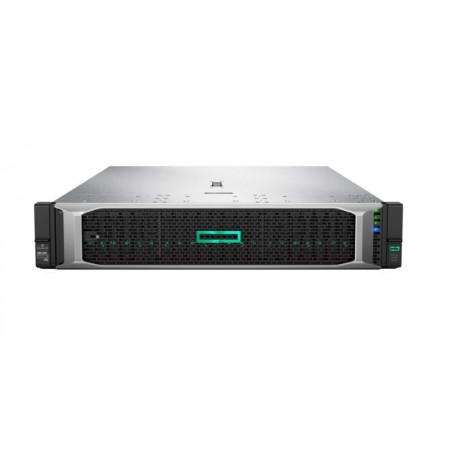

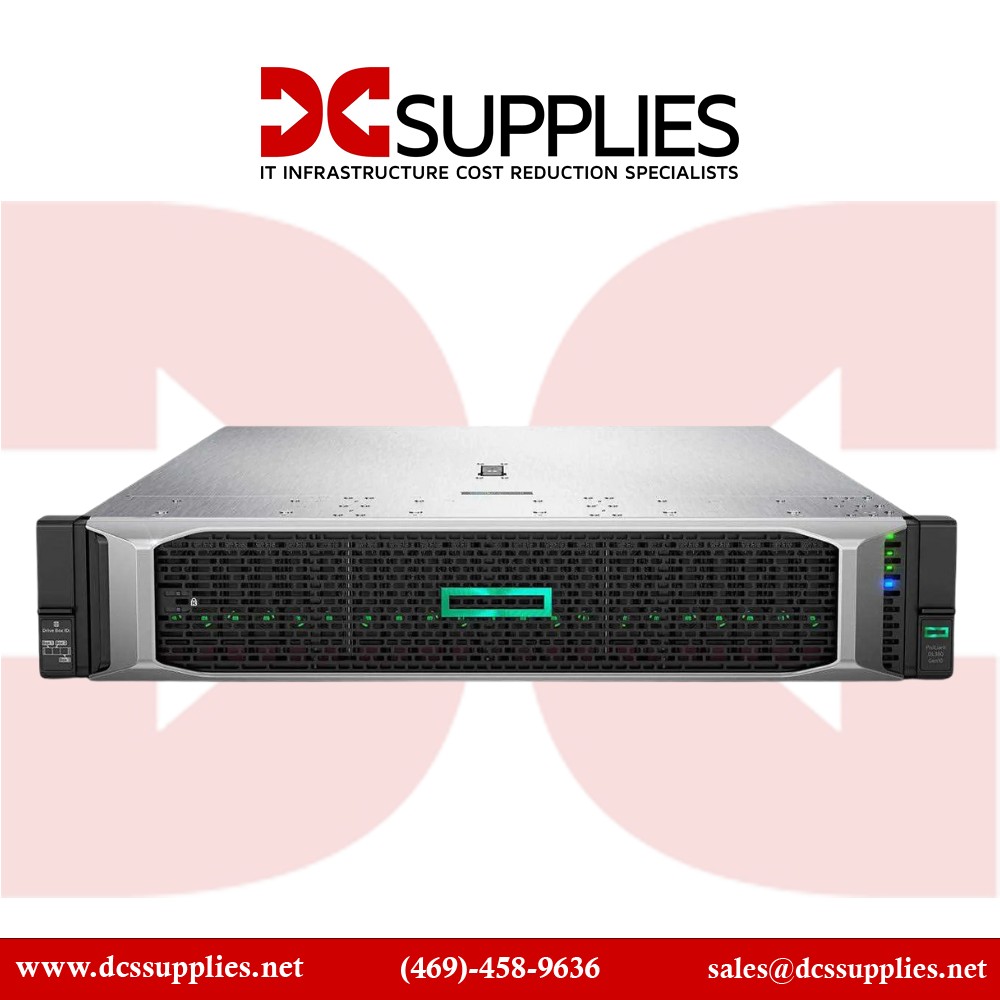

ProLiant DL380 Gen10 Server – Model P24840‑B21 (Intel Xeon Silver 4210R, 32 GB, 24 × SFF, P408i-a RAID)

The HPE ProLiant DL380 Gen10 P24840‑B21 is a versatile 2U rackmount server powered by an Intel Xeon Silver 4210R processor and equipped with 32 GB RAM and a P408i‑a RAID controller. With extensive storage capacity (24 hot-swappable SFF bays) and enterprise-class networking,

Features

it’s ideal for SMB to enterprise uses: virtualization, databases, web hosting, and more Built on HPE’s trusted ProLiant platform, this DL380 Gen10 leverages second-generation Intel Xeon Scalable architecture for improved efficiency and performance. Its compact chassis supports dense storage.

Advanced Options

configurations and up to 20 NVMe drives or optional rear expansion, ensuring high throughput and adaptability. Integrated iLO 5 offers out-of-band management, firmware updates, and resource monitoring for seamless deployment across datacenters or edge sites.

Product Key Features

    •  Intel Xeon Silver 4210R 10-core (2.4 GHz, Turbo up to 3.2 GHz) CPU

    •  32 GB DDR4 ECC Registered RDIMM (1 × 32 GB, expandable to 3 TB)

    • 24 × 2.5″ SFF hot-plug bays, expandable with rear bays or NVMe modules

    •  P408i‑a Smart Array Controller with 2 GB cache, supporting 12 Gb/s SAS and RAID 0/1/5/6/10/50/60

    •  4‑port Intel I350-T4V2 Gigabit NIC, plus optional standup NIC slots

    •  800 W Platinum hot-plug PSU, redundant-capable chassis

    •  HPE iLO 5 remote management, integrated SmartArray, and high security

    •  Modular PCIe Gen3 slots (3 installed; supports expansion in 2P)

    •  2U rackmount SFF chassis with easy-install rails & cable arm

Reliability & Performance

The server includes ECC memory protection, hot-plug components, and an 800 W Platinum PSU ready to run in redundant mode. With support for optional NVIDIA Tesla T4 GPUs or persistent memory, plus advanced cooling and modular IO, it addresses diverse workloads from virtualization to data analytics. Features like silicon root-of-trust and iLO security hardening bolster platform integrity.

Key Features :

  • Intel Xeon Silver 4210R (10C, 2.4 GHz base, 3.2 GHz max)

  • 32 GB DDR4 ECC RDIMM (1 slot used; supports up to 3 TB)

  • 24 × 2.5″ SFF hot-plug bays; expandable with additional modules

  • HPE Smart Array P408i‑a RAID controller (2 GB cache; 12 Gb/s SAS)

  • 4× Gigabit Ethernet via Intel I350 NIC; additional LAN options available

  • 800 W Platinum hot-swap PSU; redundancy ready

  • 3× PCIe Gen3 slots installed; support for up to 8 slots in dual-CPU config

  • HPE iLO 5 management with advanced security capabilities

SpecificationDetails
Model Number P24840‑B21
Product Type 2U Rackmount Server
Processor Intel Xeon Silver 4210R – 10 cores, 2.4 GHz (3.2 GHz Turbo)
Memory 32 GB DDR4 ECC Registered RDIMM (supports up to 3 TB across 24 slots)
Storage Bays 24× 2.5″ SFF hot-plug; plus support for NVMe and rear bay expansion
RAID Controller HPE SmartArray P408i‑a, 2 GB cache, 12 Gb/s SAS
Networking Intel I350-T4V2 – 4× 1 GbE; optional 10/25 GbE available
Power Supply 800 W Platinum hot-plug (redundant-capable)
Expansion Slots 3× installed PCIe Gen3; up to 8 slots in 2P configuration
Management HPE iLO 5 (embedded), Intelligent Provisioning
Security Secure Boot, TPM support, silicon root-of-trust
Dimensions (H × W × D) ~3.4″ × 17.5″ × 26.7″ (2U rack width)
Weight ~43 lb (19.5 kg)
Operating Temp 0 °C to 40 °C (standard datacenter)
Power Input Voltage 90–264 VAC
