HPE P24845-B21 Proliant D Gen10 5222 1P 32GB RAM 2U Server View larger
Previous Next

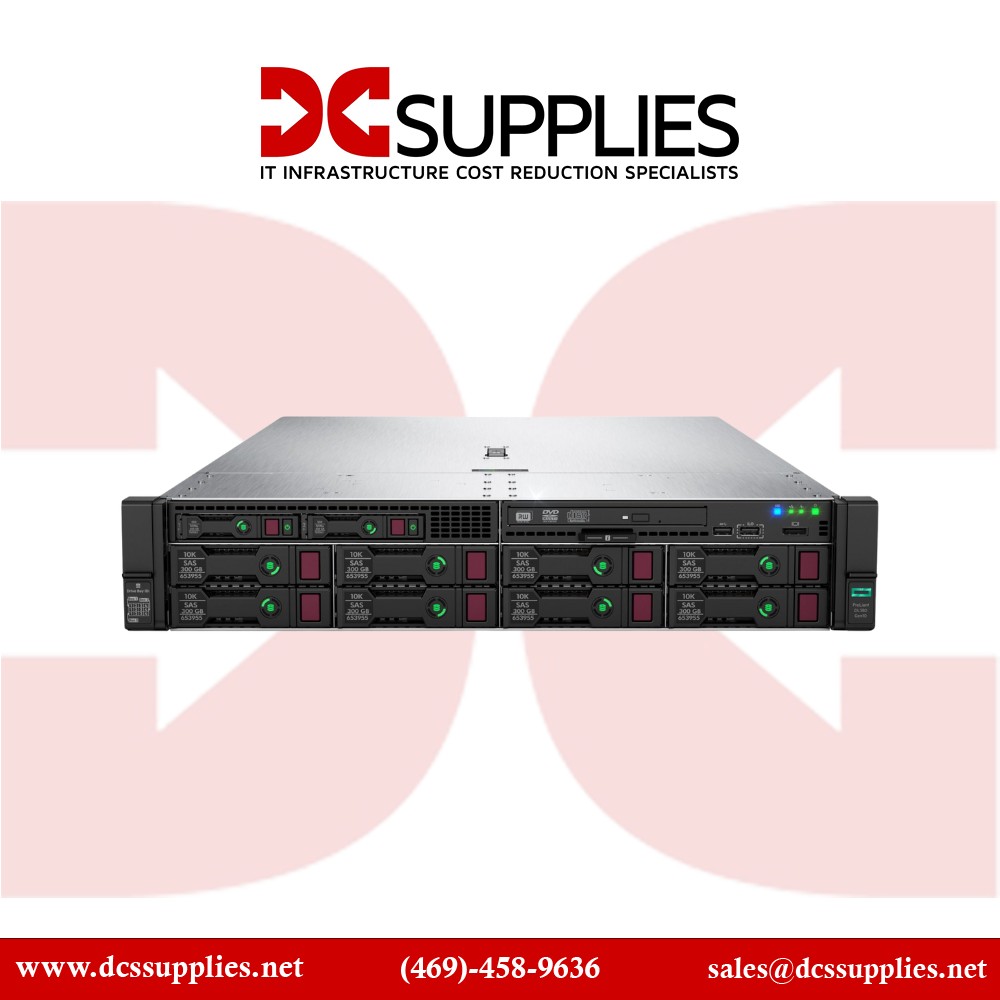

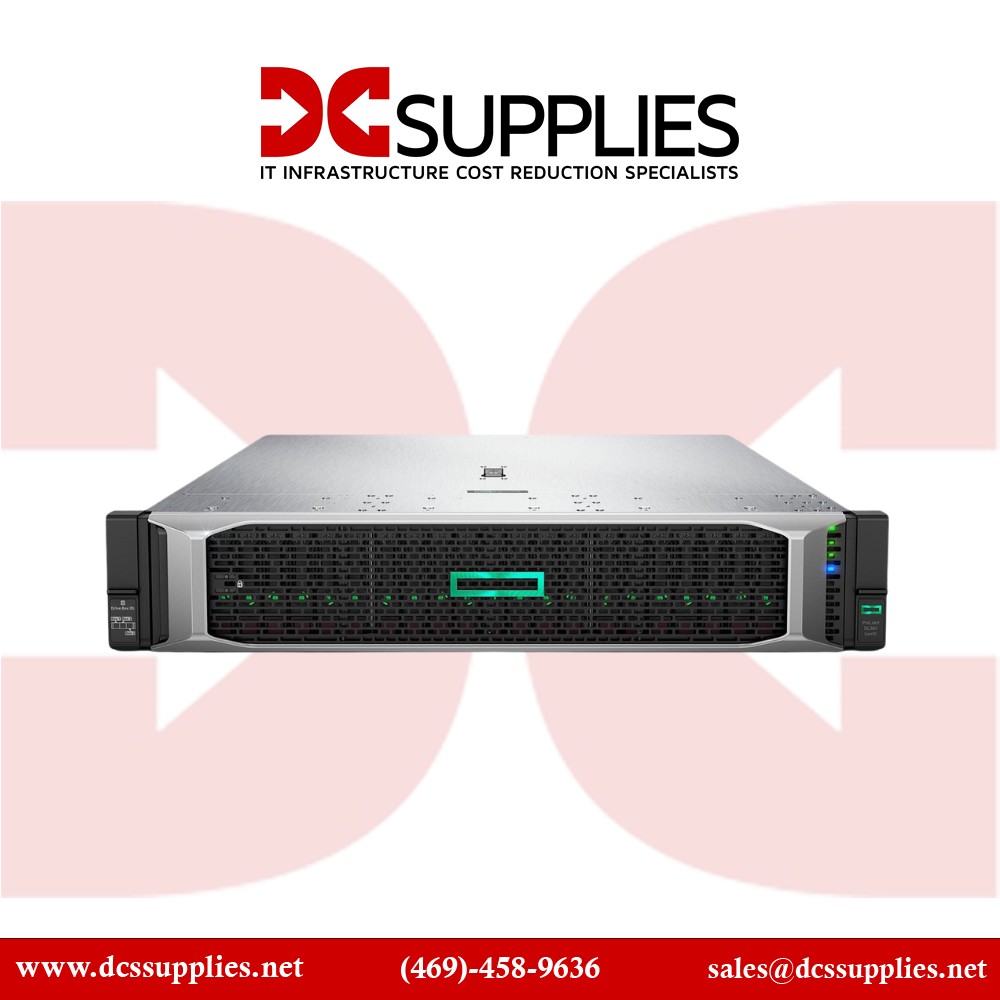

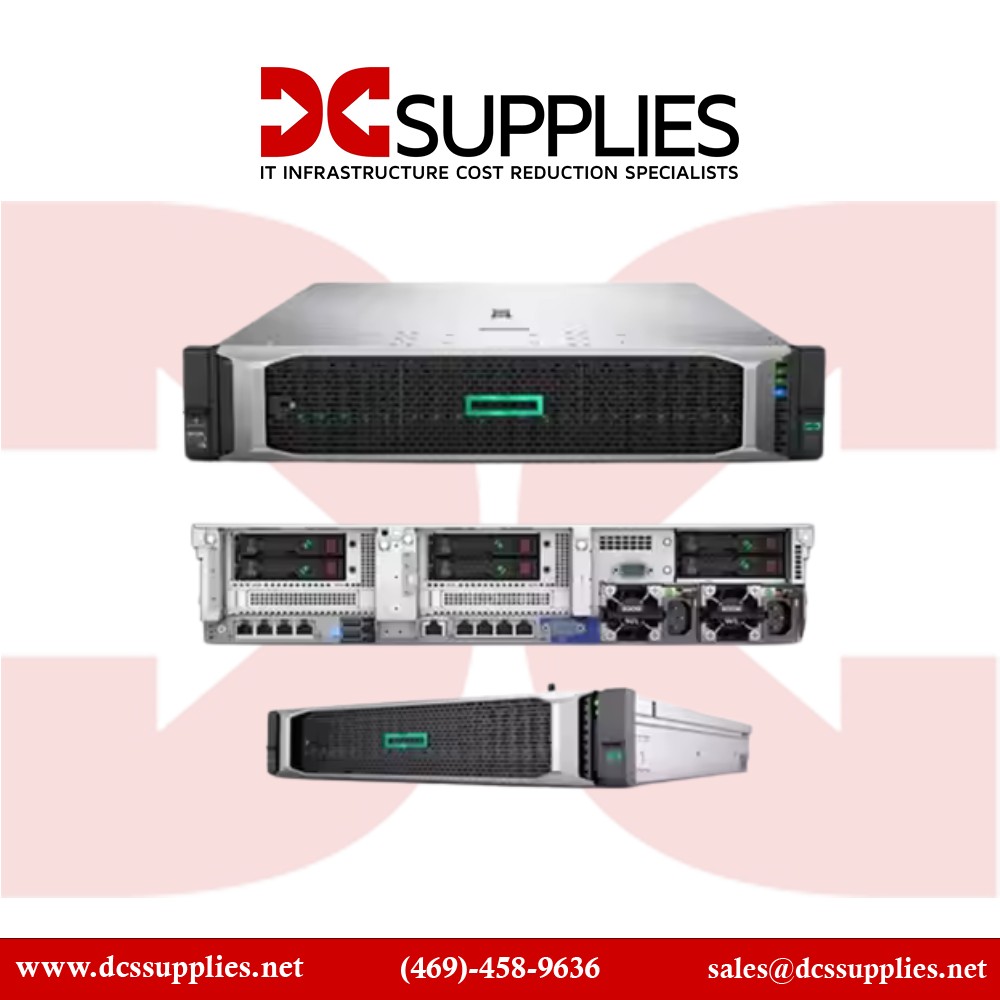

HPE P24845-B21 Proliant D Gen10 5222 1P 32GB RAM 2U Server

New

HPE  P24845-B21 Proliant D Gen10 5222 1P 32GB RAM 2U Server
×




  • New

Detailed Specifications

HPE P24845-B21

ProLiant DL380 Gen10 5222 – 1P, 32 GB, 2U Rack Server (P24845‑B21)

The HPE DL380 Gen10 (P24845‑B21) is a robust and scalable 2U rack server ideal for enterprise workloads. With a high-frequency quad-core Xeon Gold CPU, gigabit to 10 GbE networking, and flexible storage options, it suits virtualization, databases, HPC, and structured data applications.

Features

Built around the Intel Xeon Gold 5222 processor (4 cores @ 3.8 GHz, 16.5 MB L3), this entry-tier DL380 model delivers excellent performance for compute-intensive and latency-sensitive workloads.

Advanced Options

The 8-bay SFF chassis supports SATA/SAS with the embedded S100i controller, expandable to NVMe setups. Networking flexibility is provided by a FlexibleLOM slot, preconfigured with a dual 10 GbE SFP+ X710 adapter.

Product Key Features

  •  Intel Xeon Gold 5222 (4-core, 3.8 GHz, 105 W) — high-frequency, strong per-core performance

  •  32 GB DDR4 ECC RAM (1×32 GB, 2933 MT/s) expandable across 24 DIMM slots

  •  8× hot-plug SFF drive bays, plus M.2/NVMe options, powered by Smart Array S100i

  •  Flexible networking via FlexibleLOM: includes 10 GbE via X710-DA2 card

  •  3× PCIe slots, support for GPUs, HBAs, or additional NICs

  • HPE iLO 5, Security Dashboard & Trusted Supply Chain for enhanced firmware safeguards

Reliability & Performance

Backed by iLO 5 management features—such as firmware secure boot, root-of-trust, and supply-chain validation—the server ensures strong infrastructure security . Its dual-processor-capable chassis and 24 DIMM slots support future scaling. Thermal design includes front-to-back airflow, optional high-performance fans, and redundant power supply capability. The 800 W Flex PSU ensures reliable uptime .

Key Features :

  • Intel Xeon Gold 5222 (4C/8T, 3.8 GHz)

  • 32 GB DDR4 ECC (1×32 GB; up to 3 TB)

  • 8× SFF hot-plug bays; optional M.2 / NVMe

  • FlexibleLOM with dual 10 GbE X710-DA2 adapter

  • HPE iLO 5 with Trusted Supply Chain security

  • Embedded Smart Array S100i; optional Smart Array controllers

  • 3 PCIe slots; support for GPUs and expansion cards

  • 800 W hot-plug PSU, Front-to-back airflow

SpecificationDetails
Model Number P24845‑B21
Form Factor 2U Rackmount
CPU Intel Xeon Gold 5222 (4-core, 3.8 GHz, 105 W)
Memory 32 GB DDR4 ECC (1×32 GB @ 2933 MT/s); 24 slots, up to 3 TB
Storage Bays 8× SFF hot-plug (SATA/SAS); M.2 & NVMe optional
RAID Controller Embedded HPE Smart Array S100i (RAID 0, 1, 5, 10)
Networking Dual-port 10 GbE SFP+ (X710-DA2 via FlexibleLOM)
Expansion Slots 3× PCIe (x8, x16, x8)
Management HPE iLO 5, Trusted Supply Chain, Intelligent Provisioning
Power Supply 800 W Flex Slot, hot-plug
Dimensions ~3.4″H × 17.5″W × 26.7″D
