APC AR3350 NetShelter SX 42U Server Rack Enclosure Black View larger

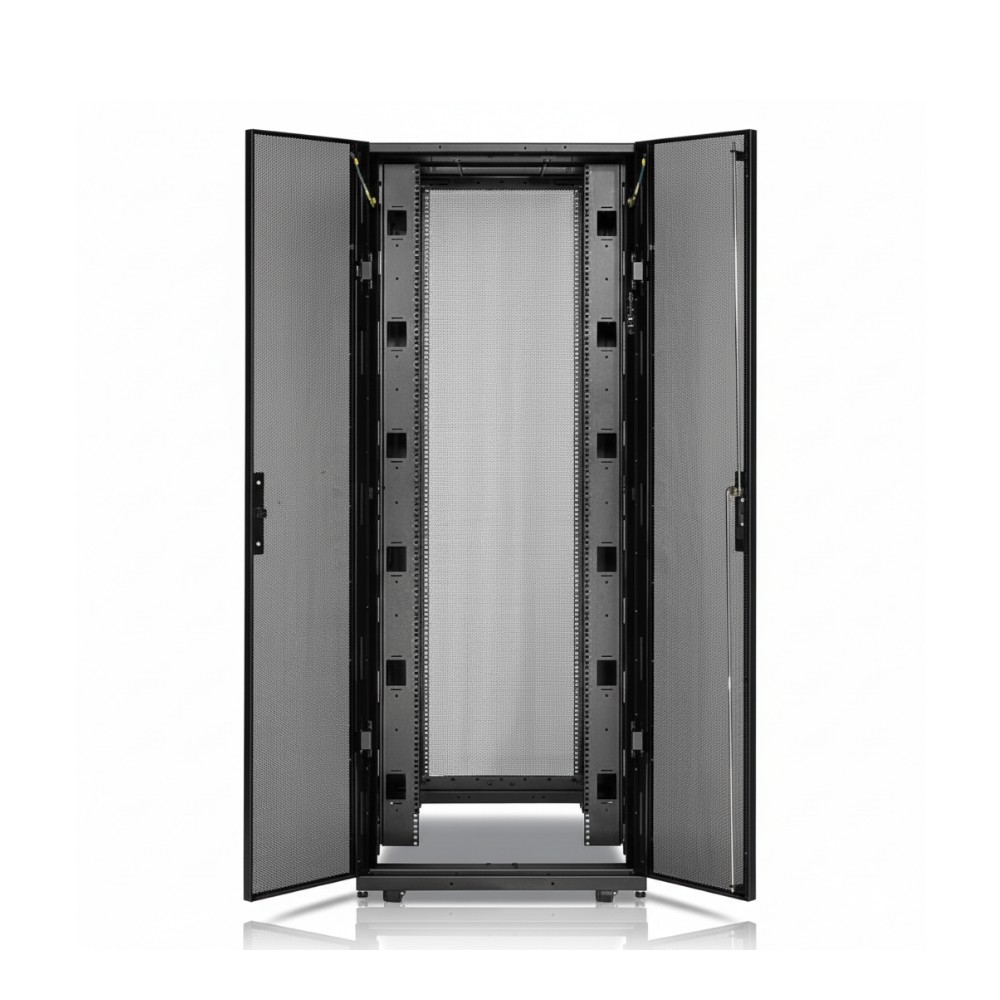

APC AR3350 NetShelter SX 42U Server Rack Enclosure Black

New

In Stock

42U 750×1200 mm perforated rack enclosure
×




$3,289.00

  • New

Detailed Specifications

APC AR3350 – NetShelter SX 42U 750×1200 mm Rack Enclosure

Overview

The APC AR3350 is a 42U enclosed server rack (NetShelter SX series) built for demanding IT deployments where high density, cooling, and cable management matter. It features adjustable front-to-rear rail depths, perforated front and rear doors for airflow, and a static load rating up to 3,000 lb (≈ 1,363 kg). It fits into standard data center and co-location footprints and is designed to integrate with APC power, cooling, and cable management gear. It remains a reference for retrofit, expansion, or replacement in existing NetShelter infrastructures.

Key Features (exactly 4 bullets)

  • Perforated front & rear doors (~72% open area) promote high airflow for high-density equipment

  • Adjustable mounting rails support a wide range of depths for equipment and PDUs

  • 3,000 lb static / 2,250 lb dynamic load rating ensures structural integrity under full load

  • Baying capability and integrated grounding points ease alignment and grounding in multi-rack deployments

Technical Specifications

SpecificationDetail
Brand APC (Schneider Electric)
Part Number AR3350
Product Type Rack Enclosure / Server Cabinet
Rack Height 42U (≈ 1,991 mm / 78.4 in)
External Dimensions (W×D) 750 mm × 1,200 mm (≈ 29.53 in × 47.24 in)
Net Weight 161.36 kg (≈ 355.74 lb)
Static Load Rating 3,000 lb (≈1,363 kg)
Dynamic / Rolling Load 2,250 lb (≈1,022 kg)
Rail Depth (adjustable) Minimum 262 mm to maximum ~1,048 mm (10.31 in to 41.26 in)
