APC AR3150 NetShelter SX 42U Server Rack Enclosure Black View larger

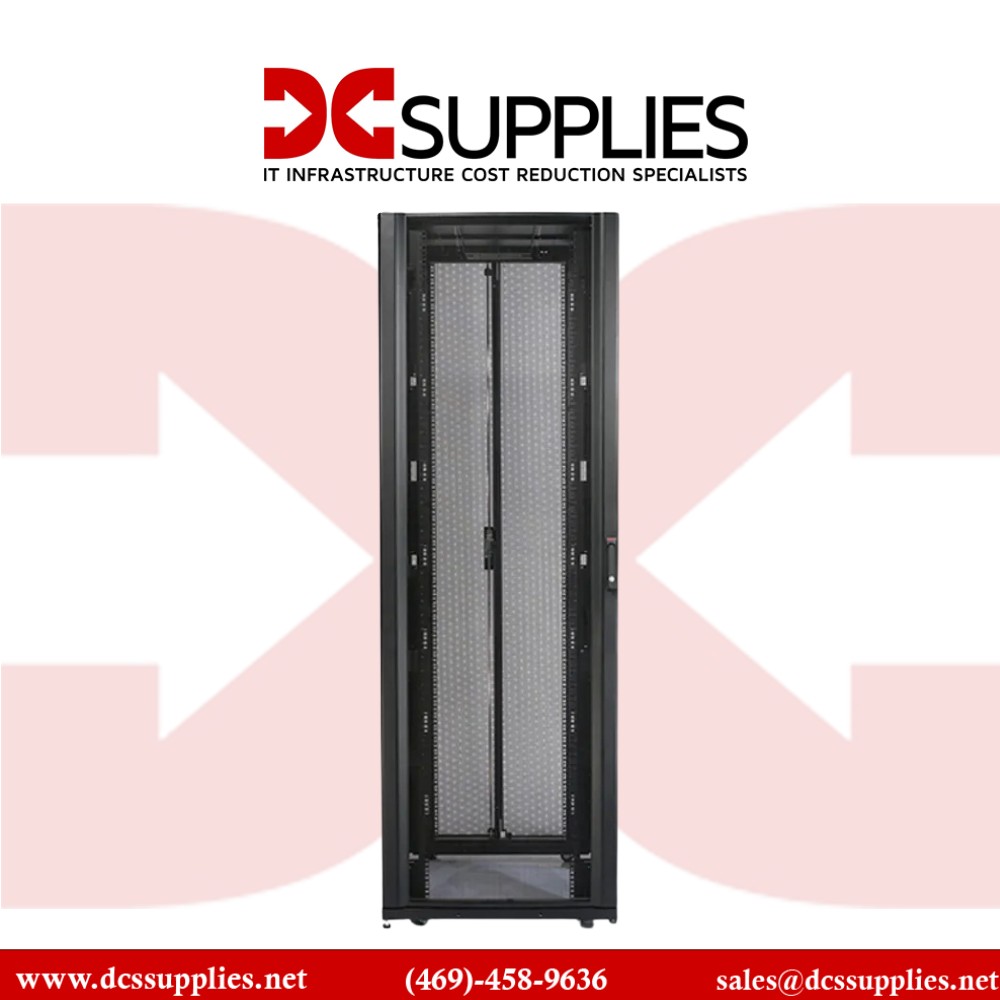

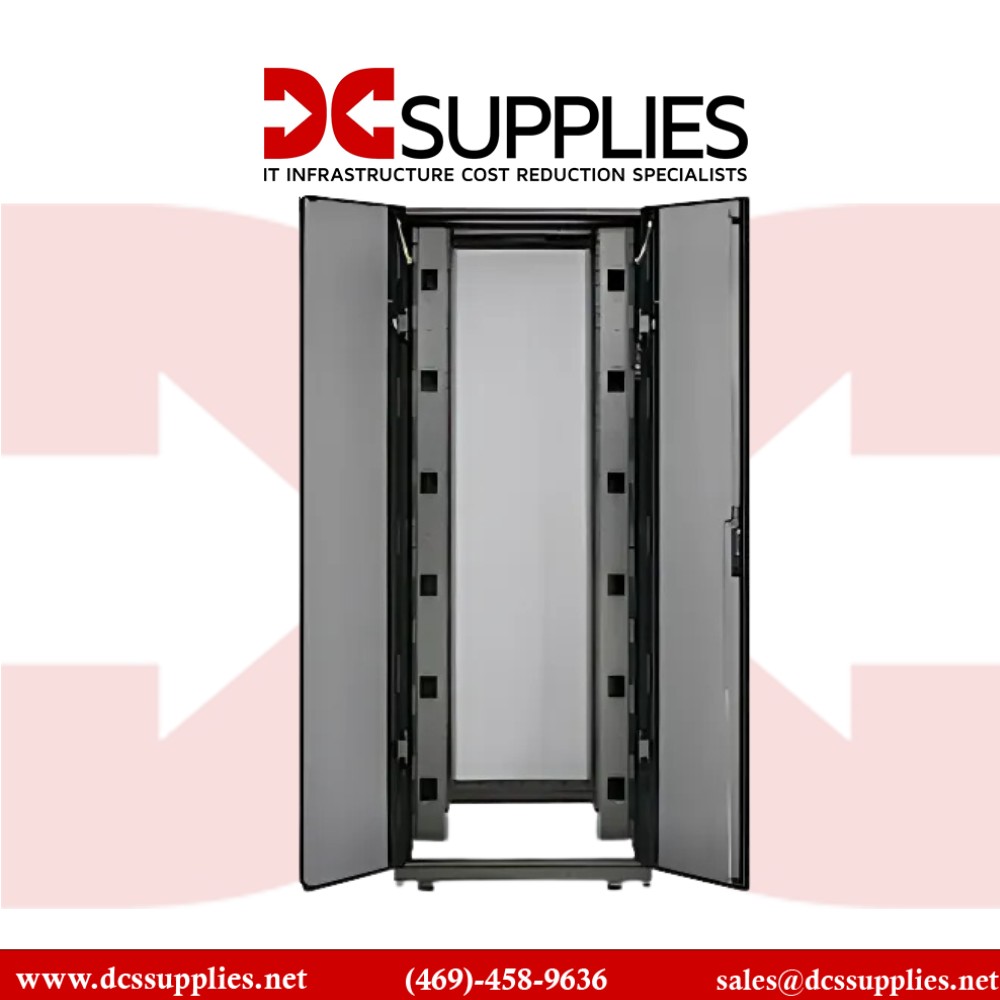

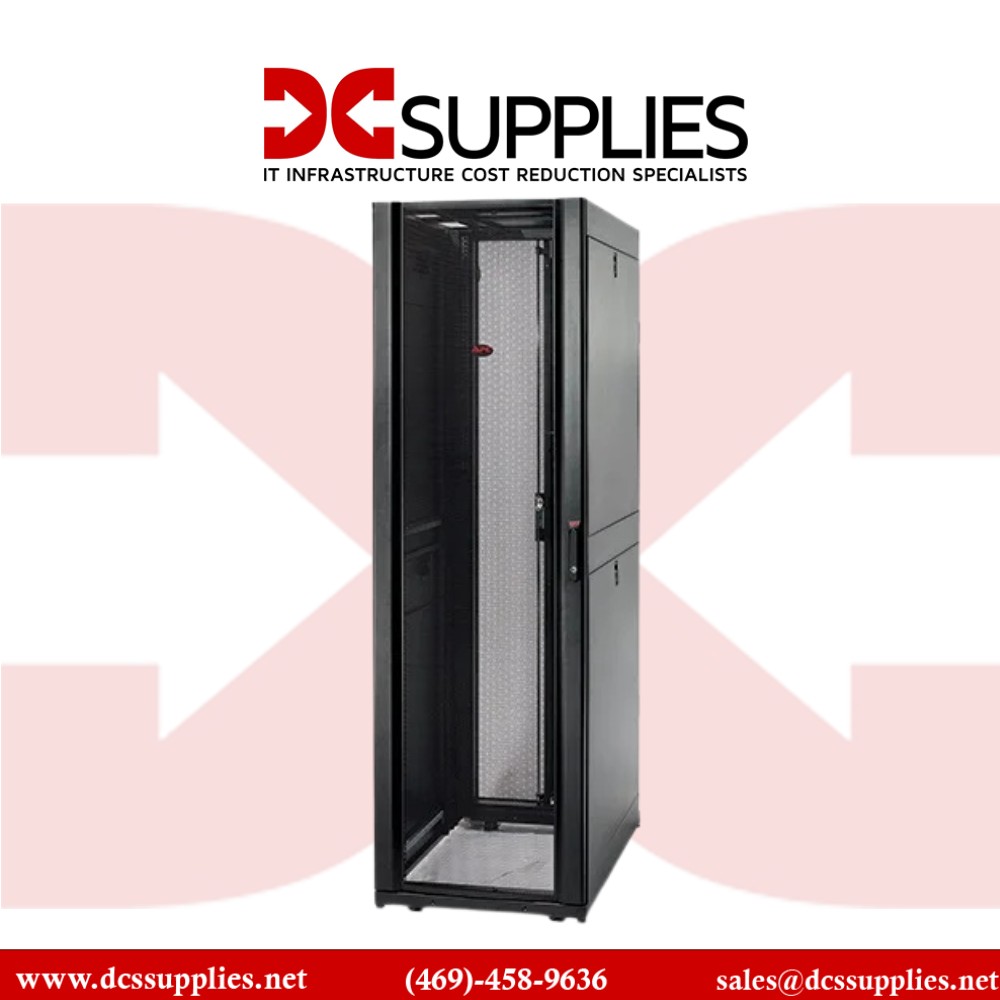

APC AR3150 NetShelter SX 42U Server Rack Enclosure Black

New

42U APC AR3150 NetShelter SX server rack for secure IT equipment housing
×




  • New

Detailed Specifications

APC

AR3150

 NetShelter SX 42U Server Rack Enclosure, Black (750 × 1070 mm)

The APC AR3150 NetShelter SX is a premium 42U server rack enclosure tailored for enterprise data centers, co‑location facilities, and demanding IT environments. It delivers exceptional airflow, robust cable management, and secure access to safeguard and optimize your critical infrastructure.

Features

Designed for IT managers, network engineers, and data center professionals, this enclosure streamlines deployment and maintenance of servers, switches, PDUs, and high-density storage setups—ensuring reliability and operational efficiency.

Advanced Options

Enhanced airflow stems from its 80% perforated doors and optional fan trays, while integrated cable troughs and zero‑U rear channels ensure structured wiring. Pre‑installed casters and leveling feet simplify installation and reconfiguration.

Product Key Features

  •  42U, 750 mm Wide, 1070 mm Deep for high-density server/network deployments

  •  Lockable Front & Rear Doors (front curved, rear flat) with 270° reversible swing

  •  80% Perforated Door Panels optimize airflow for cooling efficiency

  •  Integrated Cable Management & Roof Access Troughs

  •  Heavy-Duty Steel Frame supports up to 1 704 kg static load

  •  Pre‑installed Casters & Leveling Feet for easy relocation and stability

Reliability & Performance

Built to industrial standards with UL‑2416 and UL‑60950‑1 certifications, the AR3150 is engineered for long service life. The grounded chassis, keyed‑alike locking, and durable finish maintain structural integrity and security. Cable and airflow features support high-density, hot-swap server environments, optimizing cooling and uptime.

Key Features (Bullet List)

  • 42U, 750 mm (W) × 1070 mm (D) enclosure

  • Lockable, reversible front (curved) and rear (flat) doors

  • Half‑height, lockable side panels

  • 14‑gauge EIA vertical mounting rails

  • Pre‑installed casters and leveling feet

  • Integrated cable troughs and zero‑U rear channels

  • Heavy‑duty steel construction (14–18 gauge)

  • Supports 1 704 kg static / 1 023 kg dynamic loads

  • 5 roof cable entry ports and grounding studs

  • Compliance: UL‑2416, UL‑60950‑1, EIA‑310E, RoHS, REACH

Specifications :

SpecificationDetails
Model Number AR3150
Type Freestanding Server Rack Enclosure
Rack Units (U) 42U
External Dimensions 1991 × 750 × 1070 mm (78.39″ × 29.53″ × 42.13″)
Net Weight ~155.9 kg (343 lb)
Static Load Capacity 1 704 kg (3 760 lb)
Dynamic Load 1 023 kg (2 250 lb)
Mounting Rails 14‑gauge EIA‑310, adjustable 285–915 mm depth
Doors Front curved & rear flat, reversible, 270° swing, lockable
Side Panels Split‑panel, lockable
Roof Cable Ports 5 entry points
Standards Compliance UL‑2416, UL‑60950‑1, EIA‑310E, RoHS, REACH
