APC AR3100 NetShelter SX 42U Server Rack Enclosure, Black View larger
Previous Next

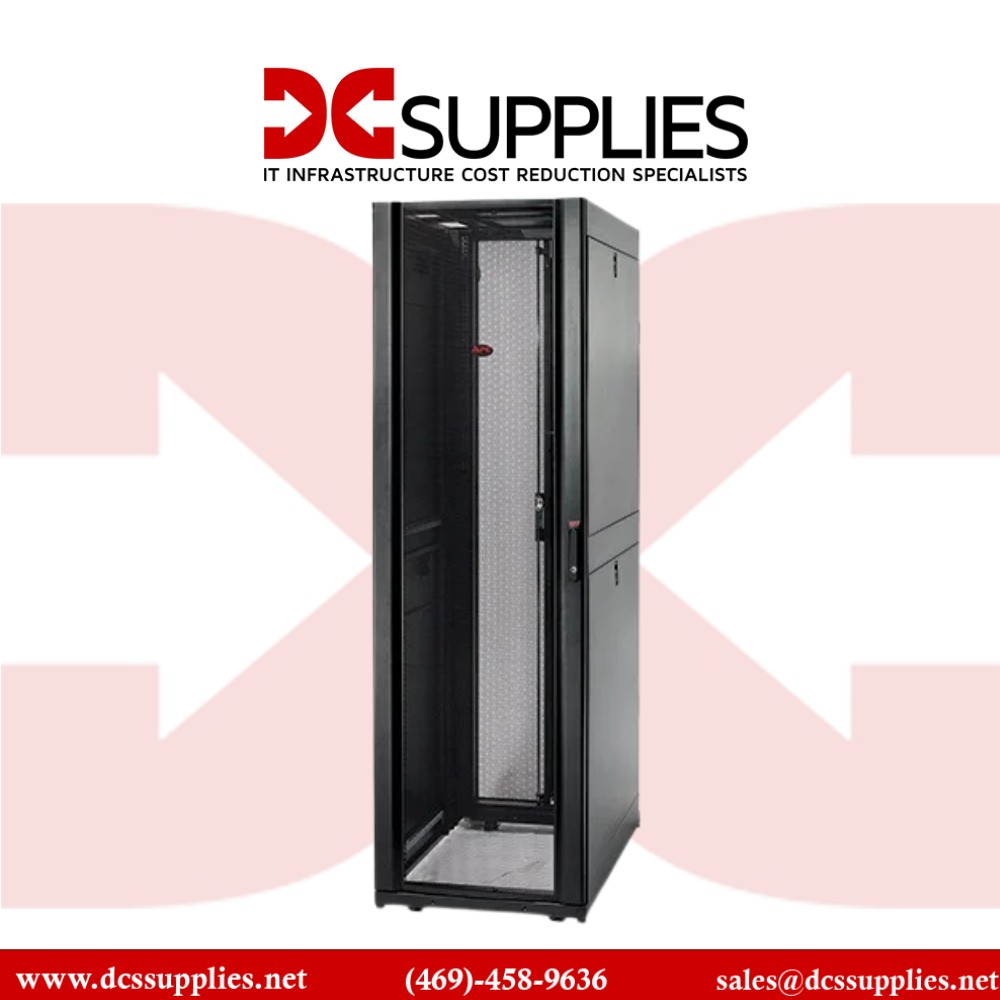

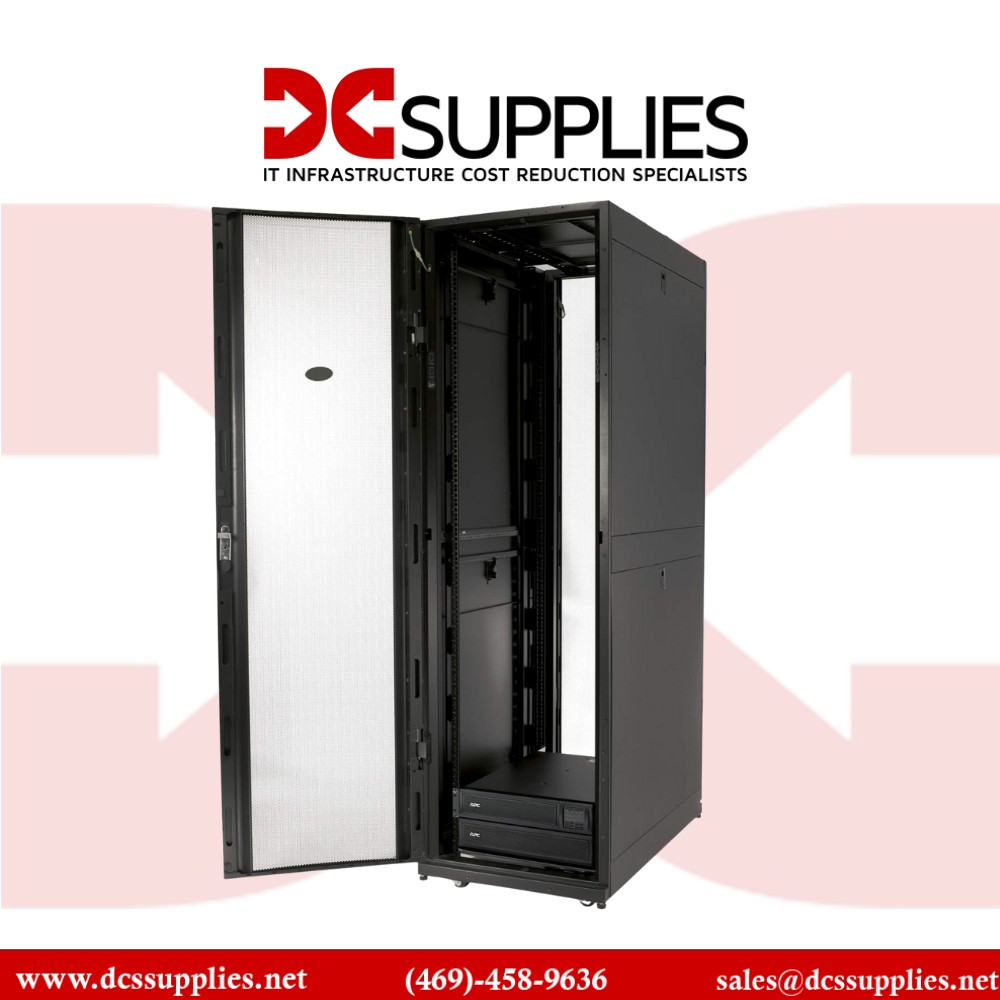

APC AR3100 NetShelter SX 42U Server Rack Enclosure, Black

New

42U black server rack enclosure for secure and efficient IT equipment housing.
×




  • New

Detailed Specifications

APC

AR3100

NetShelter SX 42U Server Rack Enclosure, Black (600 × 1070 mm)

The APC AR3100 NetShelter SX 42U is a robust server rack enclosure engineered for demanding IT environments. With versatile mounting options, heavy load capacity, and enhanced airflow, it’s ideal for data centers, network closets, and enterprise-grade installations.

Features

This 42U enclosure spans 78.4 in × 23.6 in × 42.1 in (1991 × 600 × 1070 mm), with adjustable EIA rails accommodating depths from 7.5″ to 36″  The sturdy 14‑gauge mounting rails, 16‑gauge front door, and 18‑gauge panels ensure rigidity while easing installation.

Advanced Options

Cable management is enhanced with pre-installed brush strips in the roof and bottom, plus zero‑U mount points for PDUs and clean wire routing. The quick‑release, reversible doors and side panels with keyed-alike locks provide maintenance convenience and security

Product Key Features

  •  Heavy-duty steel construction for enterprise-grade durability

  •  42U, 19″ rack width fits standard servers and network gear

  •  High load capacity: up to 2,254 lb (dynamic) / 3,006 lb (static)

  •  Adjustable mounting rails and tool-less installation

  •  Quick-release front/rear doors & side panels with keyed security

  •  Full airflow design with perforated doors and cable management

Reliability & Performance

Engineered for high‑density server loads, the AR3100 supports up to 2,254 lb rolling and 3,006 lb stationary load—beyond typical server rack needs . Heavy-duty casters and leveling feet allow full mobility and stable mounting. Steel construction meets UL 60950 and EIA‑310‑E standards, and it's RoHS/REACH compliant.Electrical grounding is integrated across panels and frame, with extra inserts for bonding  The enclosure is also optimized for airflow through perforated doors and multiple mounting configurations.

Key Features (Bullet List)

  • Steel rack with 42U height and 19″ width

  • Adjustable mounting rails (7.5″–36″ depth)

  • Heavy-duty casters & leveling feet included

  • Static capacity: 3,006 lb; Dynamic capacity: 2,254 lb

  • Removable, reversible, secured doors & side panels

  • Integrated cable management and grounding

  • RoHS, UL, EIA‑310 compliance

Specifications :

SpecificationDetails
Model Number AR3100
Type Server Rack Enclosure
Rack Units (U) 42U
Rack Width 19 inches (standard)
Dimensions (HxWxD) 78.39" x 23.62" x 42.13" (1991 x 600 x 1070 mm)
Weight (Net) 273 lbs (124 kg)
Color Black
Load Capacity (Static) 3,000 lbs (1363 kg)
Material Steel frame, perforated metal doors
Locking Mechanism Keyed front, rear, and side panels
Cable Management Yes, integrated vertical cable channels
Cooling Support Perforated front/rear, optional fans
