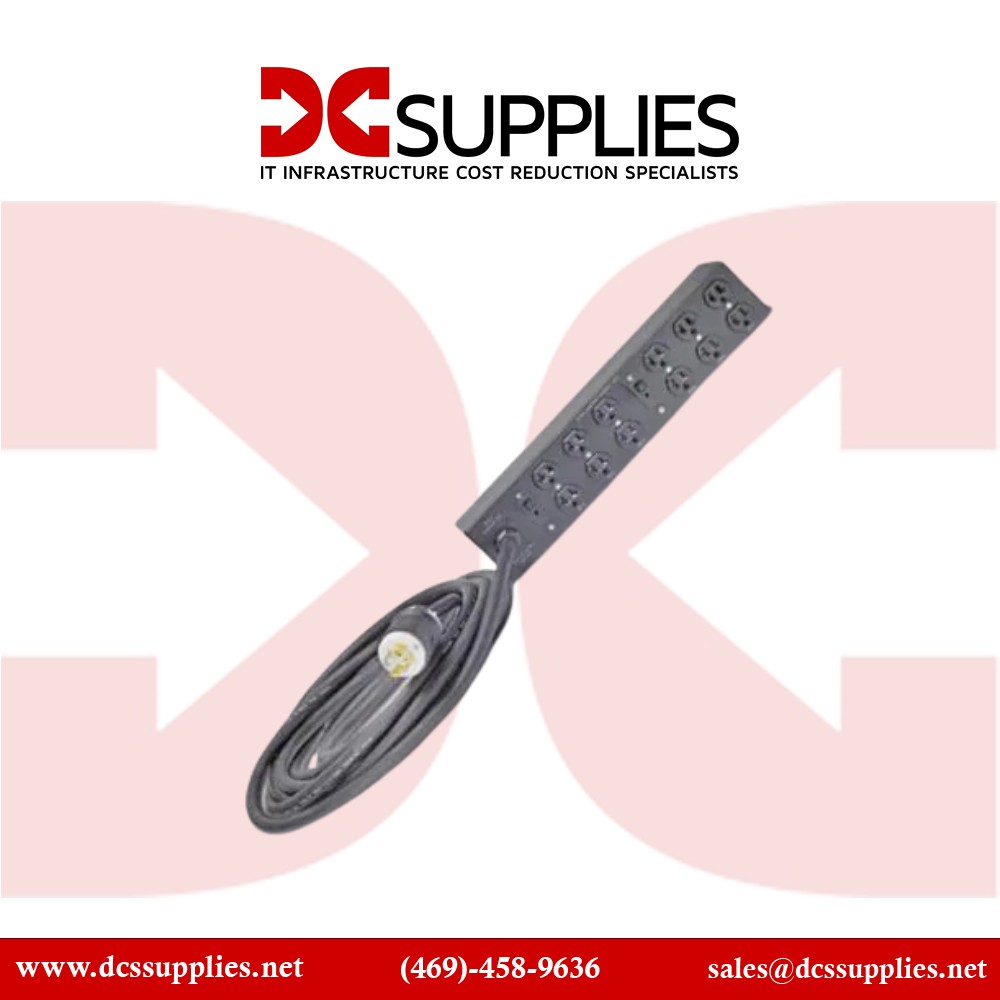

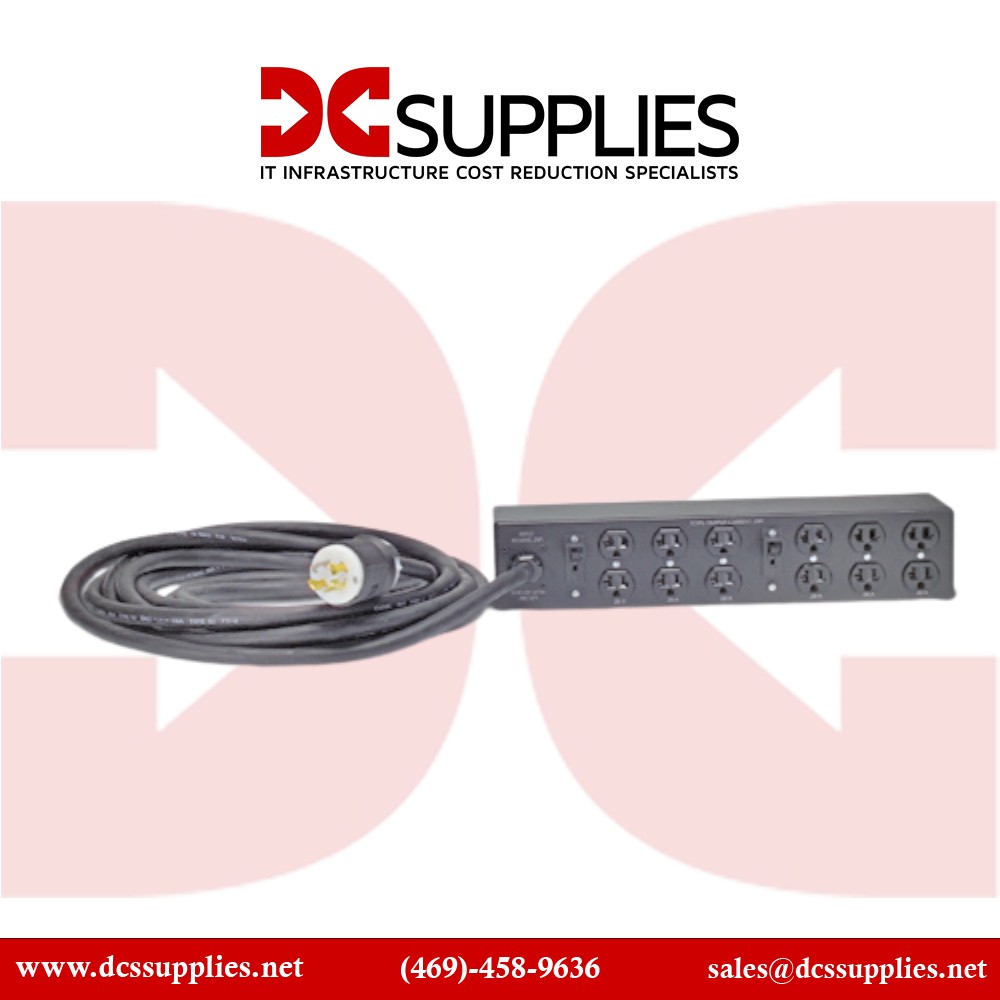

APC AP7581 Horizontal Rack PDU Extender Basic - 2U 30A (4) L6-20R and 208V Out View larger

APC AP7581 Horizontal Rack PDU Extender Basic - 2U 30A (4) L6-20R and 208V Out

New

In Stock

APC AP7581 Basic 2U Rack PDU Extender with 4 NEMA L6-20 outlets 30A 200 208V
×




$599.90

  • New

Detailed Specifications

APC

AP7581

Horizontal Rack PDU Extender Basic – 2U 30 A 200/208 V (4 × NEMA L6‑20R)

The APC AP7581 Rack PDU Extender is a straightforward, cost-effective power distribution unit designed for racks requiring additional 208 V outlets. With a high-capacity 30 A input and four L6‑20 outlets, it easily scales power to high-density server, storage, or networking equipment.

Features

Engineered for demanding IT spaces, the AP7581 accepts a single 30 A, 200/208 V branch circuit via a NEMA L14‑30P input and distributes up to 4.992 kVA across four L6‑20R outlets. Its 2 U horizontal mounting system comes with hardware and a 28-foot cord, facilitating placement above or below rack units without blocking airflow .

Advanced Options

As a Basic (non-switched, non-metered) PDU, it focuses on delivering reliable power without management features—ideal for setups where simplicity and value are priorities.

Product Key Features

  •  30 A input supporting 200/208/230 V operation

  •  Four NEMA L6‑20R outlets delivering 208 V output

  •  2 U horizontal form factor for flexible rack placement

  •  Includes 28 ft NEMA L14‑30P power cord for upstream connection

  •  Durable aluminum chassis with rack mounting brackets

  •  Ideal for high-power devices in server and network cabinets

Reliability & Performance

Built to APC/Schneider’s quality standards, the AP7581 is UL/cUL listed and designed for continuous operation in enterprise environments . Its aluminum housing ensures efficient heat dissipation, while the long power cord enables flexible installation. The unit is rated to handle up to 24 A per outlet in North American deployments (in accordance with regulations)

Key Features (Bullet List)

  • Input: 200/208/230 V, 30 A via NEMA L14‑30P

  • Output: 4 × NEMA L6‑20R, 208 V

  • 2 U horizontal rack-mount design

  • 28 ft (8.5 m) power cord included

  • Basic, non-switched, non-metered operation

  • Rugged aluminum chassis with mounting hardware

  • Delivers ~4.992 kVA of power capacity

  • UL/cUL listed and RoHS compliant

  • Supports high-density server and IT equipment

  • Simple, cost-effective expansion solution

Specifications :

SpecificationDetails
Model Number AP7581
Product Type Basic Horizontal Rack PDU Extender
Rack Height 2 U
Input Voltage 200 / 208 / 230 V AC
Input Plug NEMA L14‑30P
Input Current 30 A (derated to 24 A in North America)
Power Capacity 4.992 kVA
Output Voltage 208 V
Output Outlets 4 × NEMA L6‑20R
Cord Length 28 ft (8.5 m)
Mounting Hardware Included brackets
Dimensions (H×W×D) 3.5″ × 17.2″ × 3.5″ (89 × 437 × 89 mm)
Weight 14.0 lb (6.36 kg)
Housing Material Aluminum (black)
Certifications UL 1778, cUL, CSA, RoHS
Warranty 2‑Year repair or replace
