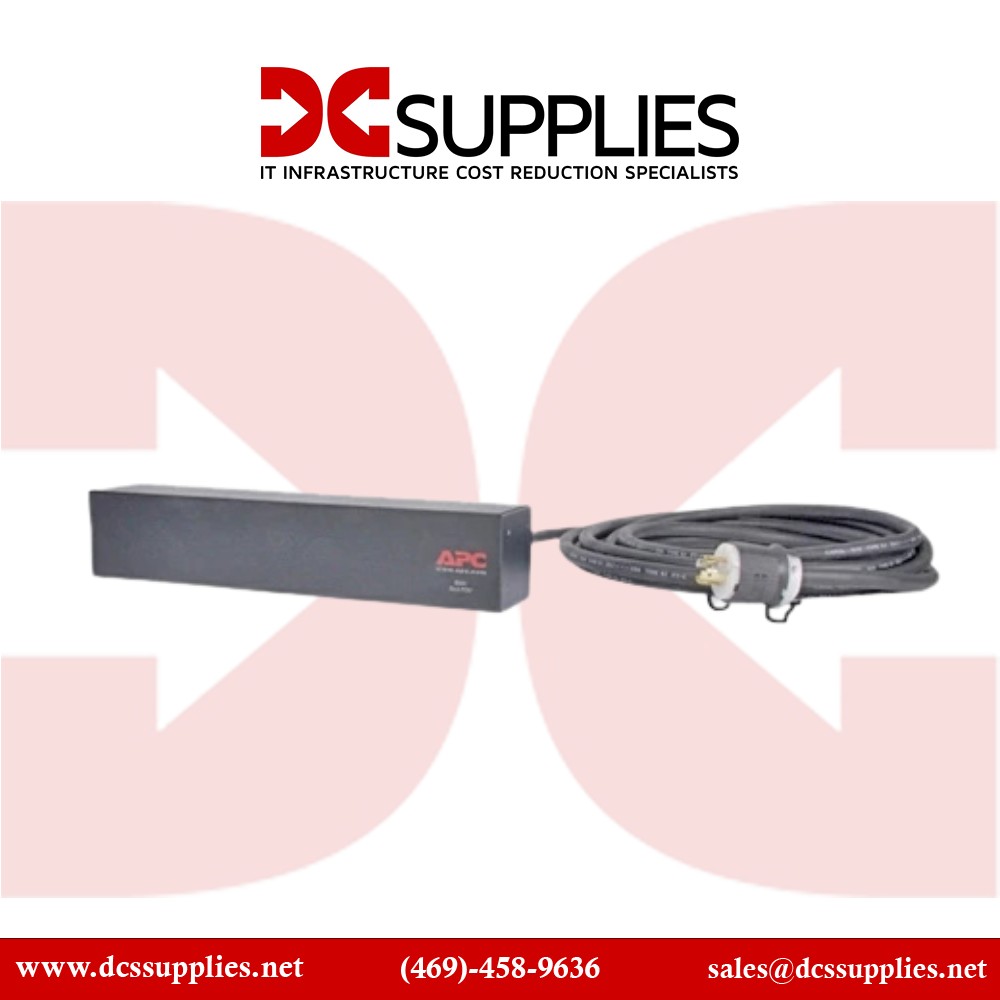

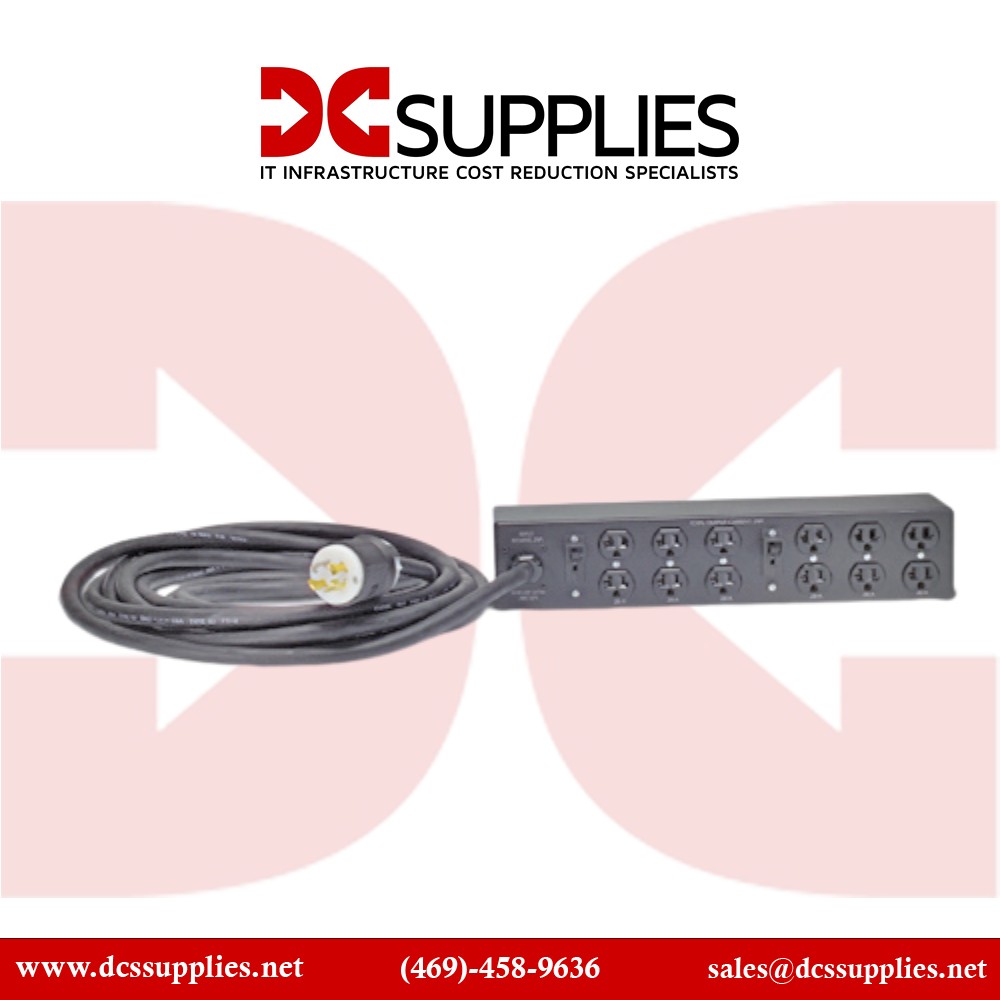

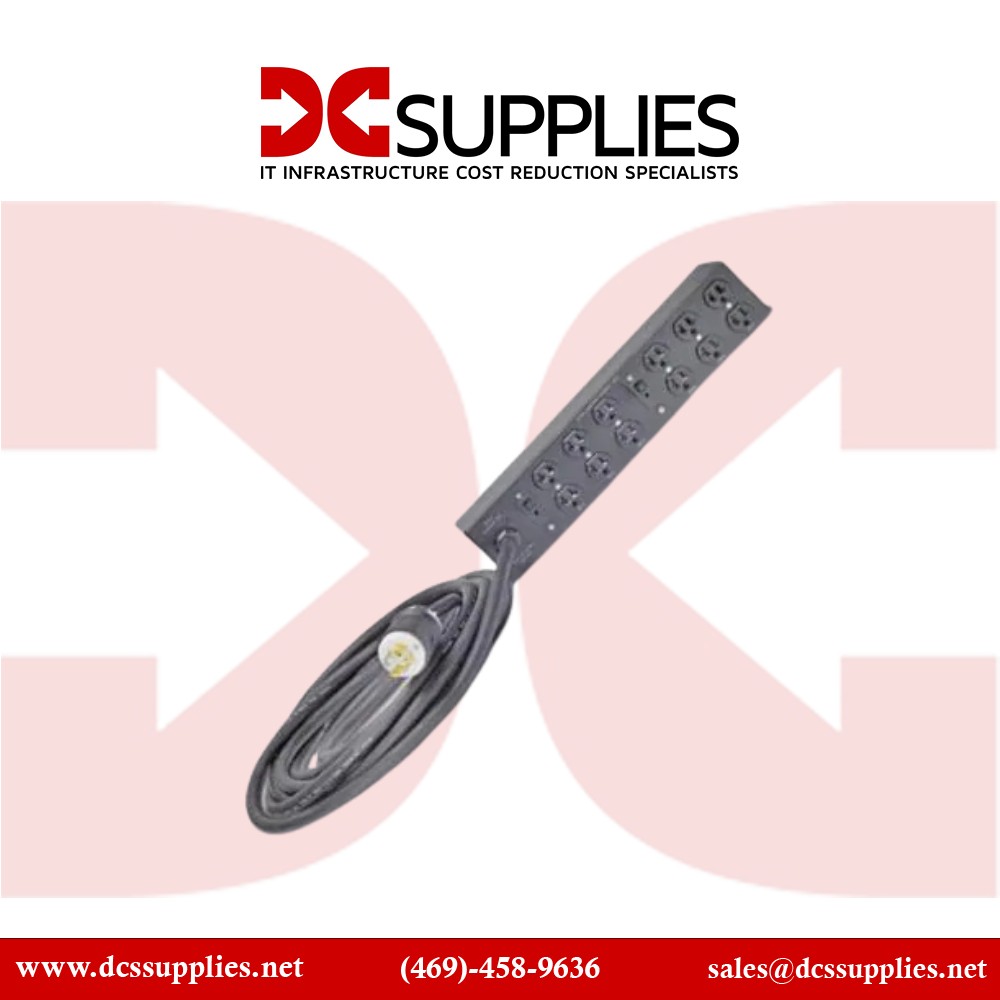

APC AP7582 2U Horizontal Rack PDU Extender 30A View larger

APC AP7582 2U Horizontal Rack PDU Extender 30A

New

APC AP7582 Basic 2U Rack PDU Extender with 12 NEMA 5-20 outlets 30A 120V
×




  • New

Detailed Specifications

APC

AP7582

2U Horizontal Rack PDU Extender 30A (120 V)

The APC AP7582 Rack PDU Extender is a dependable, basic power distribution unit designed to extend utility-grade power across server racks. With its 12-outlet capacity and 30 A input, it efficiently supports rack-mounted servers, networking gear, and AV equipment in data centers, labs, and telecom rooms.

Features

Featuring a horizontal 2 U, rugged metal chassis, the AP7582 connects to a single 30 A 120 V supply and distributes power to 12 devices via NEMA 5‑20 outlets. Its included 28-foot NEMA L14‑30P power cord and rack mounting hardware ensure flexible installation in various rack setups .

Advanced Options

As a basic PDU, it foregoes metering and remote management, offering a cost-effective solution focused on expanding outlet capacity under load without unnecessary complexity. It is popular in dense installations where additional power outlets are needed quickly and economically .

Product Key Features

  •  30 A, 4.992 kVA power distribution for high-density racks

  •  12 × NEMA 5‑20R outlets for versatile plug-in support

  •  120 V nominal output for standard U.S. equipment

  •  2 U horizontal mount; includes rack brackets & 28′ cord

  •  Basic, non-switched design—low cost & reliable

  •  Ideal extender for rear-channel mounting in NetShelter racks

Reliability & Performance

Built to APC/Schneider quality standards, the AP7582 is UL/cUL listed and constructed for continuous, unmonitored power delivery. The robust chassis and NEMA fittings ensure dependable operation, while the long power cable and rack points ease deployment in tight rack spaces .

Key Features (Bullet List)

  • 30 A / 120 V power rating (approx. 4.992 kVA)

  • 12 × NEMA 5‑20R standard outlets

  • 2 U horizontal rack-mount form factor

  • Included 28′ NEMA L14‑30P power cord

  • Basic (non-switched, non-metered) operation

  • Ideal for rear-channel or front rack mounting

  • UL/cUL listed, rugged aluminum housing

  • Low-cost, high-density power extender

  • Includes installation guide and rack brackets

  • RoHS-compliant, environmentally conscious build

Specifications :

SpecificationDetails
Model Number AP7582
Product Type Basic Horizontal Rack PDU Extender
Rack Size 2 U horizontal
Input Voltage 120 V nominal (supports 200/208/230 V input range)
Input Plug NEMA L14‑30P, 30 A
Input Current 30 A (derated to ~24 A in NA installations)
Power Rating ≈4.992 kVA (4992 VA)
Output Voltage 120 V AC
Output Outlets 12 × NEMA 5‑20R
Cord Length 28 ft (8.5 m)
Mounting Kit Includes horizontal recess and vertical rear-channel brackets
Dimensions (HxWxD) 3.5″ × 17.2″ × 3.5″ (89 × 437 × 89 mm)
Weight ~14 lb (6.36 kg)
Housing Material Aluminum, black
Certifications UL Listed, cUL, RoHS compliant
Warranty 2-year repair or replacement
