Detailed Specifications

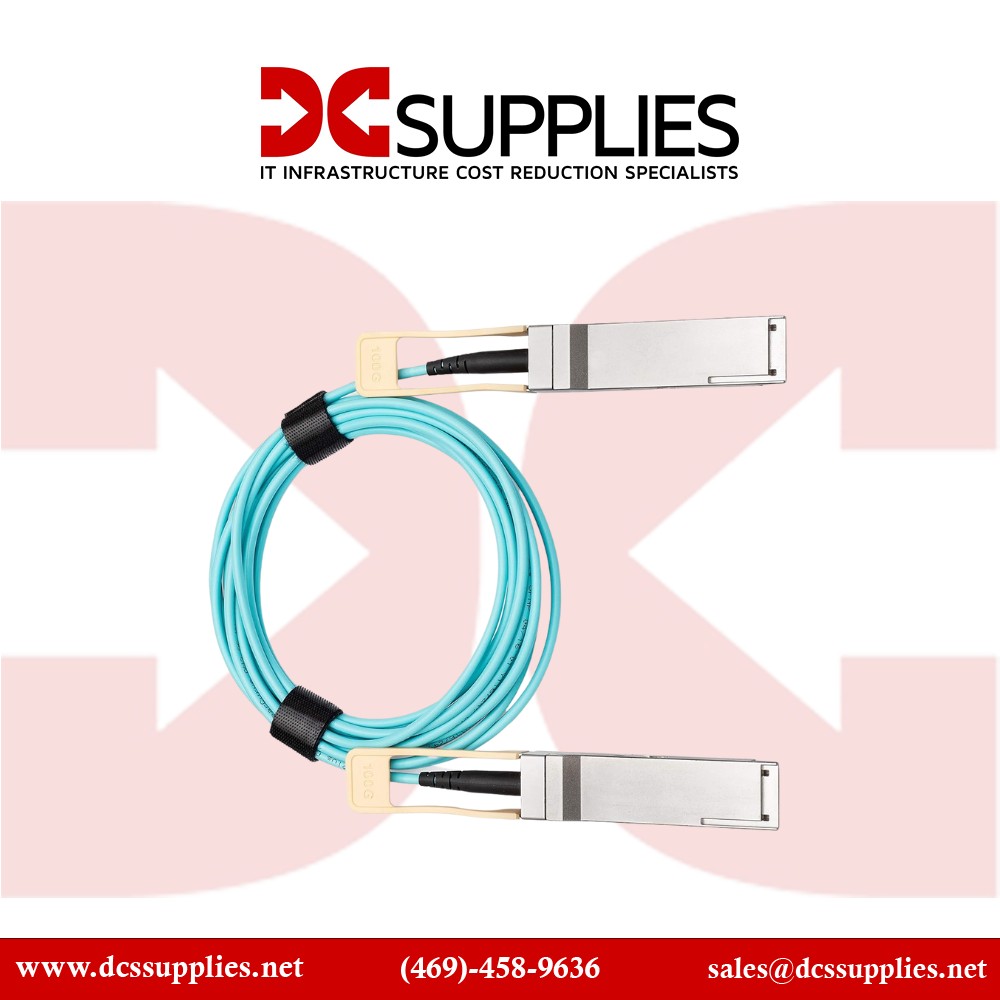

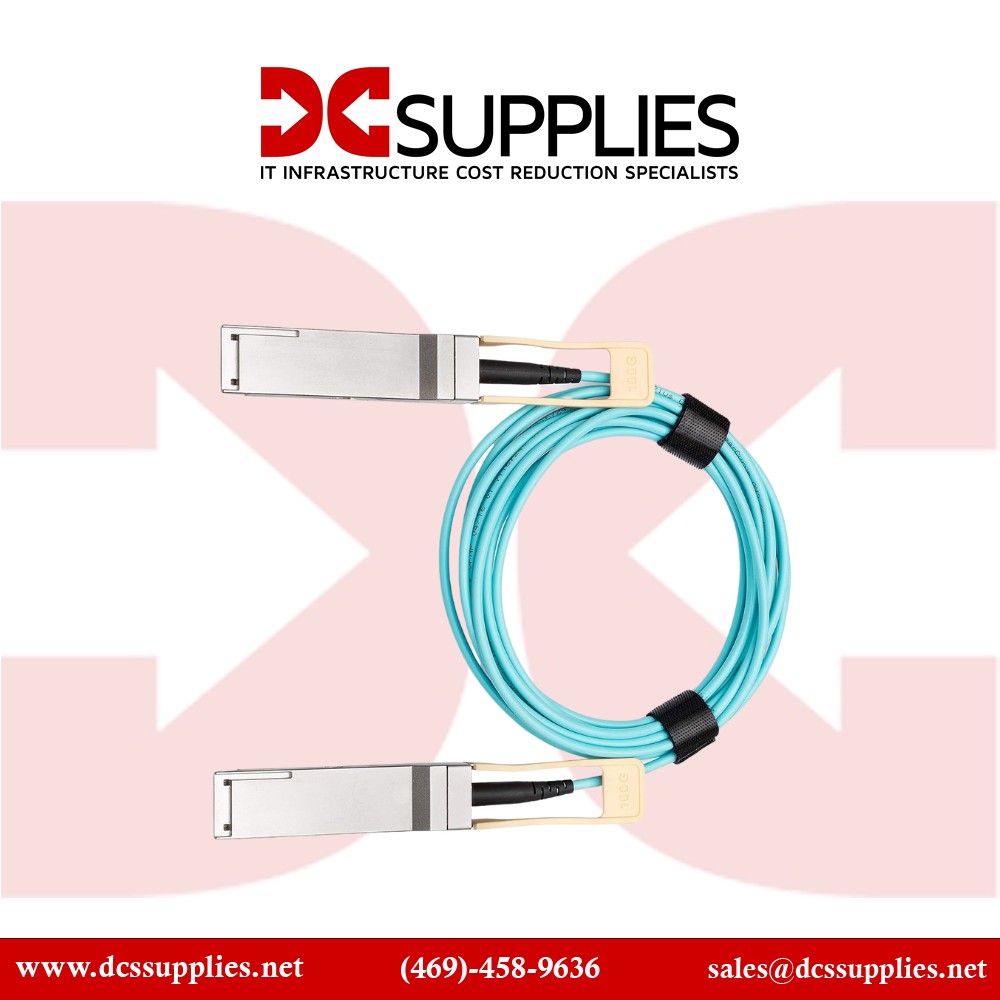

NVIDIA MFA1A00-C030 AOC Cable Ethernet 100GbE QSFP 30m
Overview :
NVIDIA Networking QSFP28 VCSEL-based (Vertical Cavity Surface-Emitting Laser) active optical cables are designed for use in 100Gb/s Ethernet systems.
MFA1A00-Cxxx AOC offers high port density and configurability, and a much longer reach than passive copper cables in the data centers. Since the AOC is hot pluggable, it is easy to install and replace.
MFA1A00-Cxxx has a standard SFF-8665 compliant QSFP28 port on the electrical side towards the host system. It contains four multi-mode fibers (MMF) optic transceivers per end, each operating at data rates of up to 25Gb/s.
MFA1A00-Cxxx offers selectable retiming per lane for both its optical transmitters and receivers for the 25Gbp/s rates, but the AOC also supports lower bit rates without retiming. The transmitters have programmable input equalizers and input squelch function, while the receivers have programmable output amplitude and pre-emphasis.
These unique-quality active-fiber cable solutions provide power-efficient connectivity for data center interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.
Specifications :
NVIDIA Mellanox Compatible |
MFA1A00-C030 |
Vendor Name |
FiberMall |
Connector |
QSFP28 to QSFP28 |
Max Data Rate |
100Gbps |
Cable Length |
30m (98.42ft) |
Fiber Cable |
OM3 MMF |
Jacket Material |
OFNP |
Minimum Bend Radius |
7.5mm |
Operation Temperature |
0~ 70 °C (32 to 158°F) |
Protocols |
40G/100G Ethernet, Infiniband EDR |
