Detailed Specifications

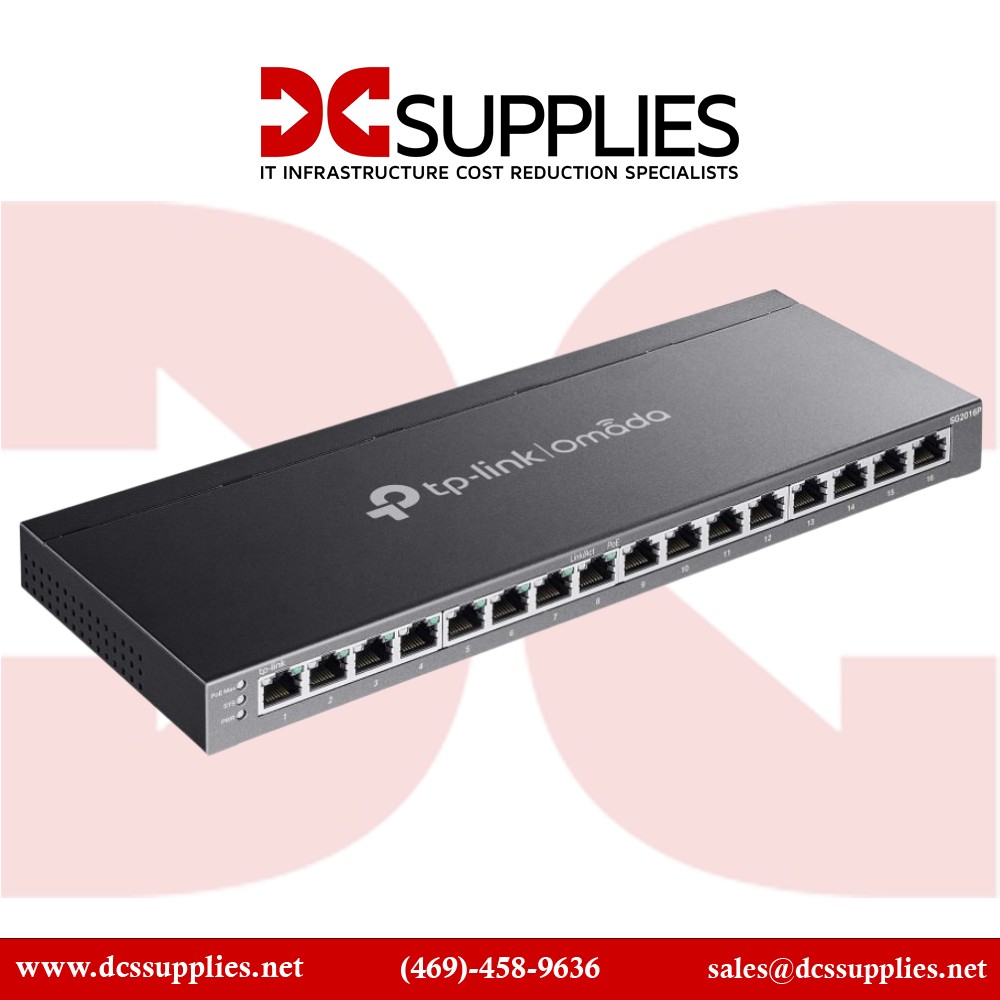

TP-LINK TL-SG2016P Jetstream 16-Port Gigabit Smart Switch with 8-Port PoE+
Overview :
Smarter Switching for Smarter Results
JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+
TL-SG2016P
- Centralized Management
- Multi-Site Management
- Omada App
- Multicast Optimization
- VLAN
- Access Control List
- 120 W PoE Budget
- Durable Metal Casing
Multiple Application Scenarios
The TL-SG2016P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
Surveillance
Works with IP Cameras Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Omada EAPs
Wired Connections
Works with PCs and Printers
Power over Ethernet for Simplified Network Deployment
Features eight 802.3af/at compliant PoE+ ports, the switch supports up to 120 W total PoE power budget. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.
Specifications :
| Product Name |
Jetstream 16-Port Gigabit Smart Switch with 8-Port PoE+ |
| Product Type |
Ethernet Switch |
| Manageable |
Yes |
| Ethernet Technology |
Gigabit Ethernet |
| Product Family |
JetStream |
| Media Type Supported |
Twisted Pair |
| Total Number of Network Ports |
16 |
| PoE (RJ-45) Port |
Yes |
| Form Factor |
Desktop |
| Power Consumption |
146.50 W |
| Power Source |
Power Adapter |
| Layer Supported |
2 |
| Environmentally Friendly |
Yes |
| Environmental Certification |
RoHS |
| Network (RJ-45) |
Yes |
| Port / Expansion Slot Details |
8 x Gigabit Ethernet PoE+
8 x Gigabit Ethernet Network
|
| PoE Budget |
120 W |
| Networking Standards |
IEEE 802.3i
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3af
IEEE 802.3at
IEEE 802.3x
IEEE 802.1D
IEEE 802.1s
IEEE 802.1w
IEEE 802.1Q
IEEE 802.1p
IEEE 802.1x
IEEE 802.1ab
|
| Height |
1" |
| Width |
11.3" |
| Depth |
4.4" |
| Features |
Fanless |
| Product Model |
TL-SG2016P |
| Network Technology |
1000Base-T |
| Product Line |
JetStream |
| Input Voltage |
120 V AC |
| Limited Warranty |
5 Year |
| Frequency |
50 Hz
60 Hz
|
