Detailed Specifications

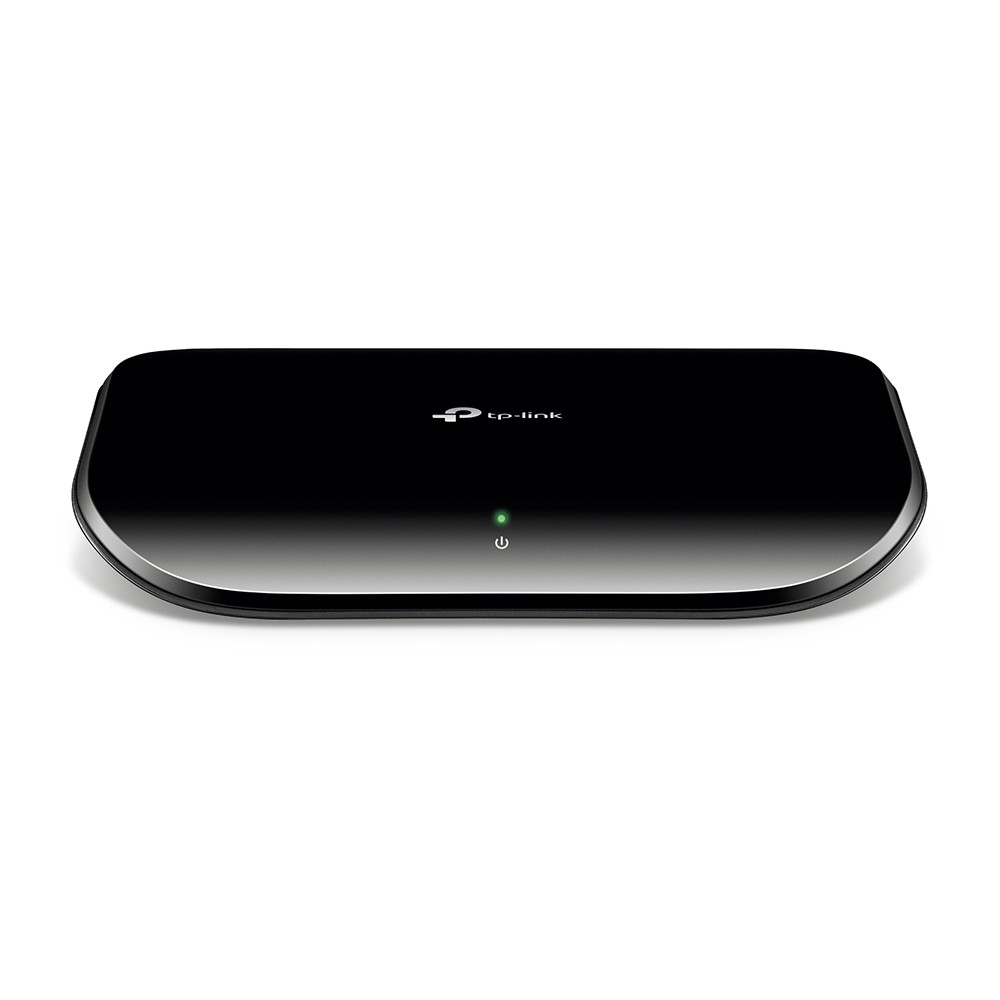

TP-Link TL-SG1005D 5 Port Gigabit Ethernet Network Switch Plug and Play
Overview :
The TL-SG1005D 5-port Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality.
Features :
- Innovative energy-efficient technology saves power up to 70%
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire speed for maximum throughput
- 16Gbps Switching Capacity
- 9K Jumbo frame improves the performance of large data transfers
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
- Fanless design ensures quiet operation
- Desktop or wall-mounting design
- Plug and Play design simplifies installation
Specifications :
| Product Name |
5-Port Gigabit Desktop Switch |
| Product Type |
Ethernet Switch |
| Manageable |
No |
| Ethernet Technology |
Gigabit Ethernet |
| Media Type Supported |
Twisted Pair |
| Total Number of Network Ports |
5 |
| Form Factor |
Wall Mountable
Desktop
|
| Power Consumption |
2.40 W |
| Power Source |
Power Adapter |
| Layer Supported |
2 |
| Network (RJ-45) |
Yes |
| Port / Expansion Slot Details |
5 x Gigabit Ethernet Network |
| Networking Standards |
IEEE 802.3x
IEEE 802.1p
|
| Product Material |
Plastic |
| Height |
0.9" |
| Width |
5.5" |
| Depth |
3.5" |
| Product Model |
TL-SG1005D |
| Network Technology |
10/100/1000Base-T |
| Package Contents |
- TL-SG1005D 5-port Unmanaged Gigabit Switch
- Power Adapter
- Installation Guide
|
| Number of Network (RJ-45) Ports |
5 |
