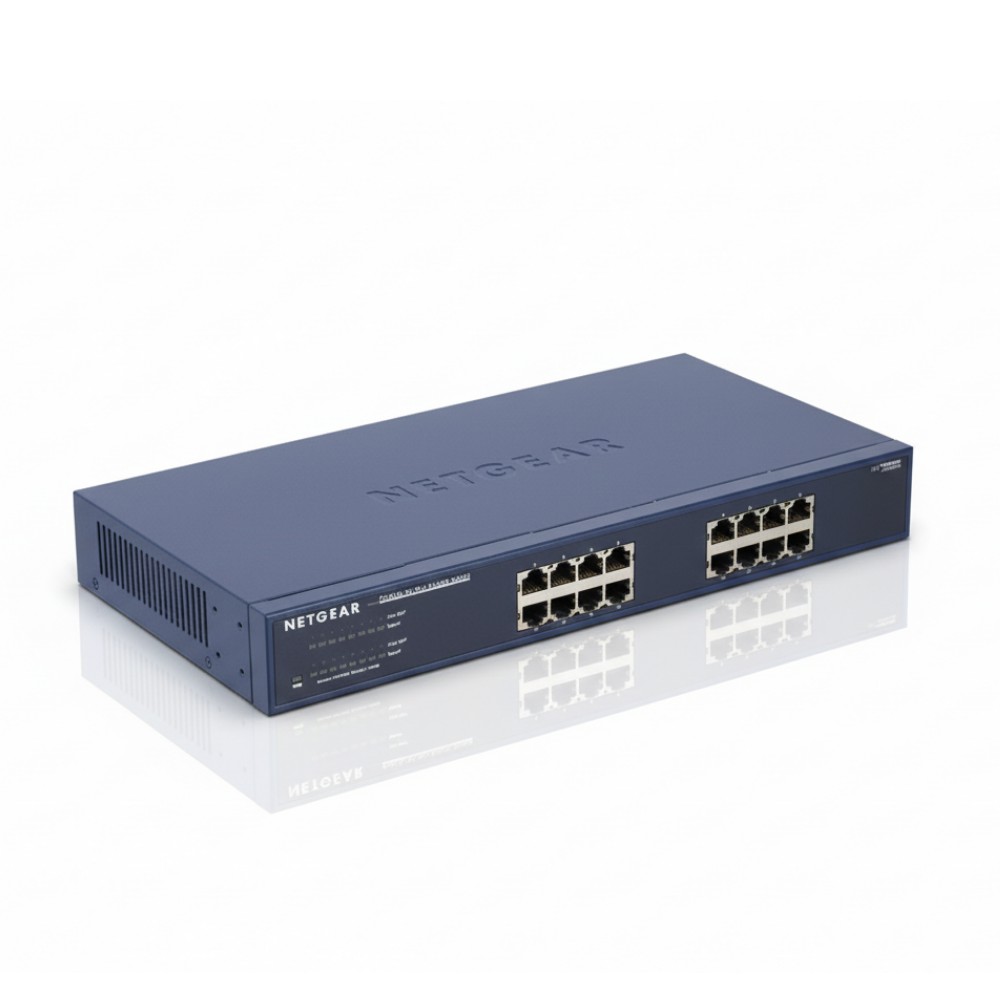

Netgear JGS516NA ProSafe 16-Port Gigabit Rackmount Switch View larger

Netgear JGS516NA ProSafe 16-Port Gigabit Rackmount Ethernet Switch

New

16-Port Gigabit Unmanaged Switch

×




  • New

Detailed Specifications

NETGEAR ProSafe JGS516NA 16-Port Gigabit Unmanaged Switch

Overview

The NETGEAR JGS516NA is a Layer 2, unmanaged switch from the ProSafe series, engineered for reliable, high-speed Gigabit Ethernet connectivity in small to medium office environments. This switch provides 16 auto-sensing 10/100/1000 Mbps RJ-45 ports, offering a non-blocking switching bandwidth of 32 Gbps to handle high-demand applications like large file transfers, video, and imagery. Built with durable metal housing and a straightforward plug-and-play design, it integrates easily into existing infrastructure and includes hardware for both desktop and standard 19-inch rack installations.

Key Features

  • Non-blocking, 32 Gbps switching capacity for zero throughput bottleneck across all 16 ports.
  • Auto Uplink (Auto MDI/MDI-X) functionality on all ports eliminates the need for crossover cables.
  • Supports Jumbo Frames up to 9 KB to optimize large data transfers and increase network efficiency.
  • Fanless operation for quiet deployment in offices, conference rooms, or noise-sensitive wiring closets.

Technical Specifications

Key SpecificationDetail
Brand NETGEAR
Part Number JGS516NA
Product Type Unmanaged Gigabit Ethernet Switch
Ports 16 x 10/100/1000Base-T RJ-45
Switching Bandwidth 32 Gbps
Forwarding Rate (64-byte) 23.8 Mpps (Millions of packets per second)
MAC Address Table Size 8K Entries
Jumbo Frame Support Up to 9 KB
Latency (1000 Mbps) < 15 µs (Microseconds) (64-byte packets)
Power Consumption (Max) 11.8W (JGS516v2 confirmed) / 25W (JGS516 original confirmed)
Form Factor Rack-mountable (1U, kit included) / Desktop
MTBF (Mean Time Between Failures) 441,123 Hours
Dimensions (H x W x D) 43 x 328 x 169 mm (1.7 x 12.9 x 6.7 in)
Weight 1.47 kg (3.24 lb)
Layer Supported Layer 2
