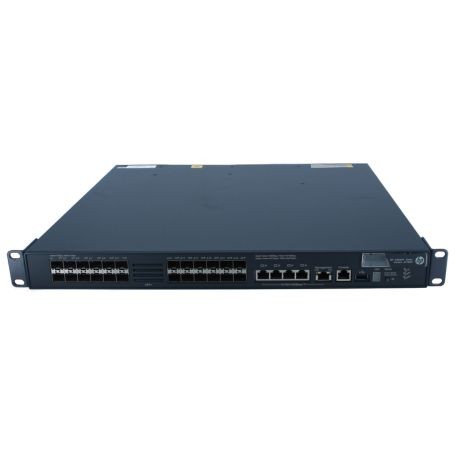

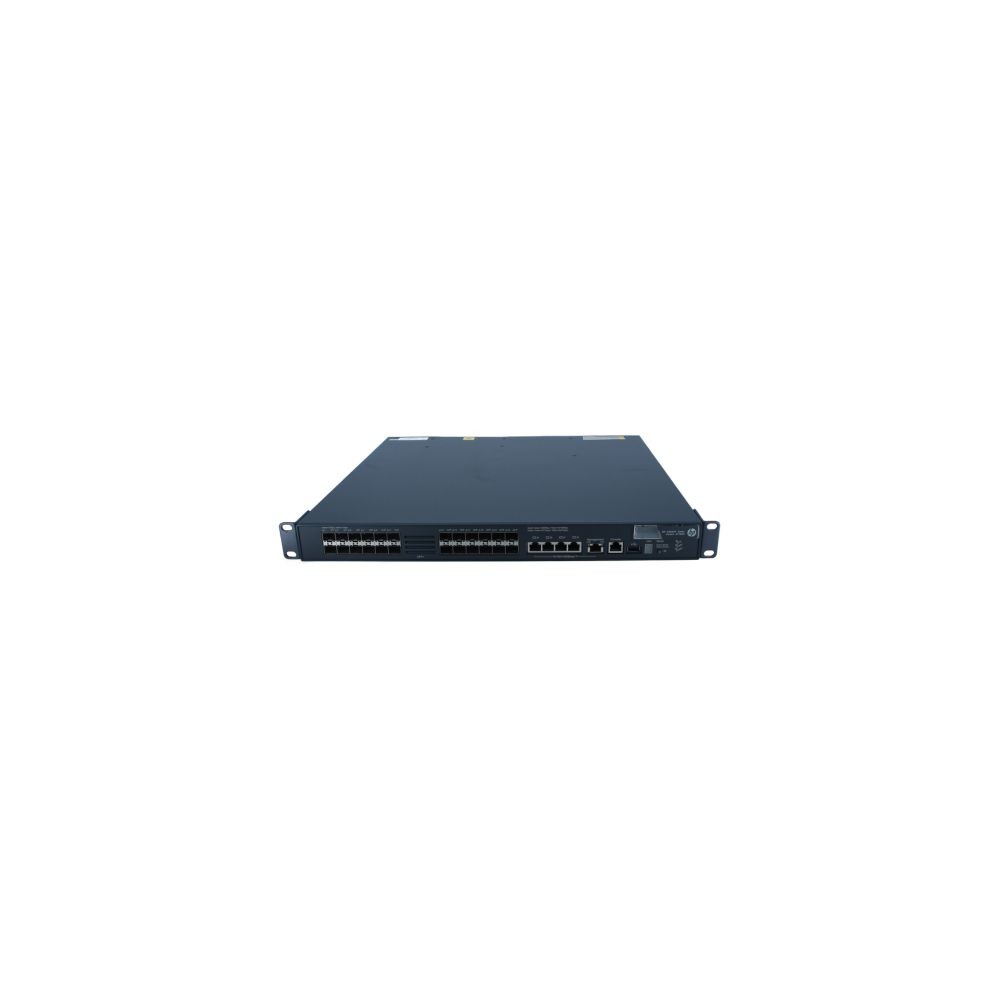

HP JC102A ProCurve 5820-24XG-SFP+ Managed Ethernet Switch

New

HP JC102A ProCurve 5820-24XG-SFP+ is a 24-port...

×




  • New

Detailed Specifications

HP JC102A

ProCurve 5820-24XG-SFP+ Managed switch Rack MountableStackable Ethernet Switch

The HP JC102A ProCurve 5820-24XG-SFP+ is a high-performance, fully Managed switch Layer 3 switch designed for data-intensive enterprise environments. With 24 10GbE SFP+ ports and stackable architecture, this switch provides the bandwidth, scalability,and control needed for modern IT infrastructures.

Features

Designed to meet the high-speed networking needs of enterprise cores and data centers, the HP 5820-24XG-SFP+ delivers exceptional Layer 2 and Layer 3 switching capabilities. It supports ultra-fast 10 Gigabit Ethernet through all 24 SFP+ ports, enabling seamless server connectivity, high-volume data transfers, and latency-sensitive applications.

Advanced Options

With advanced software features, including support for IPv4/IPv6, QoS, and ACLs, the switch enables fine-tuned network control and robust security. Stackable up to multiple units and hot-swappable fan trays and power supplies, this switch ensures operational continuity and high availability.

Product Key Features

    •  24 × 10GbE SFP+ ports for ultra-fast data throughput

    •  Stackable design for scalable network expansion

    •  Fully Managed switch Layer 3 switch for advanced routing capabilities

    •  Hot-swappable fan and power modules for uninterrupted operation

    •  Efficient cooling and redundant power support

    •  Ideal for high-performance enterprise and data center networks

Reliability & Performance

Built for mission-critical environments, the HP JC102A switch combines hot-swappable hardware with software-defined resilience. It features redundant power and fan modules to minimize downtime and is engineered for high thermal efficiency. Compatibility with a wide range of HP and industry-standard SFP+ transceivers makes it adaptable to various deployment scenarios. Whether it's in a core data center role or aggregating traffic from multiple switches, the 5820 delivers consistently fast, reliable performance.

Key Features :

  • 24 × 10-Gigabit SFP+ ports

  • Managed switch Layer 3 capabilities

  • Stackable design for network scaling

  • IPv4 and IPv6 routing support

  • QoS and Access Control Lists

  • Hot-swappable fans and power supply

  • Redundant hardware support

  • High-capacity switching performance

  • Energy-efficient cooling

  • Compatible with various HP transceivers

SpecificationDetails
Model Number JC102A
Product Type Managed switch Layer 3 Stackable Ethernet Switch
Port Configuration 24 × 10GbE SFP+
Expansion Slots 1 × Interface Slot (for module expansion)
Switching Capacity 720 Gbps
Forwarding Rate Up to 535.7 Mpps
Form Factor 1U Rack-Mountable
Redundant Features Hot-swappable fan trays and power supplies
Stacking Support Up to 4 units
Dimensions (W×D×H) 17.32″ × 20.67″ × 1.73″ (440 × 525 × 44 mm)
Weight Approx. 18.5 lbs (8.4 kg)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Management Interfaces CLI, Web GUI, SNMP v1/v2/v3
