Detailed Specifications

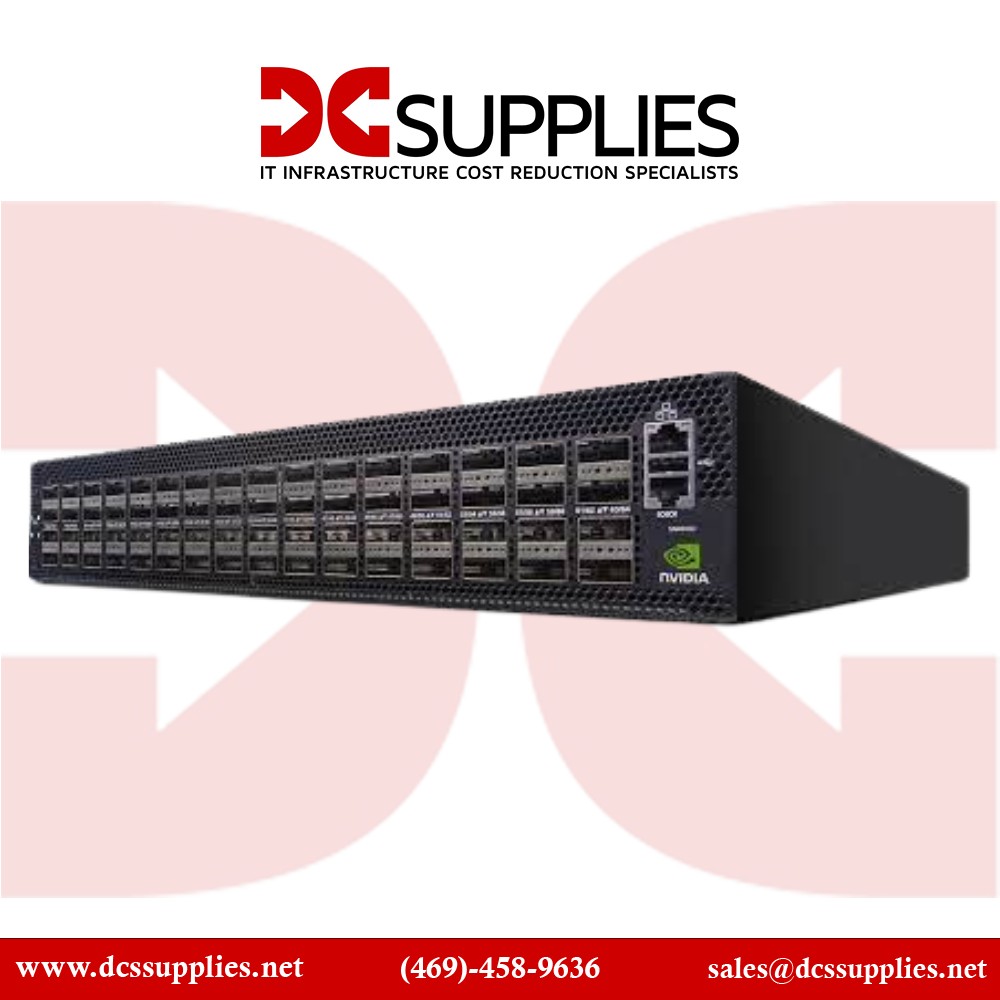

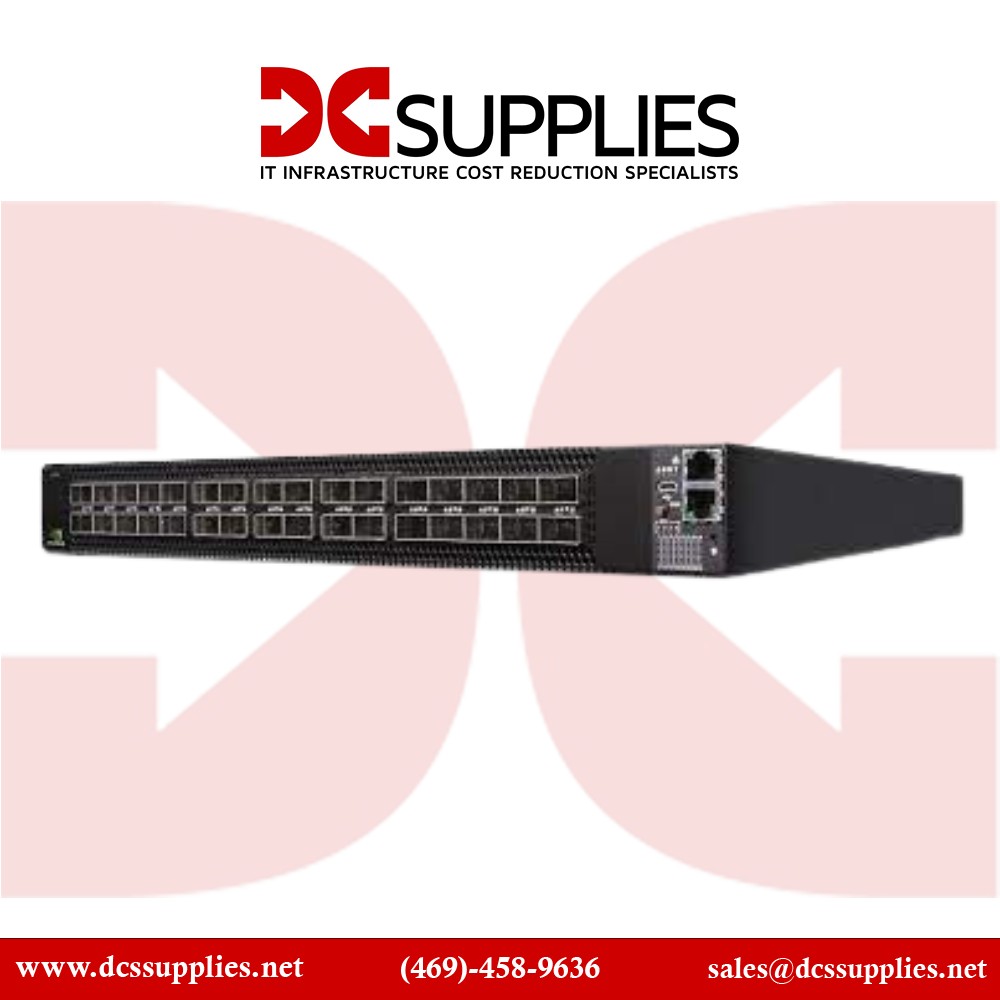

NVIDIA Mellanox MSN4600-CS2FC Spectrum-3 100GbE 2U Open Ethernet Switch
Overview :
NVIDIA MSN4600-CS2FC Spectrum-3 Based 100GbE 2U Open Ethernet Switch with Cumulus Linux 64 QSFP28 Ports 2 Power Supplies (AC) x86 CPU Standard Depth P2C Airflow Rail Kit
SN4600C Series Switches
The SN4600C is a 64-port 100GbE network switch system that is ideal for spine/super-spine applications. With a landmark 8.4Bpps processing capacity and 12.8Tb/s throughput in a dense 2U form factor, SN4600C offers diverse connectivity in combinations of 10/25/40/50/100 GbE. The SN4600C is well-suited to answer the challenging needs of large virtualized data centers and cloud environments.
Visibility
- NVIDIA What Just Happened (WJH) telemetry dramatically reduces mean time to issue resolution by providing answers to: When, What, Who, Where and Why
- Hardware-accelerated histograms track and summarize queue depths at submicrosecond granularity
- Inband Network Telemetry (INT)-ready hardware
- Streaming Telemetry
- 512K on-chip flow counters
Performance
- Fully shared packet buffer provides a fair, predictable and high bandwidth data path
- Consistent and low cut-through latency
- Intelligent hardware-accelerated data movement, congestion management & load balancing for RoCE & Machine learning applications that leverage NVIDIA GPUDirect
- Best-in-class VXLAN scale-10X more tunnels and tunnel endpoints
- 512K shared forwarding entries flexibly shared across ACL, LPM routes, host routes, MAC, ECMP and tunnel applications
- Up to 1M IPv4 route entries
Specifications :
Product Name |
Spectrum-3 Based 100GBE 2U |
Product Type |
Ethernet Switch |
Manageable |
Yes |
Ethernet Technology |
100 Gigabit Ethernet |
Number of Total Expansion Slots |
64 |
Product Family |
Spectrum-3 MSN4600C |
Media Type Supported |
Optical Fiber |
Redundant Power Supply Supported |
Yes |
Expansion Slot Type |
QSFP28 |
Form Factor |
Rack-mountable
Rail-mountable
|
Power Source |
Power Supply |
Layer Supported |
3 |
Environmentally Friendly |
Yes |
Compatible Rack Unit |
2U |
Modular |
Yes |
Port / Expansion Slot Details |
64 x 100 Gigabit Ethernet Expansion Slot |
Height |
3.5" |
Width |
16.9" |
Depth |
22.3" |
Product Series |
MSN4600C |
Product Model |
MSN4600-CS2FC |
Network Technology |
100GBase-X |
Product Line |
Spectrum-3 |
