Ruckus Wireless E40G-QSFP-4SFP-C-0301 direct attach cable 10 ft View larger
Previous Next

Ruckus E40G-QSFP-4SFP-C-0301 Wireless direct attach cable 10 ft

New

High-speed breakout DAC cable for flexible 40G to 10G connectivity
×




  • New

Detailed Specifications

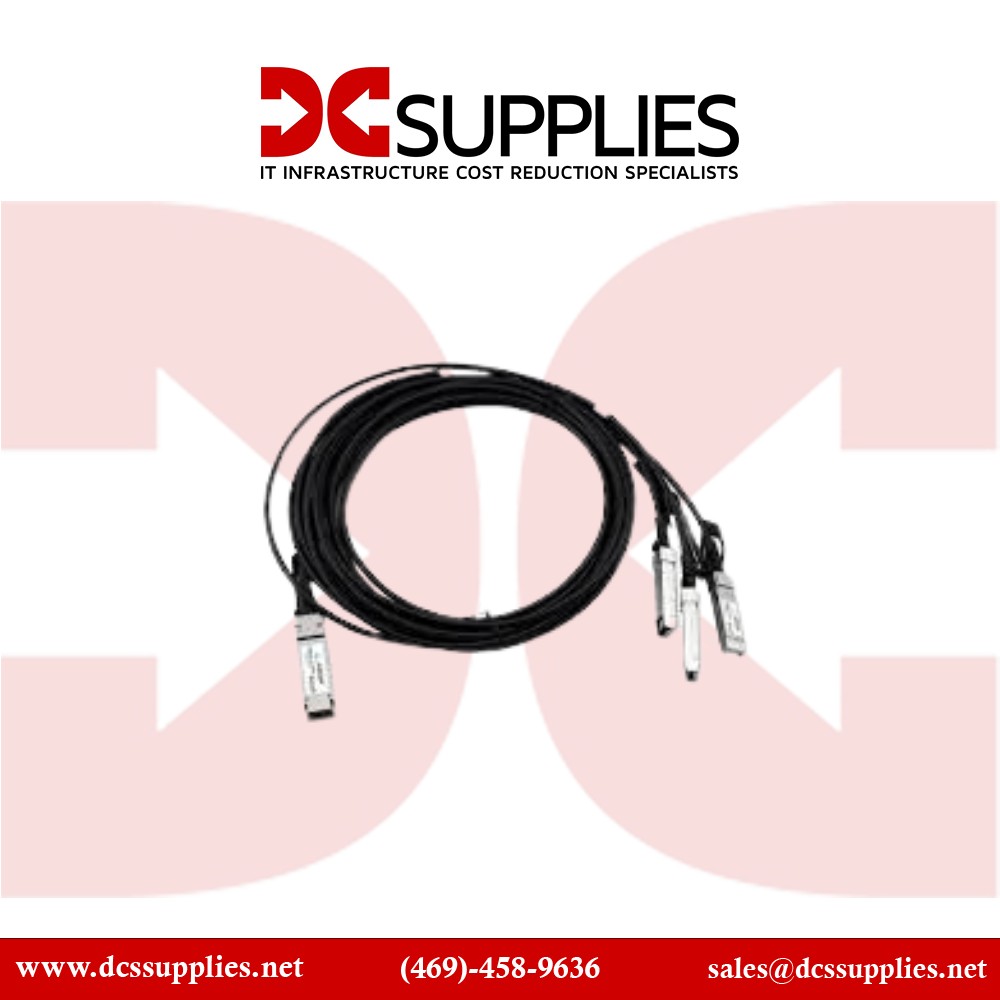

Ruckus Wireless E40G-QSFP-4SFP-C-0301

40G QSFP+ to 4x10G SFP+ Direct Attach Cable | 10 ft

The Ruckus Wireless E40G-QSFP-4SFP-C-0301 is a high-performance breakout DAC cable designed to connect one 40G QSFP+ port to four individual 10G SFP+ ports. Measuring 3 meters (10 ft), this passive copper cable provides cost-effective and energy-efficient short-range connectivity for switches, servers, and storage systems in data centers, enterprise, and campus networks.

Product Overview :

Supported by the IEEE 802.3ba 40GBASE-CR4 standard, this cable ensures interoperability across Ruckus ICX switches and all compliant QSFP+ and SFP+ devices. Its breakout design allows IT administrators to optimize port utilization, splitting a 40G uplink into four separate 10G connections to maximize deployment flexibility.

At 3 meters (10 feet) in length, the cable is suitable for top-of-rack, end-of-row, and adjacent-rack connectivity. With plug-and-play functionality and hot-swappable connectors, it is simple to deploy without additional optical transceivers or configuration. Its passive copper design provides reduced power needs and minimal latency, making it an efficient alternative to optical fiber for short-range connectivity.

Product Key Features

  • QSFP+ to 4x SFP+ breakout cable (1x40G into 4x10G)
  • 3 meters (10 ft) length for flexible deployment
  • Compatible with 40GbE and 10GbE network interfaces
  • Passive copper design – energy efficient
  • Plug-and-play, hot-swappable operation
  • Cost-effective alternative to optical transceivers
  • Optimized for Ruckus ICX switches and compatible platforms

Expanded Overview :

The Ruckus E40G-QSFP-4SFP-C-0301 breakout DAC offers reliable, short-reach 40GbE to 10GbE connectivity. It is particularly useful for enterprise or data center deployments where cost control, efficiency, and simplicity are critical. The cable eliminates the need for expensive optical modules while delivering consistent performance and low latency.

Its durable construction ensures dependable signal integrity for top-of-rack or row-based architectures, bridging connections between switches, servers, and storage systems. Hot-swappable QSFP+ and SFP+ connectors enable installation or replacement without downtime, further streamlining network upgrades and maintenance tasks.

Reliability & Performance :

Built from high-quality materials, the Ruckus E40G-QSFP-4SFP-C-0301 guarantees reliable performance under demanding network workloads. Its copper passive design reduces power consumption while maintaining interference-free 40GbE/10GbE connections. Engineered for mission-critical environments, this DAC supports stable throughput, durability, and long-term efficiency in enterprise and service provider infrastructures.

Key Features :

  • Compliant with IEEE 802.3ba 40GBASE-CR4 standard
  • 1x QSFP+ to 4x SFP+ breakout cable
  • 3 meters (10 feet) in length
  • Passive copper design for power efficiency
  • Delivers high bandwidth at low latency for short-reach deployments
  • Hot-swappable & plug-and-play compatible
  • Optimized for switch-to-server and switch-to-switch links
  • Interoperable with Ruckus ICX family and industry-compliant gear

Technical Specifications :

SpecificationDetail
Model Number E40G-QSFP-4SFP-C-0301
Product Type Direct Attach Copper (DAC) Cable
Connector Type QSFP+ to 4x SFP+
Cable Type Passive Copper
Data Rate 40Gbps (or 4x10Gbps breakout)
Standard Compliance IEEE 802.3ba 40GBASE-CR4
Length 3 meters (10 ft)
Form Factor Hot-swappable
Compatibility Ruckus ICX switches & QSFP+/SFP+ compliant systems
Power Consumption Passive, no external power required
Operating Temperature 0°C to 70°C
Weight ~0.5 lbs
