HP JG329A X240 QSFP+ 4x10G SFP 1.0m Direct Attach Copper Cable View larger

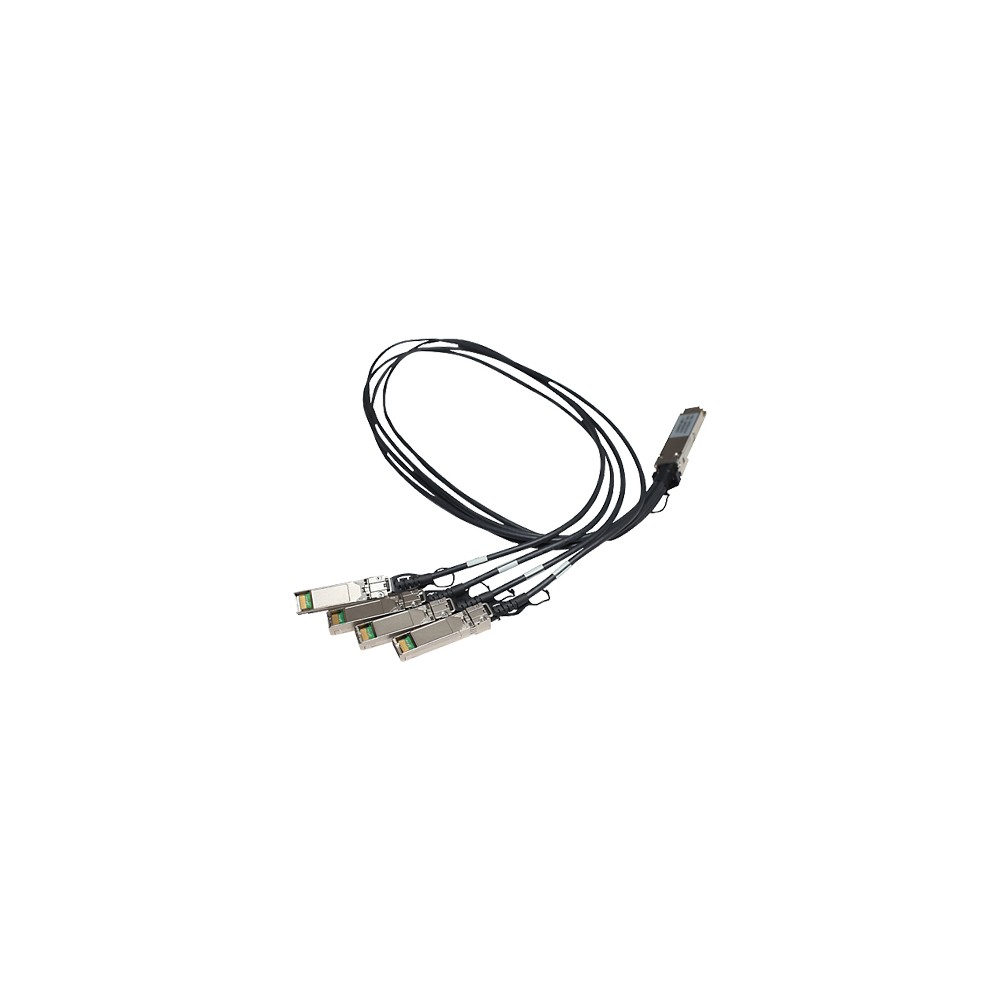

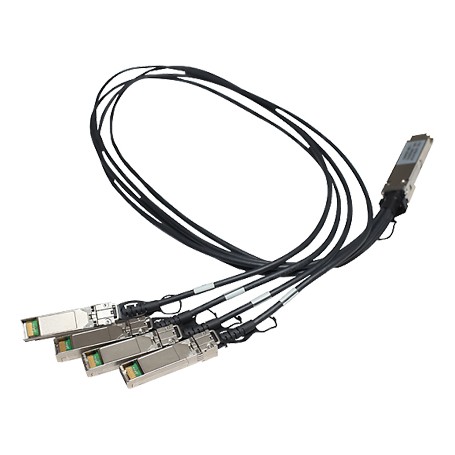

HP JG329A X240 QSFP+ 4x10G SFP 1.0m Direct Attach Copper Cable

JG329A

New

HP JG329A X240 QSFP+ 4x10G SFP 1.0m Direct Attach Copper Cable

×




Network Cable, dac cable, Network Device, Copper Cable, Splitter Cable, JG329A, Hp JG329A, QSFP Network, HP 5900 Switch Series, JG329A SPECS, JG329A manual

Detailed Specifications

HP JG329A X240 QSFP+ 4x10G SFP 1.0m Direct Attach Copper Cable

Overview :

The HPE H3C JG329A 40G QSFP+ to 4 x 10G SFP+ Direct Attach Cable operates over passive copper, which requires no additional power to ensure quality connectivity. This breakout cable is compliant with SFF-8436, SFF-8431 and SFP+ & QSFP MSA standards.
It provides a connection of a 40G QSFP+ port on one end and to four 10G SFP+ ports on the other end and is suitable for cost-effective close-range interconnections within the equipment room of telecom operators or data centers, etc.

The Q-4S-DAC-P1M-HPE DAC copper cable is programmed to be compatible with a wide range of HPE network equipment for intra-rack connections in data centers such as Ethernet Switches, Routers, Network Interface Cards (NICs) and Network Servers. It’s cost-effective alternative to high-cost HPE JG329A 40Gb/s QSFP+ to 4xSFP+ 1m DAC breakout cable.

Features

• Connector A: 1x QSFP 40Gbps Rated Connector (QSFP+ MSA SFF-8436 Compliant)
• Connector B: 4x SFP+ 10Gbps Rated Connector (SFP+ MSA SFF-8431 Compliant)
• Economically Links up a QSFP port with an upstream 10GbE-SFP+ Switch
• Compliant with IEEE 802.3ba 40GBASE-CR4 standard
• Up to 10.3125 Gbps transfer rate per SFP+ channel (40 Gbps aggregate)
• Bridge the gap between your 10G and 40G capable switches/host adapters
• High-Density QSFP 38-PIN and 4x SFP 20-PIN Connector
• Reduced power budget and lower port cost compared to transceiver and AOC

Specifications :

Product Name JG329A X240 QSFP+ 4X10G SFP+ 1M-DAC Cable
Manufacturer Part Number JG329A
Product Type Network Cable
Cable Characteristic Splitter Cable
Connector Type on First End QSFP+ Network
Connector Type on Second End SFP+ Network
Cable Length 3.28 ft
Connector on First End Details 1 x QSFP+ Network
Connector on Second End Details 4 x SFP+ Network
Country of Origin China
Compatibility HP 5900 Switch Series
Device Supported Network Device
Number of Ways 4-way
Conductor Copper
