Black Box HD6224A-R2 4K60 HDMI Dual-Head KVM Switch, 4 Port View larger

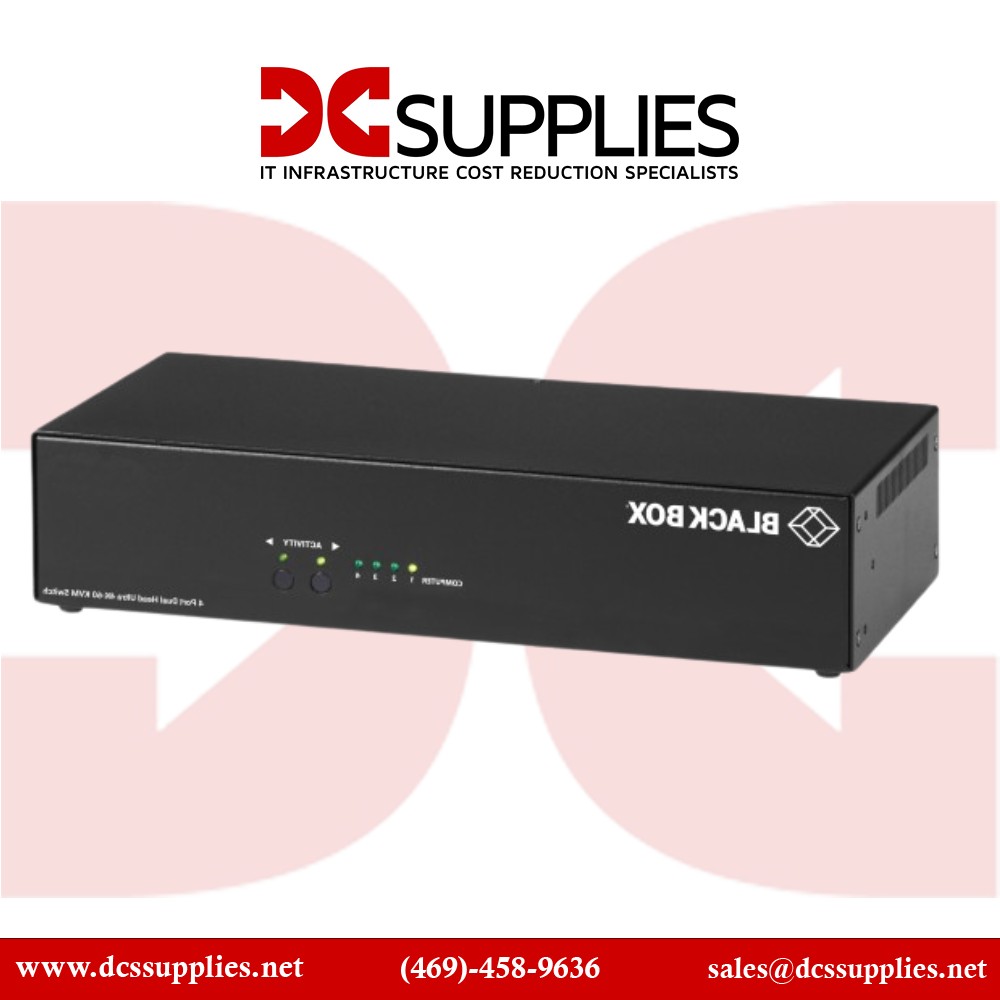

Black Box HD6224A-R2 4K60 HDMI Dual-Head KVM Switch, 4 Port

HD6224A-R2

New

Black Box HD6224A-R2 4K60 HDMI Dual-Head KVM Switch, 4 Port
×




Detailed Specifications

Black Box HD6224A-R2 4K60 HDMI Dual-Head KVM Switch, 4 Port

Overview :

This HD6224A-R2 HDMI Dual-Head Desktop KVM Switch allows you to control four HDMI computers with a single mouse, keyboard, and dual monitors up to 4K at 60 Hz. It's built with UHD-ready HDMI outputs, enabling emulation at 60 Hz directly from the device. With full EDID-assisted HDMI video emulation, this KVM switch remembers visual workspaces and screen resolutions. This means ultra-fast switching times, and fewer monitor compatibility issues. The Dual-Head KVM Switch is also easy to control with a simple front-panel interface, as well as RS-232 for external control, and hotkeys for easy switching between all devices such as connected audio, or connected USB devices.

The HD6224A-R2 is a powerful tool that allows the sharing of peripheral devices between each computer further reducing costs for separate equipment. The built-in USB hub automatically switches your connected devices to the selected computer, saving you the hassle of disconnecting and reconnecting external peripherals. Along with dual UHD 4K (60 Hz) video capability, the HD6224A features independent analog audio allowing you to share audio devices such as speakers or a microphone between each of the connected computers, giving you complete multimedia control of your systems.

Specifications :

MTBF 58,618 hrs
Altitude 7,000 feet
Approvals UL, CE, ROHS Compliant
Environmental Humidity: 5 to 90%, noncondensing
Operating Systems Supported Windows, Mac, Linux
Operating Temperature 32º to 104ºF (0ºC to 40ºC)
Power External 100-240 VAC/12 VDC, 3 A
Resolution (Maximum) Ultra-HD 4K (3840 x 2160) @ 30/50/60 Hz
Storage Temperature -30º to 80ºF (-22ºC to 176ºC)
Item Specifications

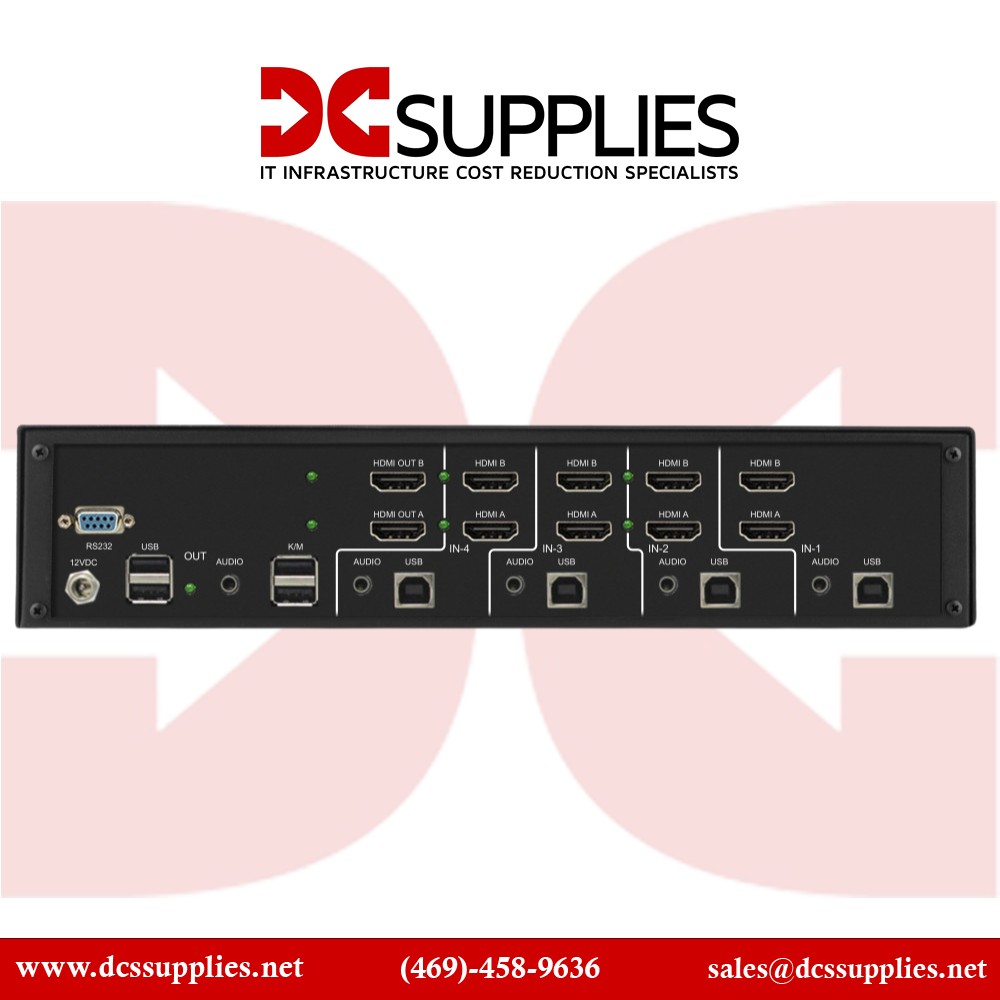

Connectors User:
(2) HDMI (Female)
(2) USB Type-A (Female) for HID
(2) USB Type-A (Female) for USB 2.0
(1) 3.5mm Analog Audio

Computer:
(8) HDMI (Female)
(4) USB Type-B (Female)
(4) 3.5mm Analog Audio

Power:
(1) 2.1mm Barrel
(1) RS232 DB9 Female for Remote Control
Dimensions 2-in. H x 12.75-in. W x 5.75-in. D (50.8 x 323 x 146-mm)
Indicators (4) Computer LEDs, (4) Activity Buttons and LEDs
Replaces HD6224A
Weight 3.55-lb. (1.61 kg)
