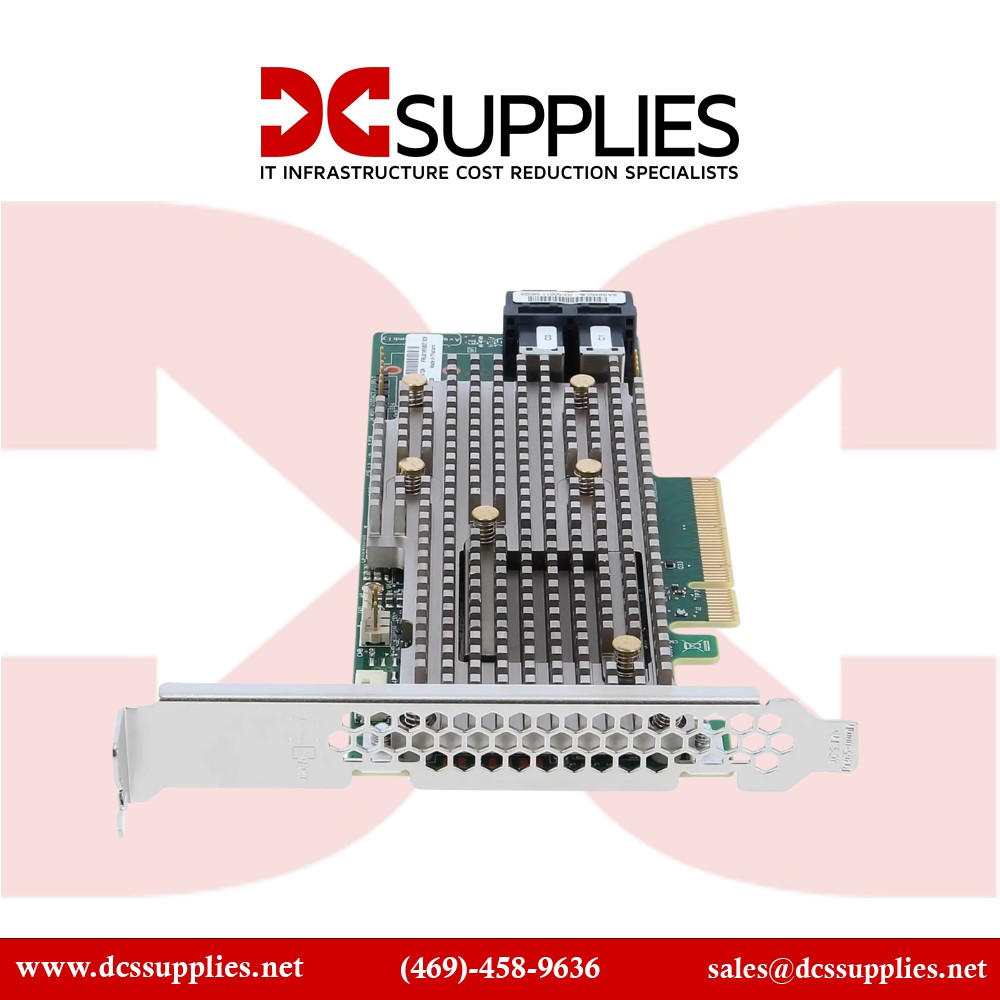

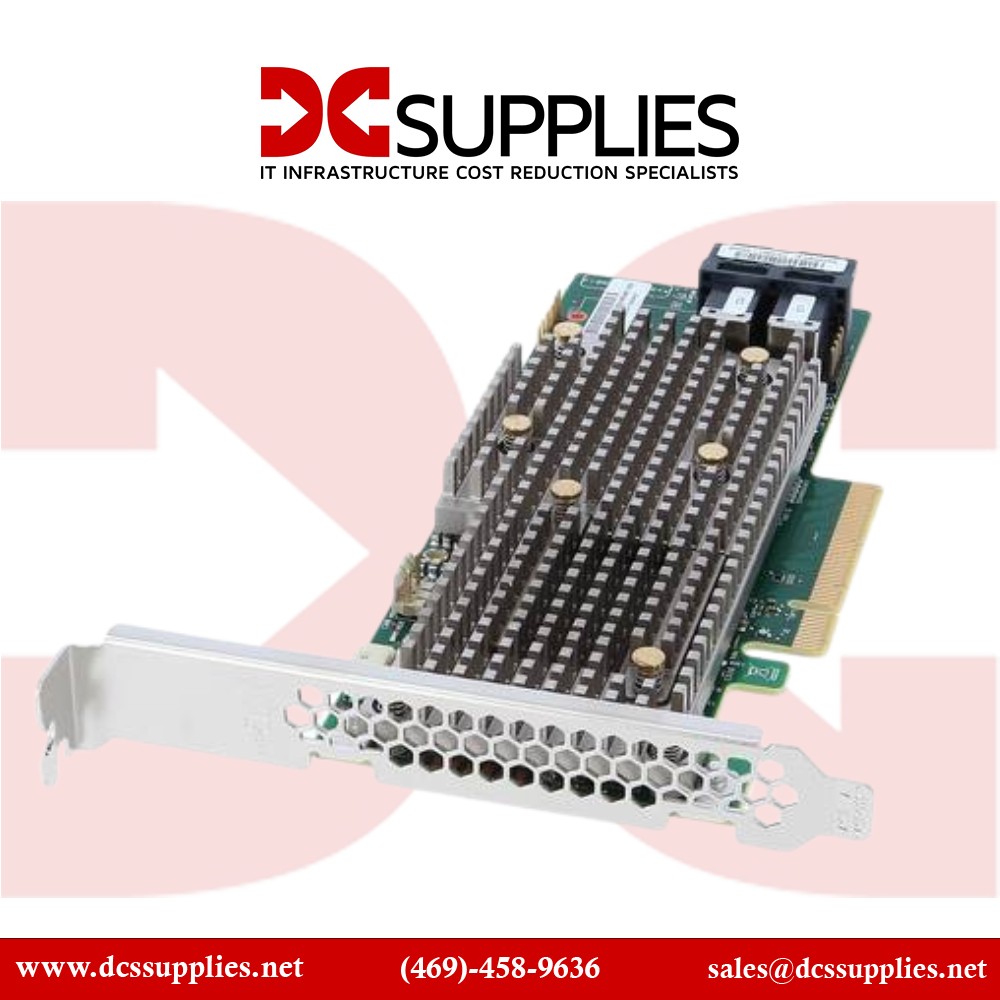

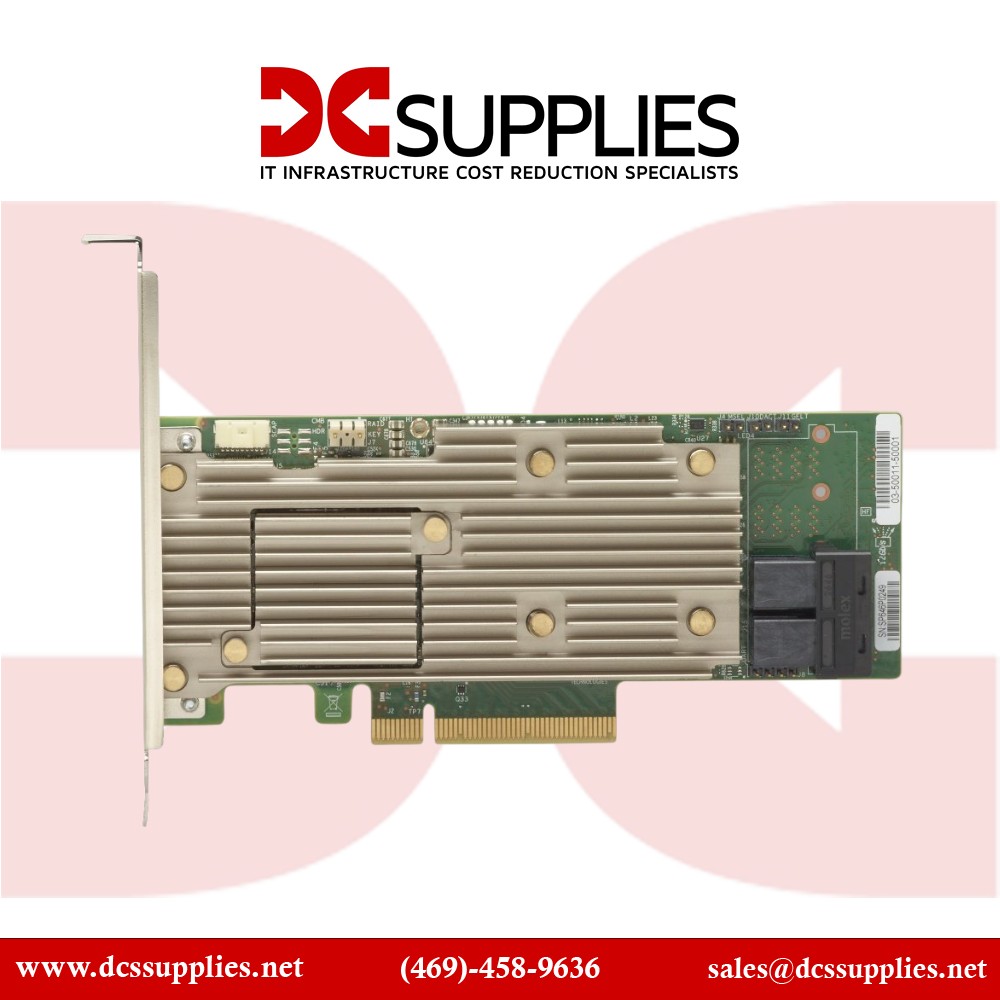

Lenovo 7Y37A01084 RAID controller PCI Express x8 3.0 12000 Gbit/s View larger

Lenovo 7Y37A01084 RAID controller PCI Express x8 3.0 12000 Gbit/s

7Y37A01084

New

Lenovo 7Y37A01084 RAID controller PCI Express x8 3.0 12000 Gbit/s
×




Lenovo SAS Controller, sas controller for pc, 7Y37A01084, Lenovo 7Y37A01084, 7Y37A01084 RAID controller, 7Y37A01084 Express, PCI Express x8 3.0 12000 Gbit, THINKSYSTEM RAID, 7Y37A01084 access, PCI Express x8

Detailed Specifications

Lenovo 7Y37A01084 RAID controller PCI Express x8 3.0 12000 Gbit/s

Description :

The ThinkSystem RAID 930 family of internal 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) adapters. These adapters support RAID levels 0/1/10/5/50/6/60, and include an extensive list of RAS and management features. This product guide provides essential presales information to understand the ThinkSystem RAID 930-4i, 8i, 16i and 24i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.

Specifications :

Ports & interfaces
Supported storage drive interfaces SAS, Serial ATA III
External SAS ports 8
Host interface PCI Express x8
PCI Express slots version 3.0
PCI Card form factor Full-height (low-profile)
Internal mini-SAS HD ports 2
Performance
RAID levels 0, 1, 10, 5, 50, 6, 60
SSD support Yes
Chipset LSI SAS3508
S.M.A.R.T. support Yes
RAID Level Migration Yes
Online Capacity Expansion Yes
Number of devices supported 8
Data transfer rate 12000 Gbit/s
Certification FCC Part 15 Class A Australia/New Zealand (AS/NZS CISPR 22) Canada (ICES-003 Class B) Europe (EN55022/EN55024) Japan (VCCI V-3) Korea (RRA no 2013-24 & 25) RoHS compliant EN/IEC/UL 60950 Taiwan (CNS 13438) USA (FCC 47 CFR part 15 Subpart B class B) WEEE
Hot-swap Yes
Harmonized System (HS) code 84733080
System requirements
Server operating systems supported Windows Server 2012 R2, Windows Server 2016
Linux operating systems supported SUSE Linux Enterprise Desktop 11, SUSE Linux Enterprise Desktop 12
Compatible operating systems Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 VMware vSphere ESXi 6.0 VMware vSphere ESXi 6.5
Operational conditions
Operating temperature (T-T) 10 - 55 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 20 - 90%
Storage relative humidity (H-H) 5 - 95%
Logistics data
Harmonized System (HS) code 84733080
Other features
PCI Card form factor Full-height (low-profile)
Compatible operating systems Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 VMware vSphere ESXi 6.0 VMware vSphere ESXi 6.5
