APC AR203A NetShelter 4-Post Open Frame Rack 44U Square Holes View larger
Previous Next

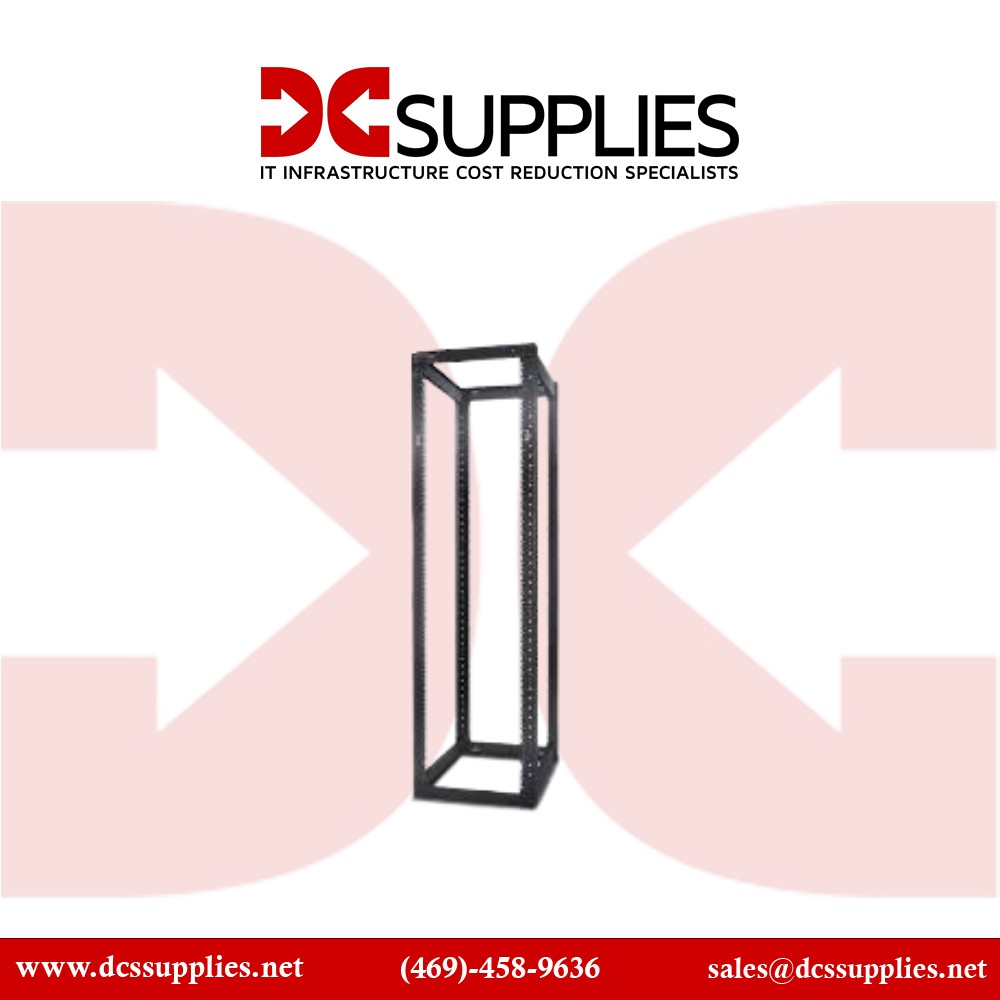

APC AR203A NetShelter 4-Post Open Frame Rack 44U Square Holes

New

In Stock

APC 44U open-frame rack with square holes for flexible IT equipment mounting.
×




$735.95

  • New

Detailed Specifications

APC

AR203A

NetShelter 4‑Post Open Frame Rack – 44U, Square Holes

The APC AR203A NetShelter 44U 4-Post Open Frame Rack is a stable, cost-effective solution designed for IT professionals deploying servers, networking, or telecom equipment in accessible environments. With a 2,000 lb (907 kg) load capacity and industry‑standard square mounting holes, it delivers durability and flexibility while minimizing clutter and airflow restrictions

Features

Featuring EIA‑310 compliant 19‑inch rails with clearly numbered vertical U‑positions, the AR203A allows quick, precise installations. Perforated square holes reduce installation snagging and support universal mounting adaptability

Advanced Options

The four-post structure with reversible stabilizer plates can be mounted internally or externally to save space—while delivering reliable structural integrity and easy access from all sides. Its open design ensures unobstructed airflow, reducing the need for active cooling.

Product Key Features

  • 44U 4‑post open frame with square mounting holes

  • Supports up to 2,000 lb (907 kg) static load capacity

  • Reversible stabilizer plates (internal/external mounting)

  • Numbered U‑position rails for easy device alignment

  • Unobstructed airflow—ideal for server and network hardware

  • EIA‑310 compliant 19‑inch vertical mounting rails

Reliability & Performance

Constructed from high-grade steel, this rack offers rigid support for dense equipment installations. The square-hole design and numbered rails accelerate device alignment, minimizing install time. With no side panels or doors, technicians enjoy full accessibility for cabling and maintenance. In addition, recyclable packaging (≥70% recycled cardboard) and APC’s take-back program align with sustainable practices

Key Features (Bullet List)

  • 44U rack height

  • Four vertical posts with 19″ mounting

  • Square-hole rails for universal hardware

  • 2,000 lb static capacity

  • Reversible stabilizer plates

  • Numbered U‑positions

Specifications :

SpecificationDetails
Model Number AR203A
Product Type 4‑Post Open Frame Rack
Rack Units 44U
Mounting Hole Type Square, 9.5 mm
Load Capacity (Static) 2,000 lb (907 kg)
Height 83.86 in (2,130 mm)
Width 23.62 in (600 mm)
Depth 29.41 in (747 mm) – max equipment depth
Net Weight ~89 lb (40.4 kg)
Rail Standard EIA‑310 compliant
Stabilizer Plates Reversible, internal or external mounting
Cable Access Open-frame, full front/back access
Certifications RoHS, REACH
Environmental Packaging ≥70% recycled cardboard, take-back eligible
Warranty 5‑Year Repair or Replace
