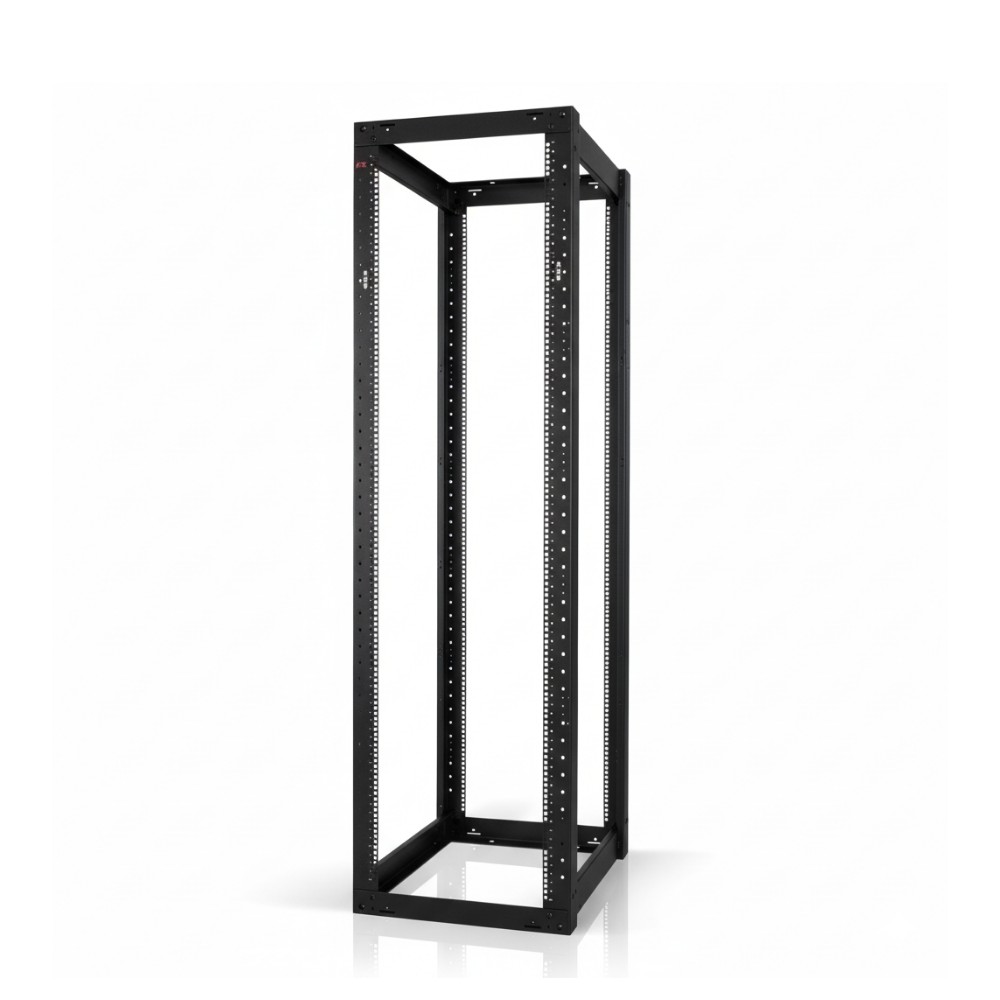

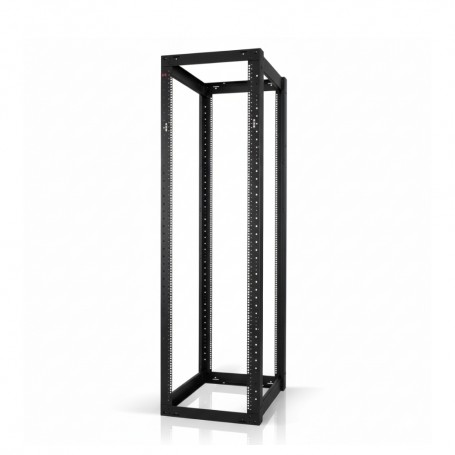

APC AR203A – 44U 4‑Post Open Frame Rack

Overview :

APC AR203A is a four‑post open‑frame server rack designed to mount industry‑standard 19‑inch rack equipment in networking, server room, and data center environments. It is used by IT infrastructure engineers and facilities teams where easy access and airflow optimization are required, without the physical enclosure of a cabinet. The design solves the deployment problem of supporting heavy IT hardware while maximizing front‑and‑rear access for maintenance and cable routing.

Mechanically, AR203A supports up to 44 rack units (44U) of vertical equipment and complies with EIA‑310 mounting standards. The static load capacity is up to 907 kg (2000 lb), supporting heavy servers, switches, PDUs, and UPS systems when anchored properly. This open frame structure uses square hole mounting for universal equipment compatibility.

AR203A fits infrastructure spaces such as data center aisles, IDF/MDF closets, and network closets, where a visible open frame is acceptable or preferred. The open design helps with airflow and cooling because it does not obstruct air paths through active equipment.

Integration with power distribution, cable management accessories, and rack‑mount rail kits is straightforward; vertical PDU mounting options are typically added separately on the rear posts, and cable ladders or rings can be installed to organize cabling. The frame’s black finish aligns with conventional data center aesthetics and integrates into larger APC NetShelter ecosystems.

A practical deployment example is using AR203A to support multiple blade servers, top‑of‑rack switches, and PDUs in a front‑accessible rack within a network operations facility. By leveraging the open format, cooling efficiency increases while technicians can service equipment without removing doors or side panels.

This open frame rack is not suitable where physical security, dust containment, or environmental isolation is required. It does not include side panels, front doors, or locking enclosures; in controlled spaces demanding physical security, a fully enclosed cabinet would be necessary.

Key Features :

• 44U four‑post open frame rack infrastructure

• Standard 19″ EIA‑310 mounting hole pattern

• Static load support up to 907 kg (2000 lb)

• Black finish for data center integration

• Square hole design for tool‑less mounting

Specifications :
