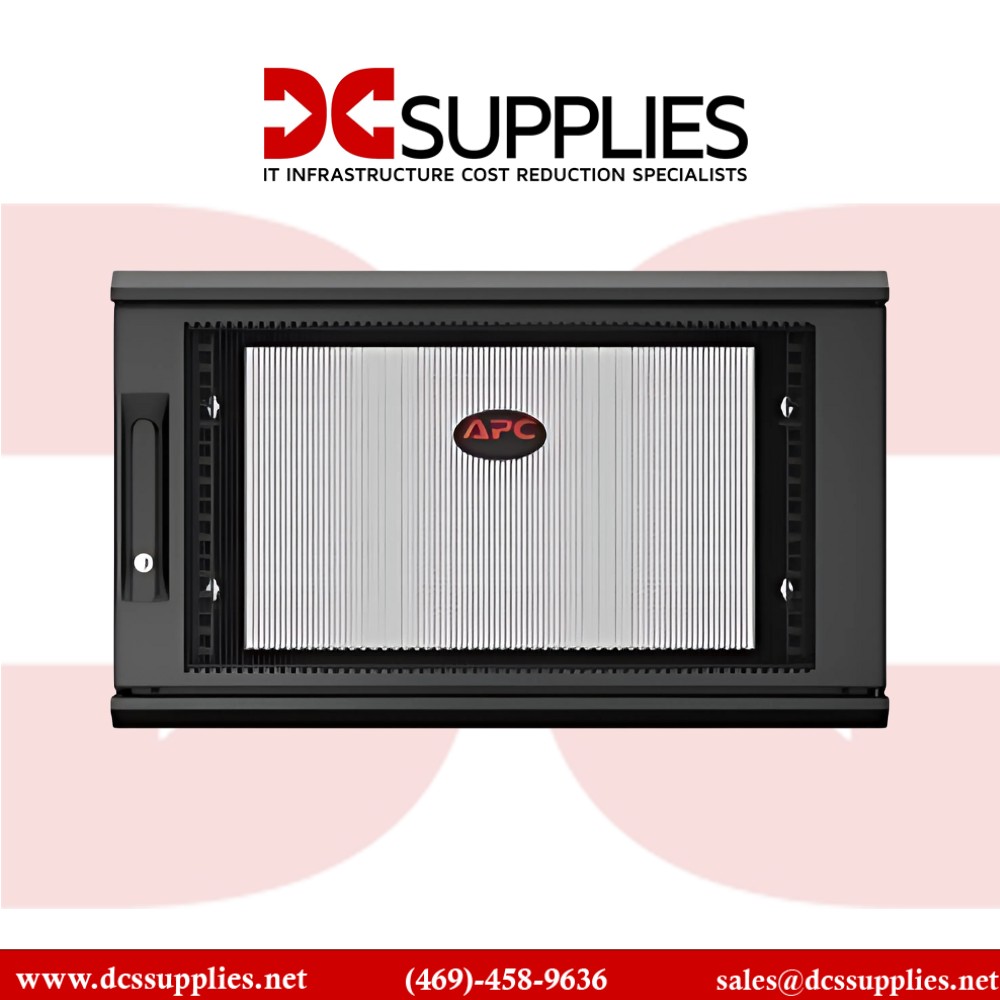

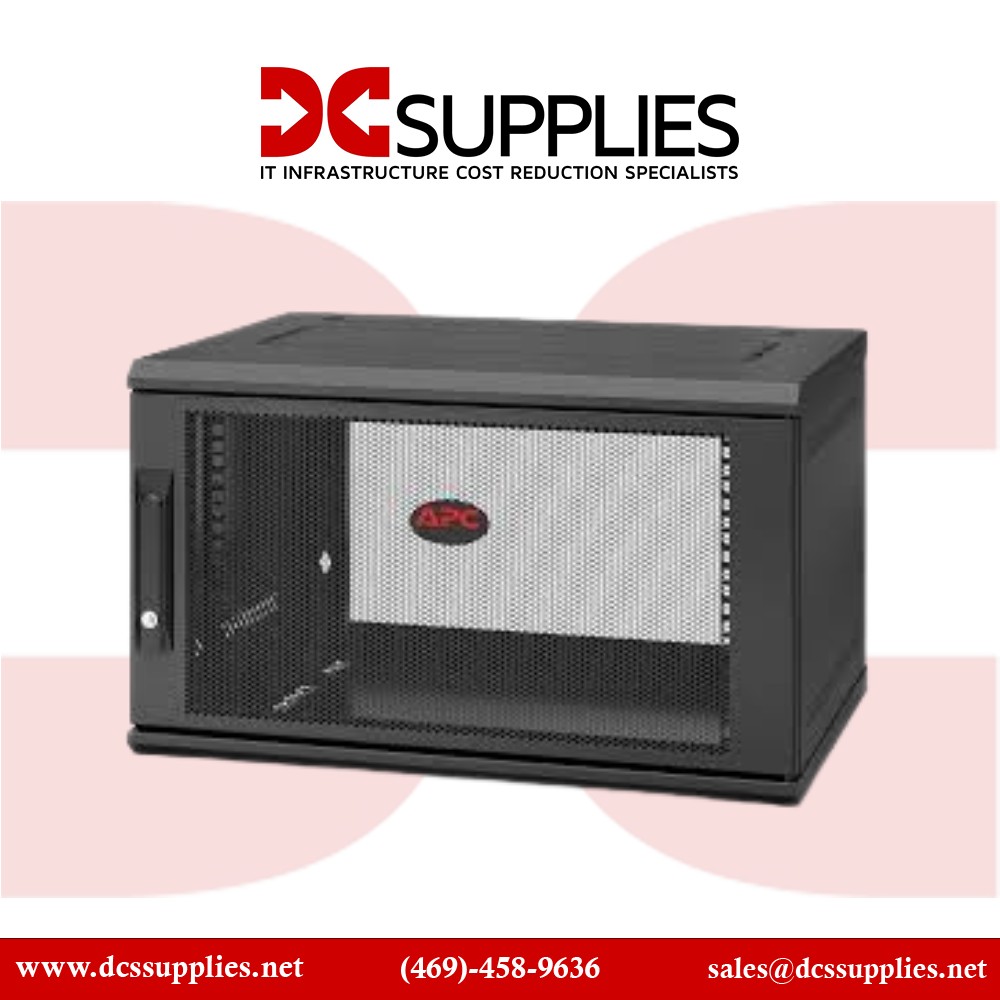

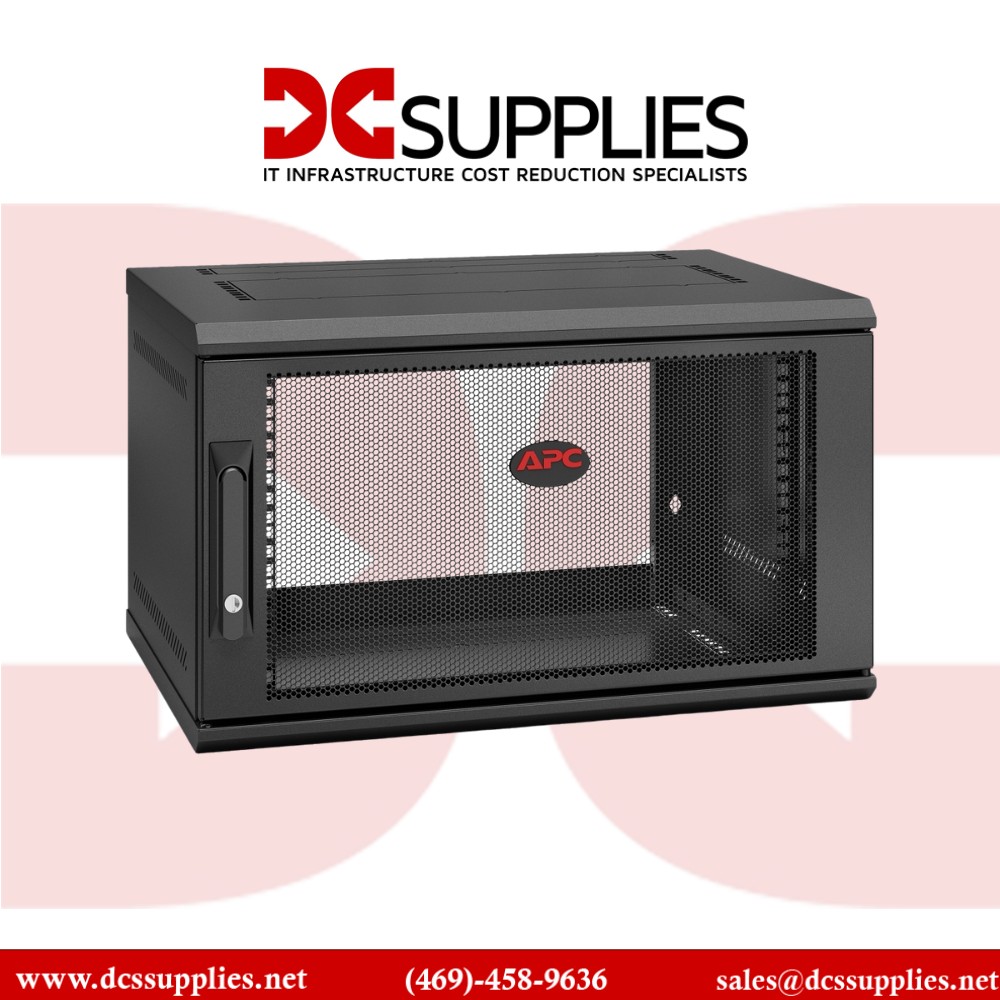

APC AR106SH4 NetShelter WX Rack cabinet 6U

New

Compact 6U wall-mounted rack for IT and network equipment
×




  • New

Detailed Specifications

APC

AR106SH4

NetShelter WX 6U Wall-Mount Rack Cabinet (400 mm Deep, Black)

The APC AR106SH4 NetShelter WX is a compact yet robust 6U wall-mount rack cabinet designed for environments where floor space is at a premium. Ideal for edge computing, branch offices, retail, healthcare, and educational facilities, this enclosure securely houses network switches, patch panels, UPS units, and small servers. It ships fully assembled and shock‑packaged, enabling rapid deployment and reducing installation time, while its reversible, lockable perforated door ensures security and optimal airflow.

Features

The AR106SH4 is tailored for network closets, edge racks, and remote IT deployments. Its welded steel frame is rack-standard EIA-310 compliant, offering adjustable 19″ mounting rails and two vertical zero-U channels for cable managers or vertical PDUs. Ventilated side panels, a mesh front door, and top/bottom 0.5U knockouts support passive airflow or fan tray additions for improved temperature control .

Advanced Options

Delivered fully assembled and shock-packaged, the cabinet streamlines field deployment and reduces installation errors. Its reversible single-hinged door facilitates flexible installations, while lockable panels fortify physical security. With RoHS/REACH compliance and grounding features included, AR106SH4 meets enterprise safety and environmental standards.

Product Key Features

  • 6U wall-mount enclosure, 19″ EIA standard rails

  • 400 mm external depth; supports ≤329 mm equipment depth

  • 200 lb static load capacity

  • Fully assembled with shock-resistant packaging

  • Reversible, locking, perforated front door

  • Built-in cable knockouts and zero-U accessory channels

Reliability & Performance

Engineered for durability and long-term reliability, the AR106SH4 withstands heavy-duty use while minimizing field service time. Its welded steel construction ensures structural integrity under load, and perforated door/panel design maintains efficient side-to-side airflow—ideal for networking gear . Pre-assembled and shock-packaged, it’s designed to mitigate shipping damage, reducing deployment delays. Locking panels and included grounding provisions uphold operational safety. The zero-U channels and accessory knockouts allow neat cable routing and accessory integration without sacrificing rack space.

Key Features :

  • 6U, 19″ wall-mount cabinet

  • 400 mm depth; ≤329 mm usable equipment depth

  • 200 lb static load capacity

  • Fully assembled, shock-resistant packaging

  • Lockable, reversible perforated door

  • Side panels and top/bottom cable knockouts

  • Two vertical zero-U accessory channels

  • RoHS/REACH compliant; includes grounding studs

Specifications :

SpecificationDetails
Model Number AR106SH4
Product Type Wall-Mount Rack Cabinet (NetShelter WX series)
Rack Units 6U
Mounting Standard 19″ (EIA-310)
External Dimensions (HxWxD) 355 × 600 × 400 mm (13.98″ × 23.6″ × 15.7″)
Max Equipment Depth 329 mm (12.95″)
Static Load Capacity 90 kg (200.4 lb)
Net Weight 11.1 kg (24.5 lb)
Construction Welded steel; perforated front door
Door Style Single-hinged, reversible, lockable
Side Panels Removable, locking
Accessory Channels Two vertical zero-U channels
Cable Knockouts Top/bottom 0.5U for accessories
Cooling Passive airflow; optional fan tray support
Compliance RoHS, REACH, UL 2416
Warranty 5-year repair-or-replace
