Detailed Specifications

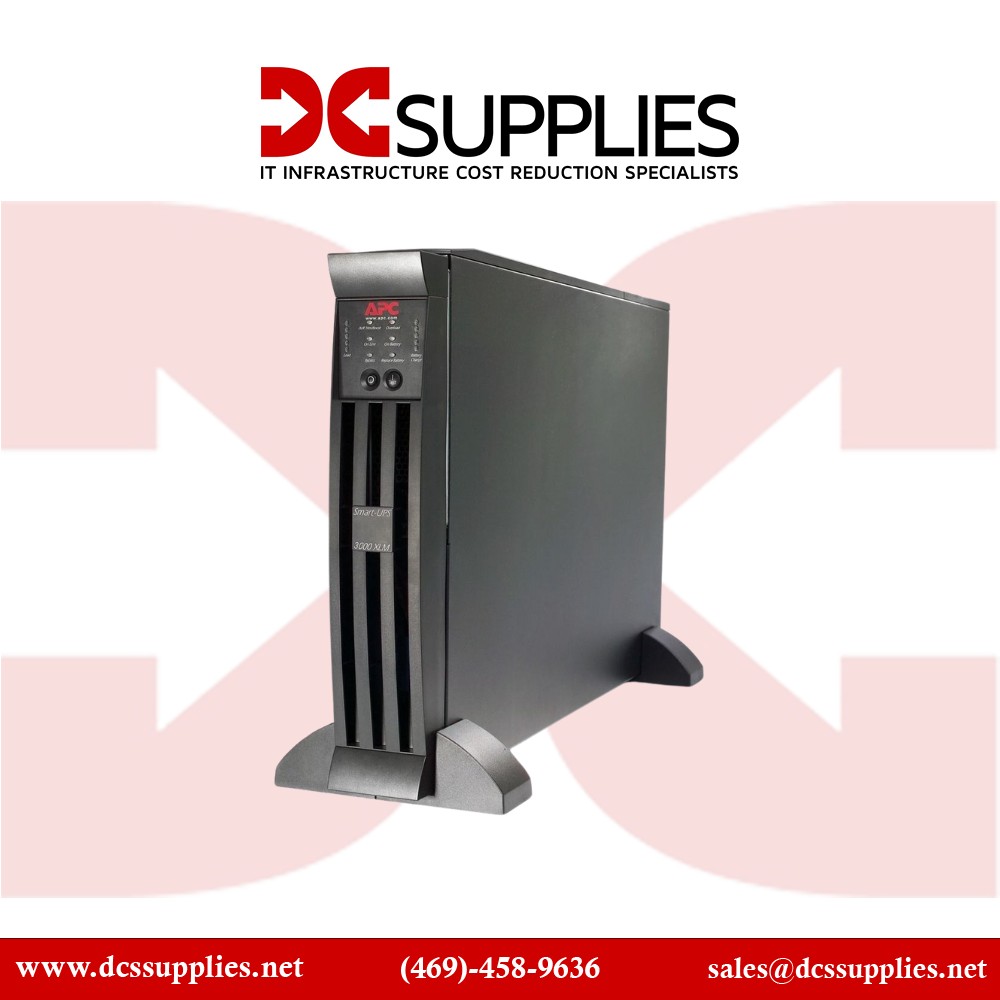

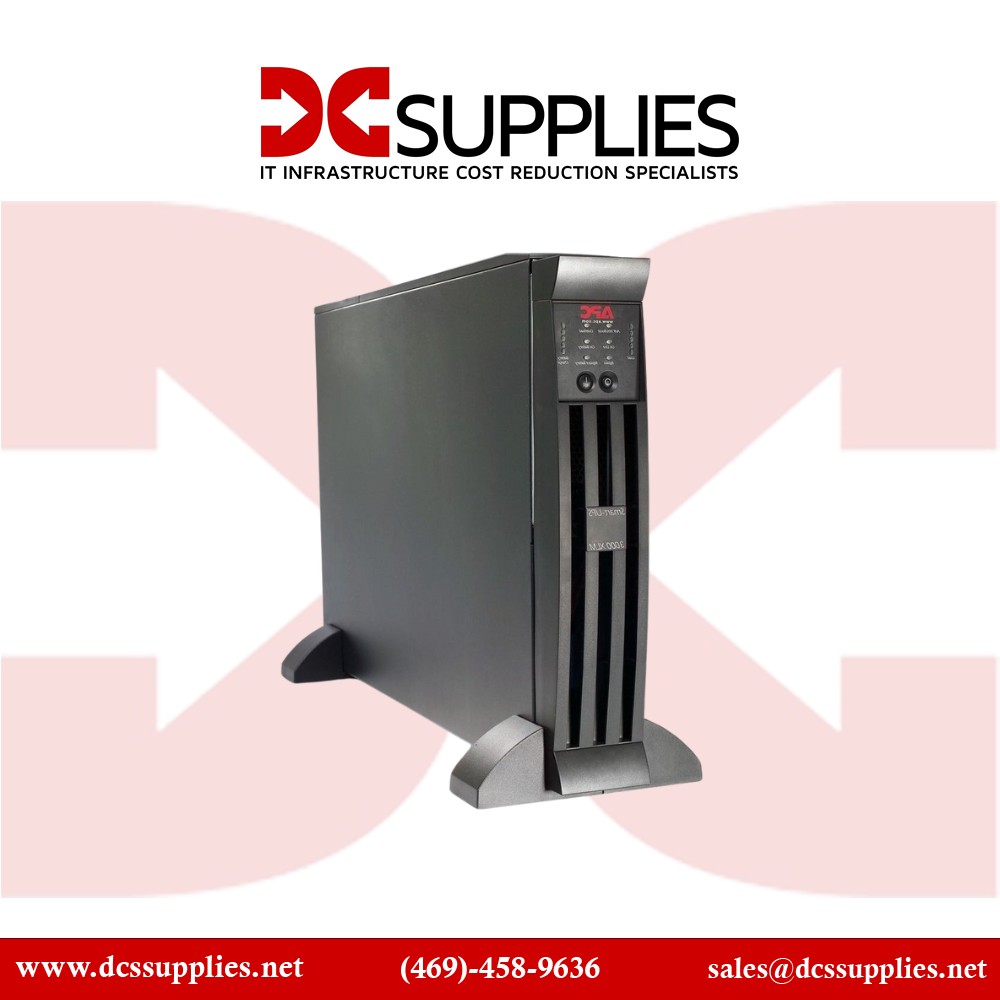

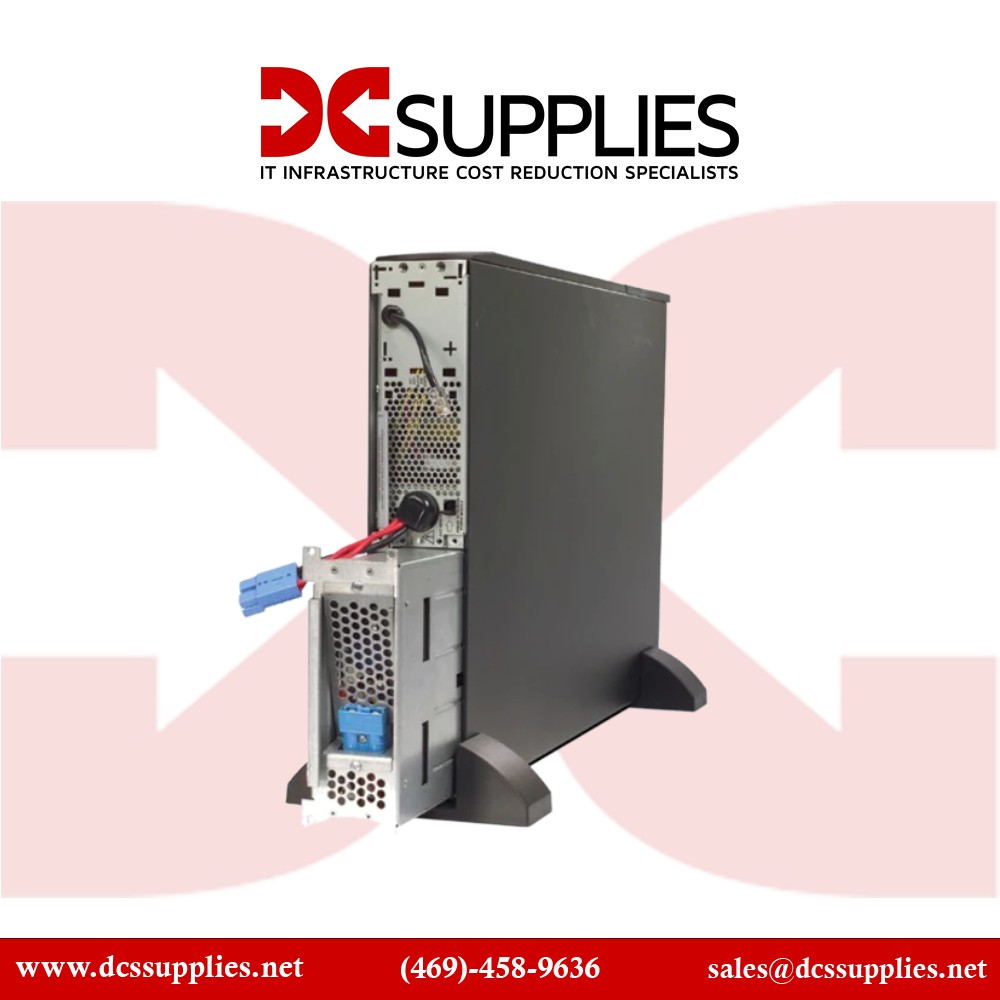

APC Smart-UPS XL Modular 1500VA Rackmount/Tower - 1440VA/1425W
Smart-UPS XL Modular 1500VA Rackmount/Tower protects your data by supplying reliable, network-grade power. VoIP, e-commerce, WiFi , and data enabled PBX's are a few of the applications driving the need for Smart-UPS XL. This is also the perfect UPS for file servers, minicomputers, Network switches and hubs, ATM's, telecommunications systems and other mission-critical applications requiring longer runtime.With included PowerChute management software for servers and workstations, IT administrators can provide safe system shutdown and advanced UPS management. Connectivity is through a serial or USB port. Additional manageability is available through the SmartSlot. Intelligent Battery Management ensuring a highly available UPS and an advanced 16 segment bar graph display ensuring information and management, the Smart-UPS XL is a UPS you can count on.
| Basic |
|---|
| Backup/Run Time (Full Load): |
11.90 Minute |
| Backup/Run Time (Half Load): |
28.30 Minute |
| Brand Name: |
APC by Schneider Electric |
| Form Factor: |
Rack/Tower |
| Hot Swappable: |
Yes |
| Input Voltage: |
110 V AC |
| Network (RJ-45): |
Yes |
| Plug/Connector Type: |
NEMA 5-15P |
| Product Type: |
Line-interactive UPS |
| Rack Height: |
2U |
| Receptacles: |
8 x NEMA 5-15R |
| Battery Information |
|---|
| Backup/Run Time (Full Load): |
11.90 Minute |
| Backup/Run Time (Half Load): |
28.30 Minute |
| Battery Chemistry: |
Sealed Lead Acid (SLA) |
| Hot Swappable: |
Yes |
| Controls/Indicators |
|---|
| Status Indicators: |
LED status display with:
- Load bar-graphs
- Battery bar-graphs
- On Line
- On Battery
- Replace Battery
- Overload
- Bypass
|
| Environmental Conditions |
|---|
| Maximum Operating Temperature: |
131°F (55°C) |
| Sound Emission: |
55 dB(A) |
| Thermal Dissipation: |
87.92 W |
| General Information |
|---|
| Brand Name: |
APC by Schneider Electric |
| Manufacturer: |
Schneider Electric SA |
| Manufacturer Part Number: |
SUM1500RMXL2U |
| Manufacturer Website Address: |
http://www.schneider-electric.com |
| Product Line: |
Smart-UPS |
| Product Name: |
Smart-UPS XL Modular 1500VA Rackmount/Tower |
| Product Series: |
XL |
| Product Type: |
Line-interactive UPS |
| Interfaces/Ports |
|---|
| Network (RJ-45): |
Yes |
| Serial Port: |
Yes |
| USB: |
Yes |
| Management |
|---|
| Alarm: |
Configurable Delay |
|
Low Battery |
|
On Battery |
| Battery Management: |
Intelligent Battery Management |
| Network Management: |
SNMP Manageable |
| Miscellaneous |
|---|
| Additional Information: |
- Replacement battery cartridge quantity: 1
- Units per Pallet: 8.00
- Modular design
- Remote group outlet control
- USB connectivity
- User-replaceable modules
- Adjustable voltage sensitivity
- Automatic Voltage Regulation (AVR)
- Generator compatible
- Power conditioning
|
| Certifications & Standards: |
- UL 1449
- UL 1778
- BSMI
- CSA
- FCC Part 15 Class A
- NOM
- VCCI
|
| Package Contents: |
- Smart-UPS XL Modular 1500VA Rackmount/Tower
- CD with software
- Installation Guide
- Rack Mounting Brackets
- Rack Mounting support rails
- Smart UPS signalling RS-232 cable
- USB cable
- User Manual
- Web/SNMP Management Card
|
| Physical Characteristics |
|---|
| Color: |
Black |
| Depth: |
26.7" |
| Form Factor: |
Rack/Tower |
| Height: |
3.4" |
| Rack Height: |
2U |
| Weight (Approximate): |
103 lb |
| Width: |
17" |
| Power Description |
|---|
| Input Voltage: |
110 V AC |
| Load Capacity: |
1440 VA/1425 W |
| Output Voltage: |
120 V AC |
| Surge Energy Rating: |
540 J |
| Technical Information |
|---|
| Bypass Switch: |
Automatic & Manual |
| Cord Length: |
10 ft |
| Emergency Power OFF: |
Optional |
| Plug/Connector Type: |
NEMA 5-15P |
| Receptacles: |
8 x NEMA 5-15R |
| Warranty |
|---|
| Limited Warranty: |
2 Year |
