Detailed Specifications

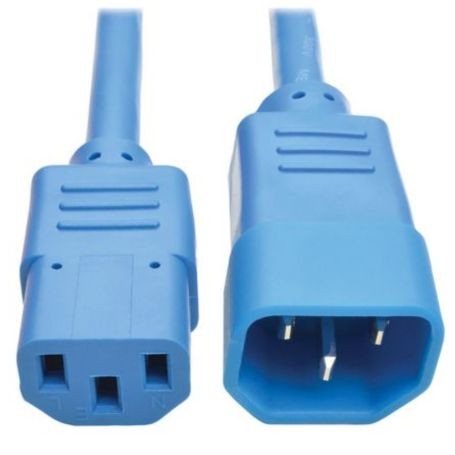

Eaton P005-003-ABLTripp Lite 3ft Heavy Duty PDU Power Cord C13 C14 15A 250V
Overview

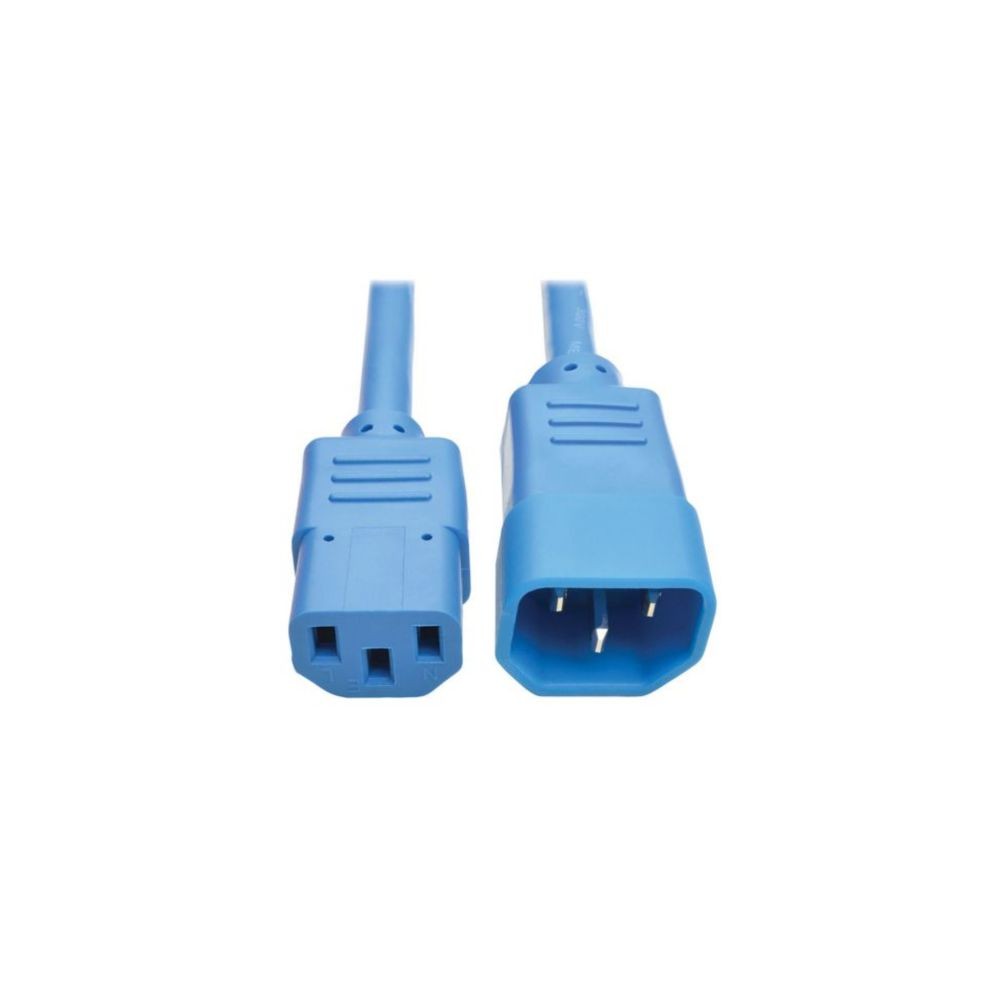

The Eaton P005-003-ABL is a heavy-duty PDU-style power extension cord with an IEC 320-C14 male connector and IEC 320-C13 female connector. It is designed for computers, servers, PDUs, UPS systems, network switches, monitors, printers, and other equipment using C13/C14 connections.
The 14 AWG, three-conductor SJT cable is rated for 15A and 100-250VAC, providing a higher-capacity alternative to lighter-duty power cords. Its 3 ft length supports short rack and workstation connections while limiting excess cable.
The blue jacket and molded blue connectors provide visual identification in dense rack environments. It is suitable where the connected equipment uses compatible IEC C13/C14 interfaces and the circuit rating supports the required load. It should not be used where equipment requires a different connector, higher current rating, or a longer cable run.
Key Features
- 15A, 100-250VAC rating supports high-power equipment
- 14 AWG SJT cable provides robust power delivery
- C14 male to C13 female supports PDU connections
- 3 ft length reduces excess cable in dense racks
- Blue molded ends simplify cable identification
Specifications
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | P005-003-ABL |
| Product Type | PDU power cord |
| Connector A | IEC 320-C14 male |
| Connector B | IEC 320-C13 female |
| Current Rating | 15A |
| Voltage Rating | 100-250VAC |
| Cable Length | 3 ft (0.91 m) |
| Wire Gauge | 14 AWG |
| Number of Conductors | 3 |
| Cord Type | SJT |
| Outer Cable Diameter | 9.3 mm |
| Jacket Material | PVC |
| Jacket Rating | VW-1 |
| Jacket/Connector Color | Blue |
| Operating Temperature | -20°C to 60°C |
| Operating Humidity | 10%-65% RH |
| Certifications | UL Listed, cUL Listed, CSA Certified |
| Compliance | RoHS, REACH |
