APC AP9567 Basic Rack PDU 14 Outlets, 120V, 12A, 0U Vertical Mount View larger
Previous Next

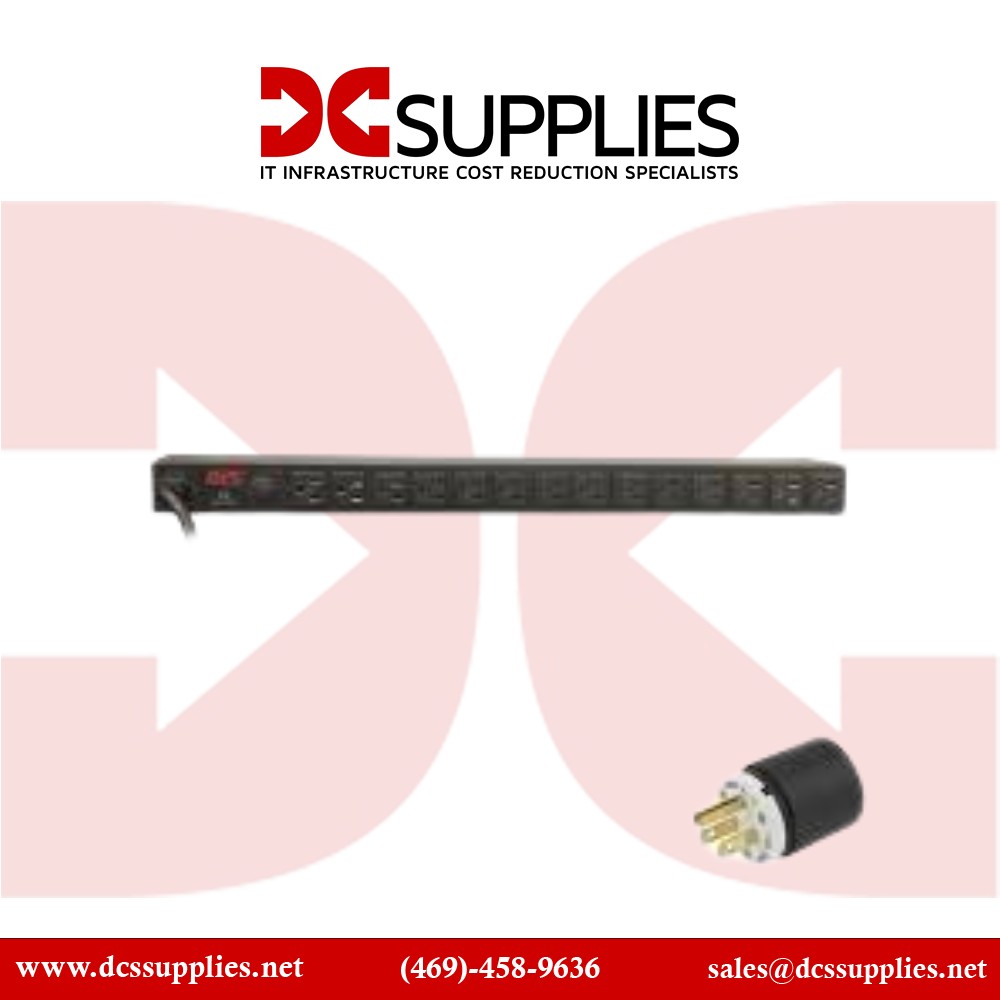

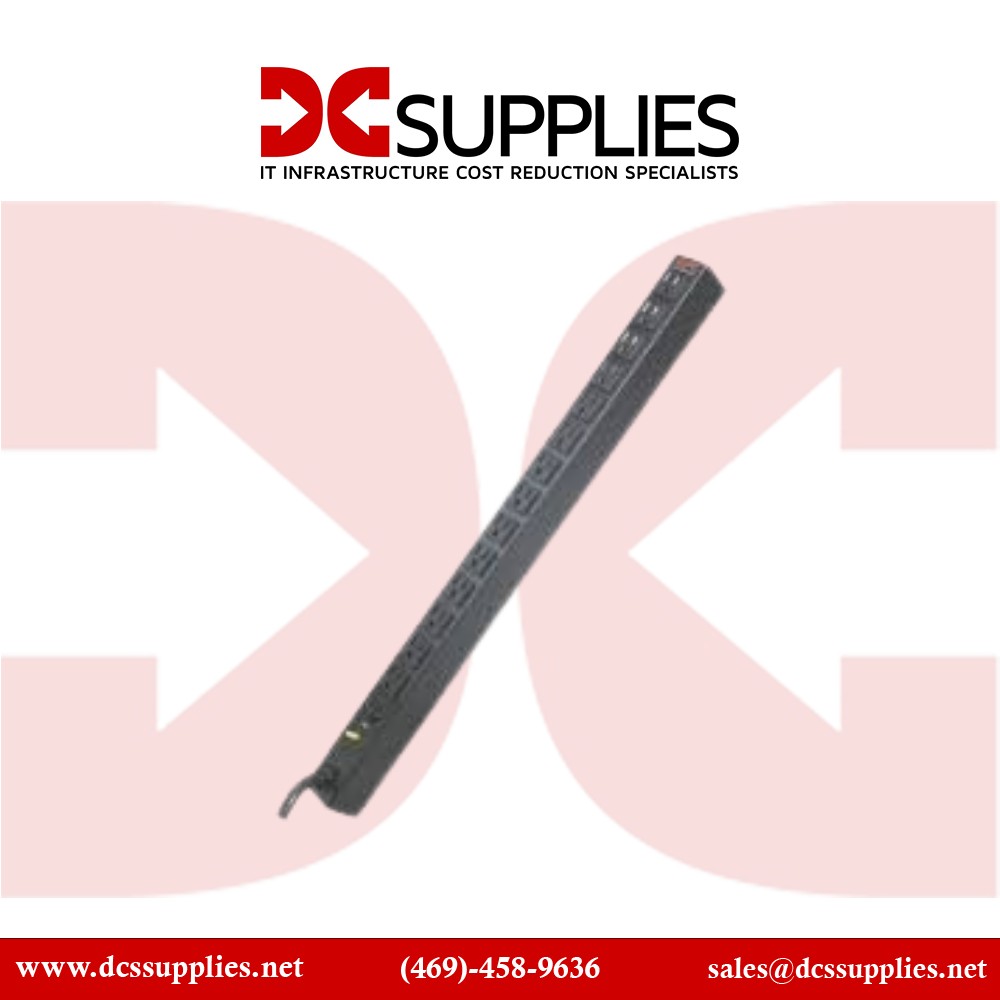

APC AP9567 Basic Rack PDU 14 Outlets, 120V, 12A, 0U Vertical Mount

New

In Stock

APC AP9567 0U Basic Rack PDU with 14 NEMA 5-15R...

×




$264.90

  • New

Detailed Specifications

APC

AP9567

Basic Rack PDU – 14‑Outlet, 120 V, 12 A, 0U Vertical Mount

The APC AP9567 Basic Rack PDU delivers reliable 120 V power through 14 NEMA 5‑15R outlets, all while occupying zero U of rack space. This vertical, tool‑less mount PDU is designed for IT professionals managing servers, switches, and network gear in space‑constrained environments.

Features

This unit is ideal for data centers and network closets that require clean, organized power management. With a standard NEMA 5‑15P plug and 3.66 m power cord, it connects easily to existing outlets. The 0 U design mounts vertically along the rear of rack rails, preserving valuable rack units for equipment

Advanced Options

Built‑in overload protection allows quick recovery from electrical faults, with capacity ratings of 12 A continuous and 15 A max input (1,400–1,800 VA)  UL/cUL, CSA and METI certifications ensure safe deployment across North America

Product Key Features

  • 14 × NEMA 5‑15R outlets for wide device connectivity

  • Standard NEMA 5‑15P input with a 3.66 m cord

  • Vertical 0U, tool‑less rack mounting

  • Overload protection and fast recovery

  • Rated for 12 A continuous, 15 A peak

  • UL/cUL/CSA/METI certified; RoHS compliant

Reliability & Performance

Constructed for continuous operation from 0–45 °C and up to 10,000 ft elevation, the AP9567 is robust in varied environments  Its steel housing, reliable connectors, and heat dispersion help maintain consistent power delivery. APC’s 2‑year repair-or-replace warranty and sustainable packaging—70% recycled cardboard—demonstrate commitment to quality and eco-friendliness

Key Features (Bullet List)

  • 14 NEMA 5‑15R outlets

  • 120 V input, NEMA 5‑15P plug

  • 12 A continuous, 15 A max (1,400–1,800 VA)

  • Vertical, 0 U rack mounting, tool‑less

  • Built-in overload protection

  • Certified: UL/cUL, CSA, METI; RoHS compliant

Specifications :

SpecificationDetails
Model Number AP9567
Product Type Basic Rack PDU, vertical 0U
Input Voltage 100–125 VAC
Input Plug NEMA 5‑15P
Cord Length 3.66 m (12 ft)
Current Rating 12 A continuous; 15 A maximum
Power Capacity 1,400 VA (North America derated) / 1,800 VA max
Output Outlets 14 × NEMA 5‑15R
Overload Protection Yes
Mounting Type Vertical, zero‑U; tool‑less brackets included
Dimensions (H×W×D) 610 × 44 × 44 mm (24.02″×1.73″×1.73″)
Weight (Net / Shipping) 2.18 kg / 2.92 kg (4.81 lb / 6.44 lb)
Operating Temp/Humidity 0–45 °C; 0–95 % RH
Certifications UL, cUL, CSA, METI Denan; RoHS, California 65
Warranty 2 years (repair or replace)
