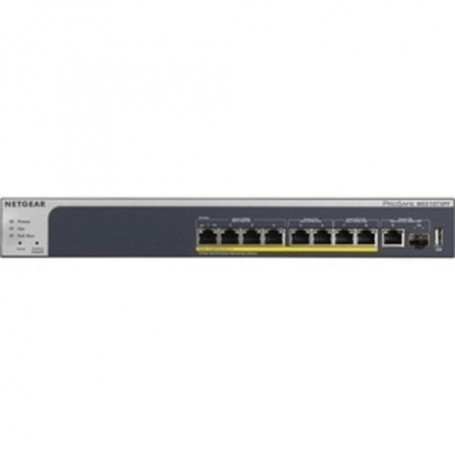

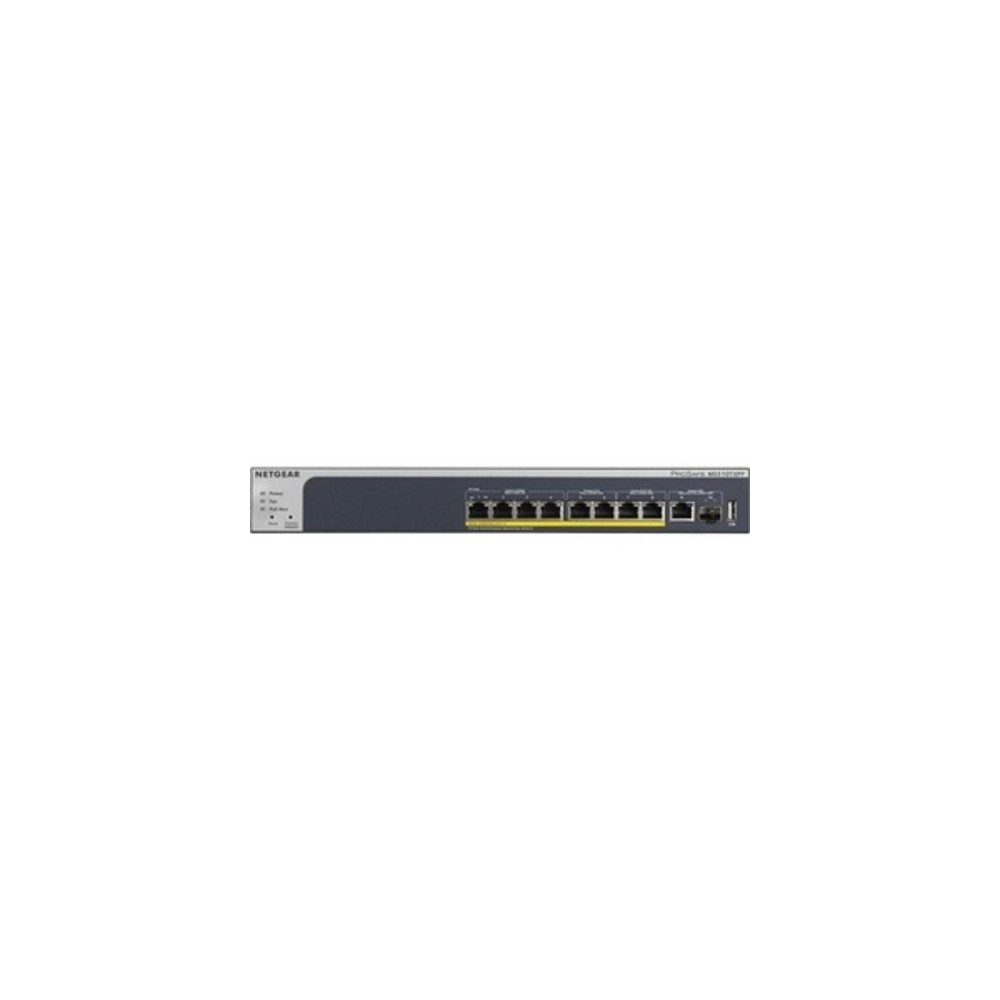

Netgear MS510TXPP Ethernet Switch - 9 Ports - Manageable - 2 Layer Supported View larger

NETGEAR MS510TXPP-100NAS 10-Port PoE 10G Multi-Gigabit Smart Switch



In Stock

NETGEAR MS510TXPP-100NAS 10-Port PoE 10G Multi-Gigabit Smart Switch


MS510TXPP-100NAS, MS510TXPP-100NAS NETGEAR, MS510TXPP-100NAS access, MS510TXPP-100NAS switch, MS510TXPP-100NAS 10-Port, MS510TXPP-100NAS gigabit, MS510TXPP-100NAS 10 port, MS510TXPP-100NAS PoE, MS510TXPP-100NAS review, MS510TXPP-100NAS manual, MS510TXPP-100NAS datasheet, NETGEAR MS510TXPP-100NAS, NETGEAR MS510TXPP-100NAS 10-Port, MS510TXPP-100NAS 10-Port PoE, MS510TXPP-100NAS 10G


Detailed Specifications

NETGEAR 10-Port PoE 10G Multi-Gigabit Smart Switch (MS510TXPP-100NAS) - Managed, with 8 x PoE+ @ 180W, 1 x 10G, 1 x 10G SFP+, Desktop or Rackmount, and Limited Lifetime Protection

Overview MS510TXPP-100NAS:

Introducing a new Gigabit, Multi-Gigabit and 10-Gigabit Smart Managed Pro Switch Family for future-proof deployments

Businesses need to be ready for future expansion: with incoming new multispeed devices, their wired network needs to expand its reach and scope to support speeds greater than 1 Gigabit. The IEEE 802.3bz standard paved the way for new 2.5 Gigabit and 5 Gigabit speeds in addition to legacy 1 Gigabit and 10 Gigabit per second. New servers, workstations, storage devices, and motherboards are coming with 802.3bz (NBASE-T) Multi-Gigabit Ethernet for 2.5X to 5X faster speeds up to 100 meters (323 feet) on legacy CAT5e / CAT6 cables.

That is why NETGEAR MS510TXPP-100NAS launched its new Multi-Gigabit Smart Managed Pro Switches with 10G Copper/Fiber Uplinks. Each port automatically detects which speed is needed by the connected device and provides the adequate speed. As opposed to regular 10-Gigabit switches that will only provide 1-Gigabit connectivity to any device that requires less than 10-Gigabit, the MS510TX and MS510TXPP give the exact speed required, with no downgrade. Also, the new NETGEAR MS510TXPP-100NAS Multi-Gigabit switch ports can connect regular CAT5e Ethernet cables, without the need to upgrade to CAT6 wiring, therefore reducing wiring costs and hassle.

Access, Aggregation or Collapsed Core: You can now have your PCs, printers and routers/firewalls connected at 1G and aggregate Multi-Gigabit Ethernet new devices on the same switch, all line-rate. 10G copper and fiber ports are ready for local servers and storage, or high-speed aggregation to your network core.

Features MS510TXPP-100NAS:

  • MS510TXPP: 180W PoE budget available across 8 Gigabit and Multi-Gigabit PoE+ ports (802.3at)
  • Multi-Gigabit, multi-speed ports to connect any type of device to a single switch
  • Quiet desktop operation or rack mounting with 21dB (MS510TX) or 28.8dB max (MS510TXPP) at 25°C (77°F) ambient
  • Layer 3 static routing with 32 routes (IPv4 and IPv6) for interVLAN local routing
  • Non-blocking 78Gbps fabric for 2x5Gbps+ 2x2.5Gbps+4x1Gbps+2x10Gbps full duplex switching and routing
  • Advanced VLAN support for better network segmentation
  • L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication
  • MS510TXPP: Advanced per port PoE controls for remote power management of PoE connected devices including operation scheduling (e.g. Wireless APs, IP security cameras, LED lighting, secure access door locks, IoT devices...)
  • Advanced QoS (Quality of Service) for traffic prioritization including port-based, 802.1p and L2/L3/L4 DSCP-based
  • Auto "denial-of-service" (DoS) prevention

Specifications MS510TXPP-100NAS:

Interfaces MS510TXPP-100NAS
Inputs/Outputs 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
2 x 2.5 Gb/s Ethernet (RJ45) PoE+
2 x 5 Gb/s Ethernet (RJ45) PoE+
1 x 10Gb Ethernet (RJ45) (Uplink)
1 x 10Gb SFP+
1 x USB-A
Protocols MS510TXPP-100NAS
Layer Services Supported Layer 2 Support, Layer 3 Support
Supported Protocols Auto-MDIX/MDI
IGMP Snooping
Port Mirroring
Queuing Strict Priority, Weighted Round Robin (WRR)
Transmission Method Store-and-Forward
Jumbo Frames Support 10,000 Bytes
MAC Address Table Size 16K
Multicast Groups 512
VLAN Groups 256
Security MS510TXPP-100NAS
Security Features DHCP Snooping
DoS Attack Prevention
Access Control List 164
Static Routes 32
SNMP Support 1, 2c, 3
Standards MS510TXPP-100NAS
RFC RFC 3164
Supported IEEE Standards 802.1ab, 802.1d, 802.1p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3ae, 802.3an, 802.3az, 802.3q, 802.3u, 802.3x, 802.3z
Performance MS510TXPP-100NAS
Latency 2.4 to 19.4 µs
Forwarding Rate 58 Mpps
Switching Bandwidth 78 Gb/s (Non-Blocking)
Priority Queues 8
Packet Buffer 1.5 MB
Computer MS510TXPP-100NAS
Flash Memory 256 MB
RAM Buffer 512 MB per Device
CPU  to 800 MHz Dual-Core
Memory 512 MB
Electrical MS510TXPP-100NAS
Power Draw 234.31 W (Max)
PoE Power Budget 180 W
PoE per Port 32 W
Environmental MS510TXPP-100NAS
Operating Temperature 32 to 82°F / 0 to 50°C
Operating Humidity 95%
Storage Temperature -4 to 158°F / -20 to 70°C
Storage Humidity 95%
Operating Altitude 10,000' / 3048 m
Storage Altitude 10,000' / 3048 m
Noise Level 28.8 dB
General MS510TXPP-100NAS
Cooling System Fan
Mean Time Between Failures (MTBF) 376,434 Hours
Indicator Lights Fan, Link/Activity/Speed, PoE, Power
Dimensions 13 x 8.1 x 1.7" / 330 x 206 x 43 mm
Weight 5.53 lb / 2.51 kg
Packaging Info MS510TXPP-100NAS
Package Weight 5.85 lb
Box Dimensions (LxWxH) 18 x 9 x 3"
