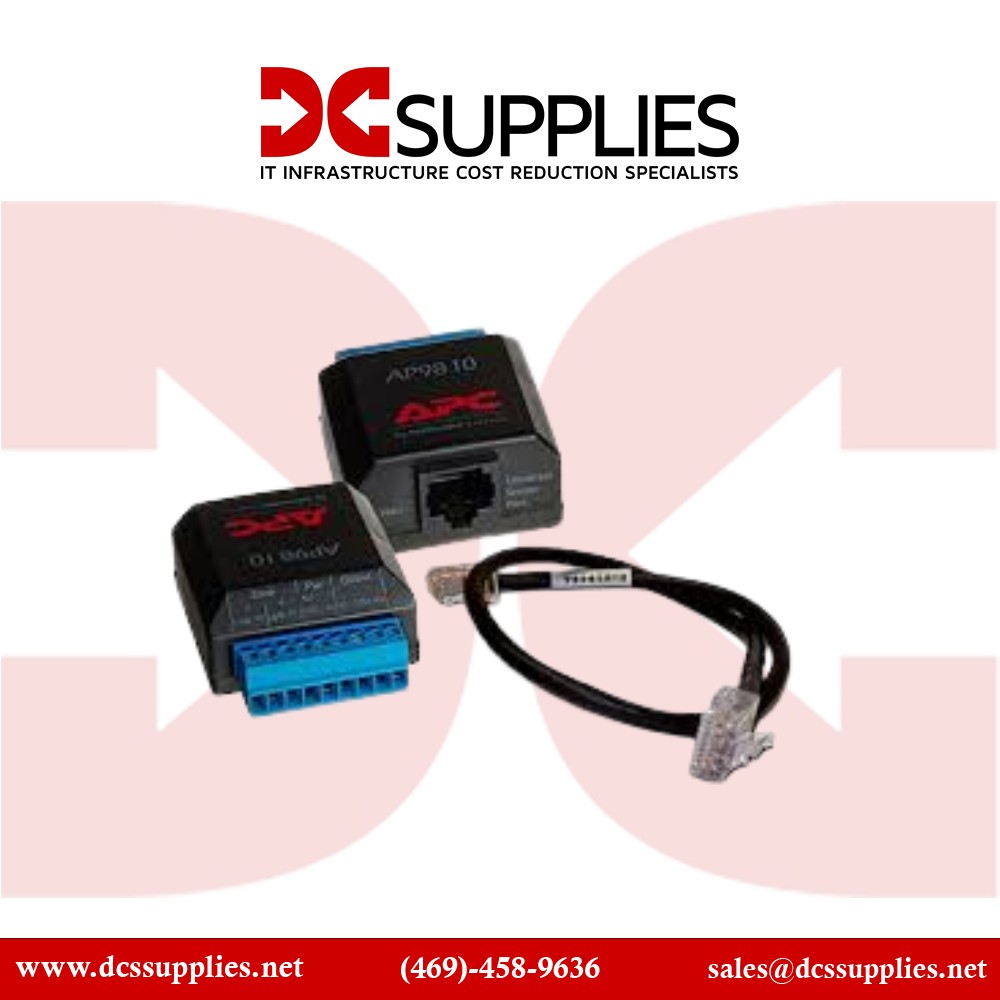

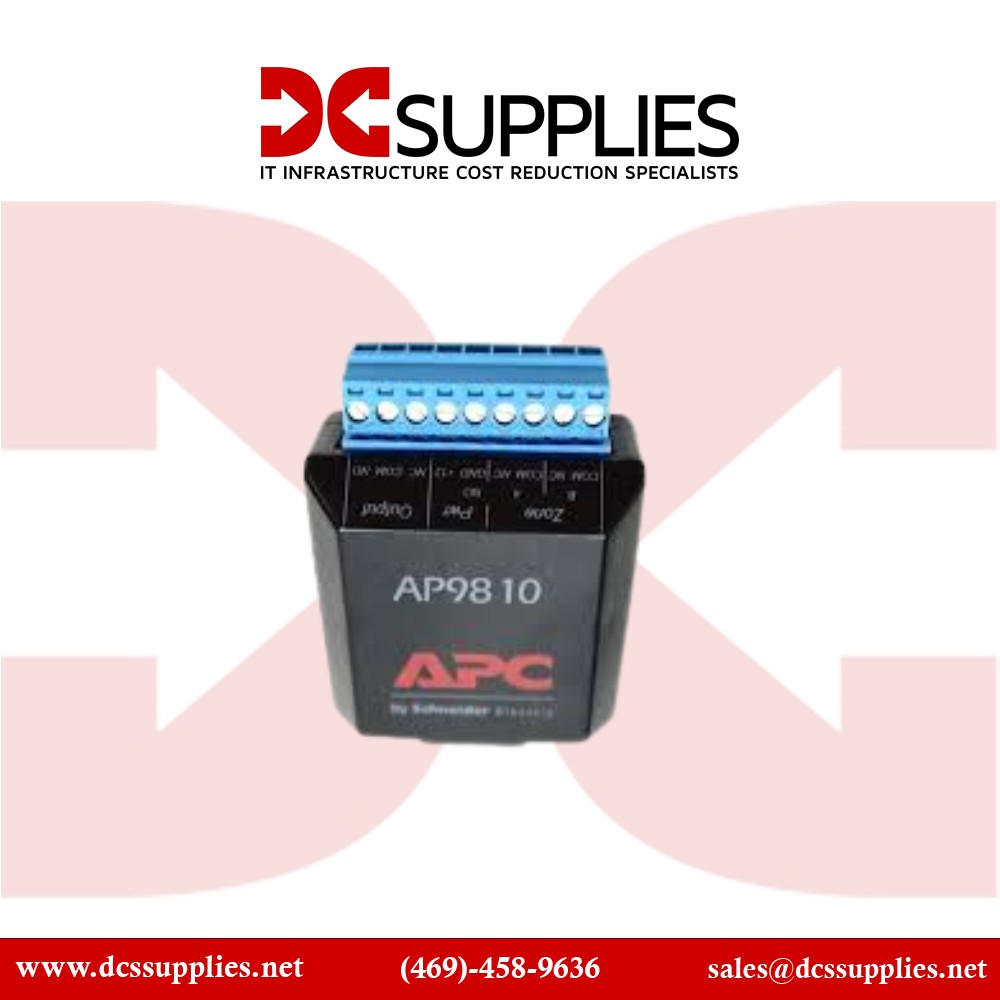

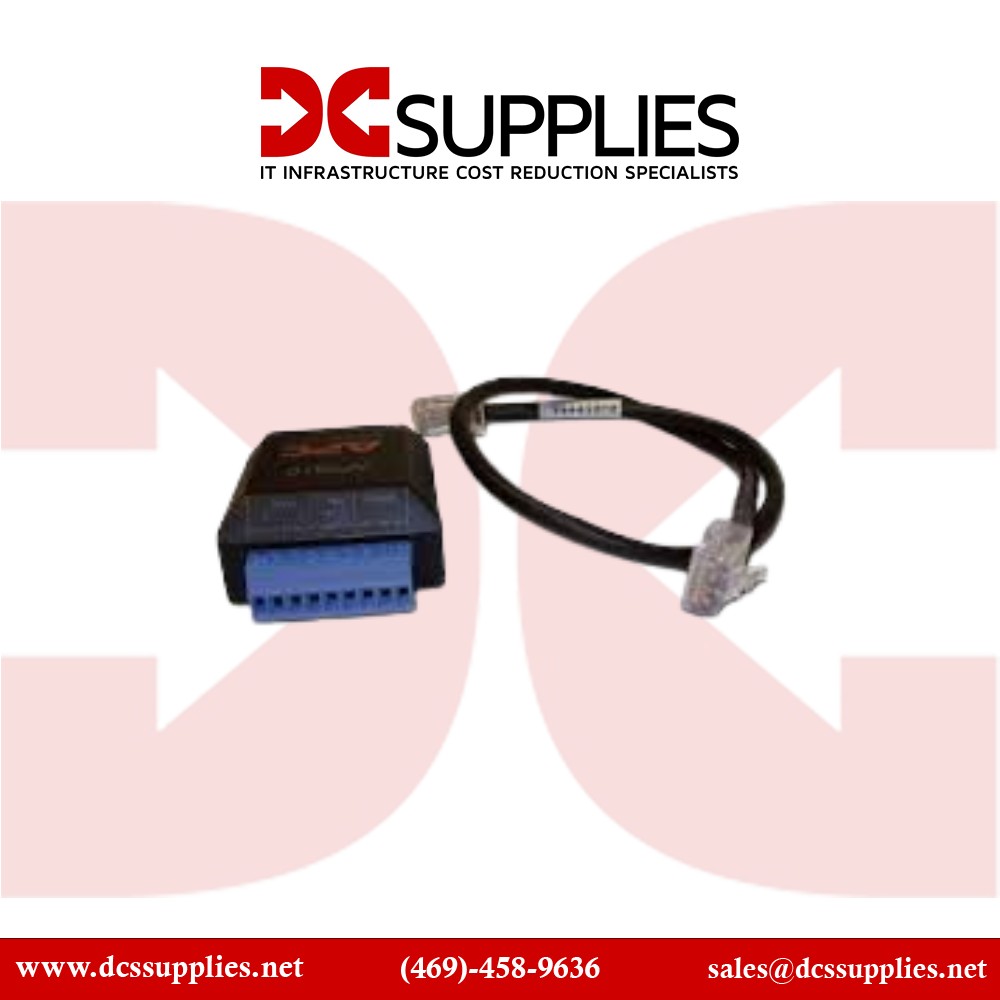

APC AP9810 Dry Contact I/O Accessory Network Adapter Kit Black

New

In Stock

APC Dry contact I/O accessory for UPS monitoring and remote management.
×




$142.95

  • New

Detailed Specifications

APC

AP9810

Dry Contact I/O Accessory – Network Adapter Kit, Black

The APC AP9810 adds two dry-contact inputs and one relay output to Network Management Cards (e.g., AP9631/AP9635), enabling integration with external sensors and control devices. It's ideal for IT professionals requiring enhanced UPS monitoring or environmental system alarms.

Features

Plugging into the management card’s Universal I/O, the AP9810 offers two discreet dry-contact inputs (Zones A & B) and a Form-C relay output. Through the UPS’s web interface, you can customize which events—like temperature alarm, door open, or battery failure—trigger alerts or control external equipment. Installation is tool-free, with wiring via screw terminals and communication over a provided CAT‑5e cable.

Advanced Options

Plugging into the management card’s Universal I/O, the AP9810 offers two discreet dry-contact inputs (Zones A & B) and a Form-C relay output. Through the UPS’s web interface, you can customize which events—like temperature alarm, door open, or battery failure—trigger alerts or control external equipment. Installation is tool-free, with wiring via screw terminals and communication over a provided CAT‑5e cable.

Product Key Features

  • Adds 2 dry-contact inputs and 1 Form‑C relay output

  • Includes 12 VDC, 25 mA power output for sensors

  • Connects via CAT‑5e cable to APC Management Card

  • Configurable alerts and automation via Network Management interface

  • Compact black metal housing, rack-mountable width

  • Sealed connectors with screw-terminal blocks for 16–28 AWG wiring

Reliability & Performance

Housed in a sturdy, rack-width metal case, the AP9810 is suited for data centers and industrial installations. Inputs support passive sensor connections (<1 mA sensing current), while the relay switches up to 1 A at 30 VDC. Durable enough for continuous operation from 0–40 °C, it also meets key electromagnetic immunity standards (EN 61000‑4‑2/3/4/6). The unit’s power adapter delivers stable 24 V input to power its internal electronics.

Key Features (Bullet List)

  • 2x dry-contact input zones (A & B)

  • 1x Form‑C relay output

  • 12 V, 25 mA sensor power output

  • CAT‑5e cable interface

  • Screw-terminal block (16–28 AWG)

  • Configurable via Network Management Card

Specifications :

SpecificationDetails
Model Number AP9810
Product Type Dry Contact I/O Accessory Kit
Inputs 2 x dry-contact zones (A & B)
Relay Output 1 x Form‑C relay
Power Output 12 VDC, 25 mA
Input Power Voltage 24 VDC nominal
Connector CAT‑5e RJ‑45 to Management Card
Wiring Terminals Screw-block, 16–28 AWG
Switching Ratings 1 A @ 30 VDC (up to 2 A carry)
Dimensions (H×W×D) 22 × 45.2 × 44.6 mm (0.87 × 1.78 × 1.76 in)
Weight 51 g (1.8 oz); shipping ~0.14 kg (0.31 lb)
Operating Temp/Humidity 0–40 °C; 0–95% RH non‑condensing
Storage Temp/Humidity –15–65 °C; 0–95% RH
Certifications EN 61000‑4‑2/3/4/6
Warranty 2-Year Repair or Replace
