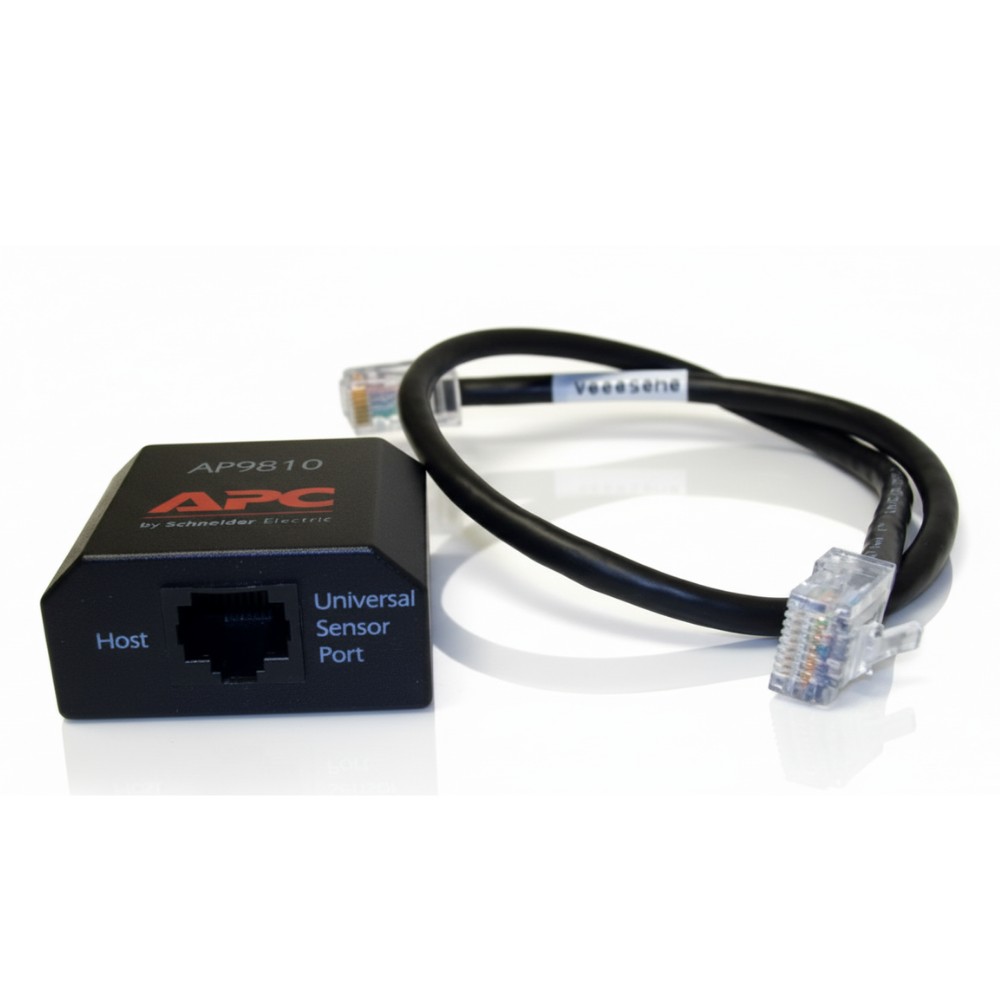

APC AP9810 Dry Contact I/O Accessory Network Adapter Kit Black View larger

APC AP9810 Dry Contact I/O Accessory Network Adapter Kit Black

New

In Stock

Dry-contact I/O add-on for UPS management
×




$143.00

  • New

Detailed Specifications

APC AP9810 – Dry Contact I/O Accessory

Overview :

The APC AP9810 is an accessory module for UPS systems, used by engineers to add external alarm/control interface via dry contacts. It provides two isolated input contacts and one relay output to integrate external sensors or signals with UPS management systems. It connects to the Universal I/O port of APC Network Management Cards or Dry Contact I/O Cards. It is typically deployed in data centers, wiring closets, or UPS cabinets. Device behavior and mapping are configured through the UPS management card interface.

Key Features

  • Two isolated dry contact inputs

  • Single Form C relay output

  • 12 V, 25 mA auxiliary output

  • Small footprint, DIN-mountable module

Specifications

SpecificationValue
Brand APC by Schneider Electric
Part Number AP9810
Product Type Dry Contact I/O Accessory
Input Voltage 24 V DC
Current Draw 40 mA DC
Output (Aux) 12 V DC, 25 mA
Relay Type Form C (SPDT) relay
Relay Switching Capacity 1 A @ 30 V DC
Max Relay Voltage 60 V DC
Max Relay Current 2 A DC
Surge Rating 2 kV (Bellcore), 1.5 kV (FCC Part 68)
Dimension (H × W × D) 22.0 × 45.2 × 44.6 mm
Weight 51 g
Operating Temperature 0 to 40 °C
Storage Temperature –15 to 65 °C
Relative Humidity (Op/Stor) 0–95 %
Elevation (Operating) up to 3 000 m
Elevation (Storage) up to 15 000 m
