Detailed Specifications

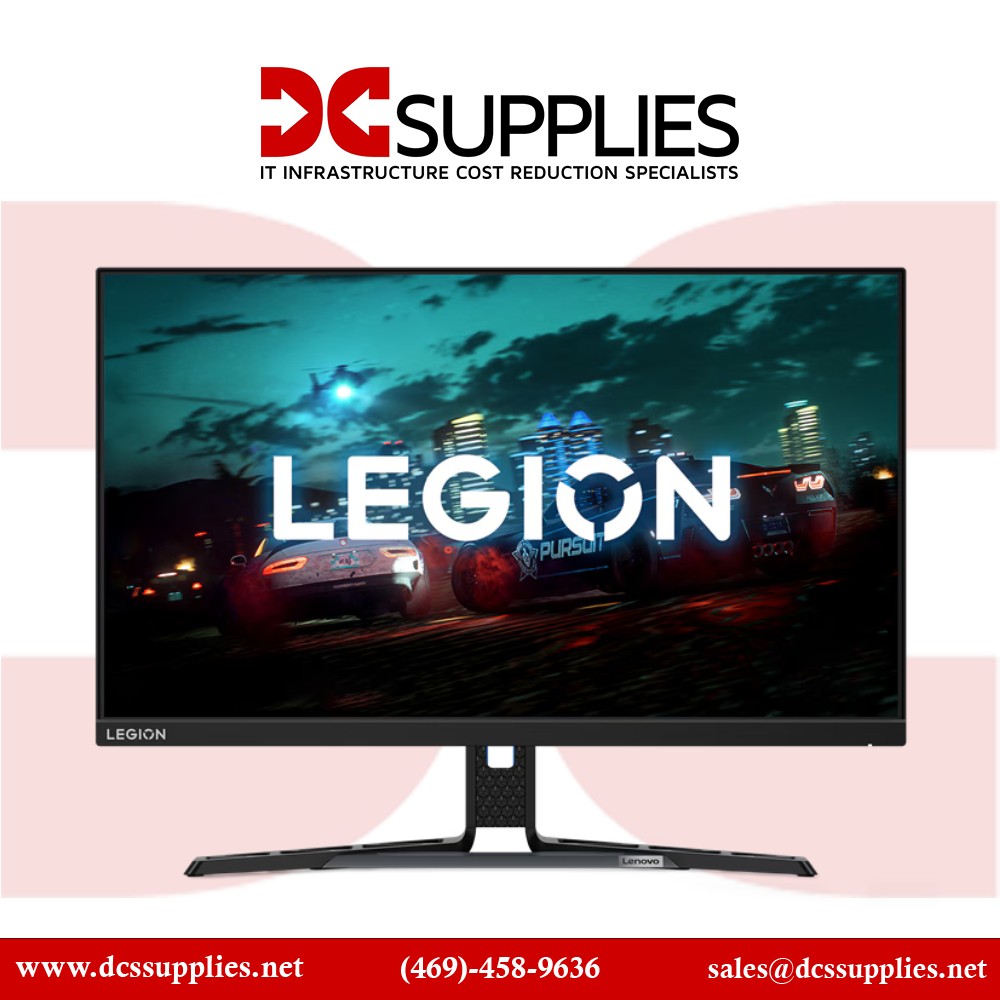

Lenovo 66F7GAC3US LEGION Y27Q-30 - LCD MONITOR - FLAT - 2560 X 1440 - 27INCH - 4MS - 165 HZ
Overview:
The Legion Y27q-30 27" 1440p 180 Hz HDR Monitor from Lenovo games hard and works hard. It features a 165 Hz refresh rate to reduce image blur, tearing, and ghosting, which can be overclocked to 180 Hz. AMD FreeSync Premium and Adaptive-Sync further help to smooth visuals by syncing the monitor's refresh rate with that of your graphics card, while a response time that can be set between 0.5 (MPRT) and 5 ms (off), depending on your needs, help ensure smooth transitions between colors.
The Legion Y27q-30 also features an IPS panel with a QHD resolution of 2560 x 1440, 10-bit (8-bit + FRC) support for 1.07 billion colors and DisplayHDR 400, a 16:9 aspect ratio, an anti-glare coating, a static contrast ratio of 1000:1, a brightness of 400 nits, and coverage for 99% of the sRGB and 90% of the DCI-P3 color gamuts. Using the 178° horizontal and vertical viewing angles, it is possible to watch content from virtually any position. This display has two HDMI 2.0 ports, one DisplayPort 1.4 port, one 5 Gb/s USB-B 3.2 Gen 1 port, and four 5 Gb/s USB-A 3.2 Gen 1 ports. Audio may be output using either the dual integrated 3W speakers or the 3.5mm audio jack.
Specifications:
| Display Size |
27"
|
| Panel Type |
IPS-Type LCD
|
| Resolution |
2560 x 1440
|
| Maximum Brightness |
400 nits / cd/m2
|
| Bit Depth / Color Support |
8-Bit+FRC (1.07 Billion Colors)
|
| Color Gamut |
99% sRGB
95% DCI-P3
|
| Finish |
Anti-Glare / Matte
|
| Inputs |
1 x DisplayPort (1.4)
2 x HDMI (2.0)
|
| Outputs |
1 x 1/8" / 3.5 mm
|
| USB I/O |
1 x USB-B 3.0 / 3.1/3.2 Gen 1
4 x USB-A 3.0 / 3.1/3.2 Gen 1
|
| Built-In Speakers |
Yes, 2 x 3 W
|
Display
| Display Size |
27"
|
| Panel Type |
IPS-Type LCD
|
| Aspect Ratio |
16:9
|
| Resolution |
2560 x 1440
|
| Maximum Brightness |
400 nits / cd/m2
|
| HDR Compatibility |
No
|
| Contrast Ratio |
1000:1
|
| Dynamic Contrast Ratio |
3,000,000:1
|
| Response Time |
0.5 ms (MPRT)
1 ms
|
| Refresh Rate |
180 Hz
|
| Variable Refresh Technology |
Adaptive-Sync, FreeSync Premium
|
| Bit Depth / Color Support |
8-Bit+FRC (1.07 Billion Colors)
|
| Color Gamut |
99% sRGB
95% DCI-P3
|
| Viewing Angle (H x V) |
178 x 178°
|
| Screen Area |
23.5 x 13.2" / 596.7 x 335.7 mm
|
| Dot Pitch |
0.233 x 0.233 mm
|
| Pixels Per Inch (ppi) |
109 ppi
|
| Finish |
Anti-Glare / Matte
|
| Touchscreen Technology |
No
|
Connectivity
| Inputs |
1 x DisplayPort (1.4)
2 x HDMI (2.0)
|
| Outputs |
1 x 1/8" / 3.5 mm
|
| HDCP Support |
No
|
| USB I/O |
1 x USB-B 3.0 / 3.1/3.2 Gen 1
4 x USB-A 3.0 / 3.1/3.2 Gen 1
|
| Multi-Input Support (PIP/PBP) |
No
|
Speaker
| Built-In Speakers |
Yes, 2 x 3 W
|
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Operating Humidity |
8 to 80% (Non-Condensing)
|
| Storage Humidity |
5 to 95% (Non-Condensing)
|
| Power Consumption |
Standby: 0.5 W
Typical: 54.0 W
Maximum: 85.0 W
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz at 1.5 A
|
| Power Adapter Type |
Internal
|
General
| Certifications |
CCC, RoHS, TUV Rheinland Eye Comfort Certification, TUV Rheinland Low Blue Light (Hardware Solution)
*as per Manufacturer
|
| Height Adjustment |
5.3" / 135 mm
|
| Rotation Adjustment |
180° (-90 to 90°)
|
| Swivel Adjustment |
60° (-30 to 30°)
|
| Tilt Adjustment |
30° (-5 to 25°)
|
| Mounting-Hole Pattern |
100 x 100 mm
|
| Lock Slot |
Yes, Kensington
|
| Dimensions |
24.2 x 21.1 x 10.2" / 613.7 x 536.5 x 258.8 mm (with Stand)
24.2 x 14.4 x 2.4" / 613.7 x 365.9 x 61 mm (without Stand)
|
| Weight |
14.6 lb / 6.6 kg (with Stand)
10.1 lb / 4.6 kg (without Stand)
|
Packaging Info
| Package Weight |
21.85 lb
|
| Box Dimensions (LxWxH) |
28 x 20 x 6.5"
|
