Detailed Specifications

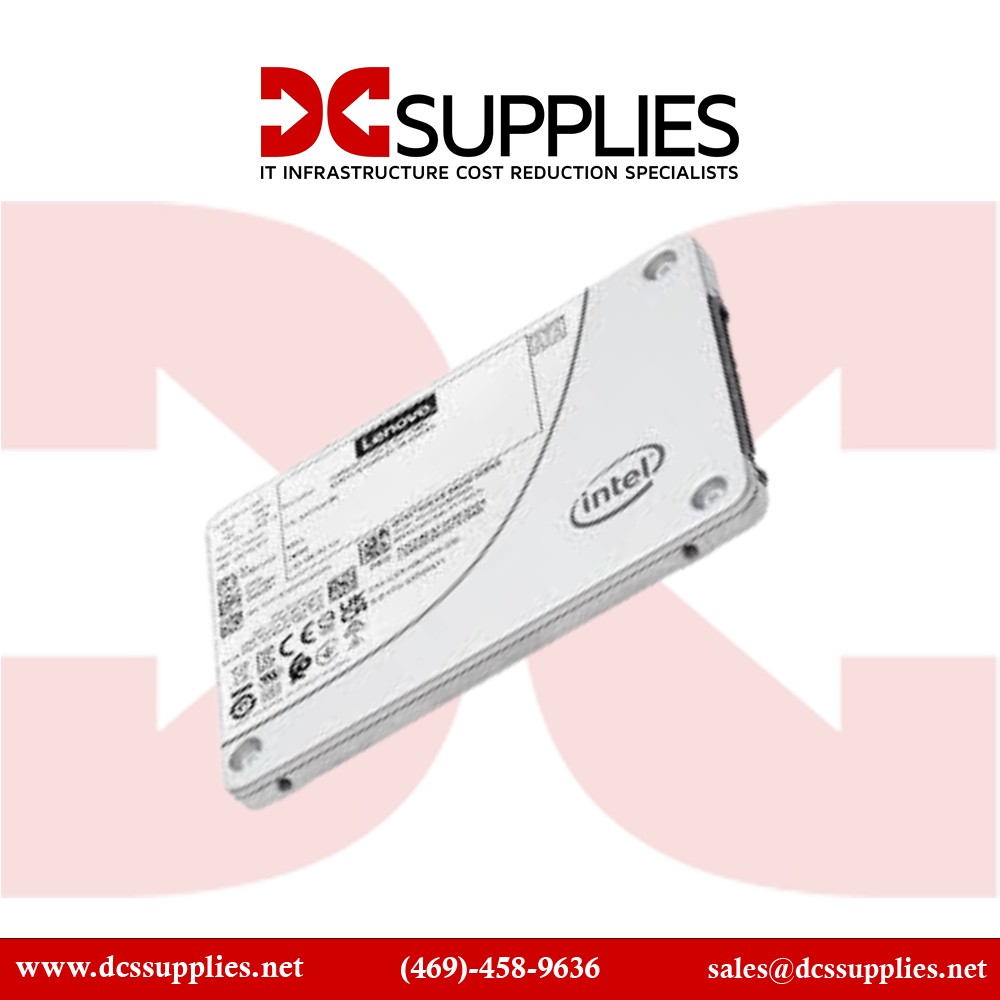

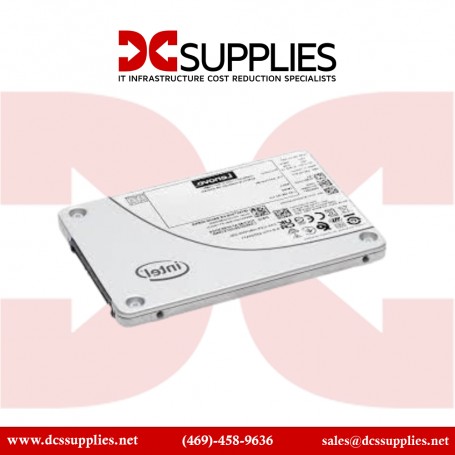

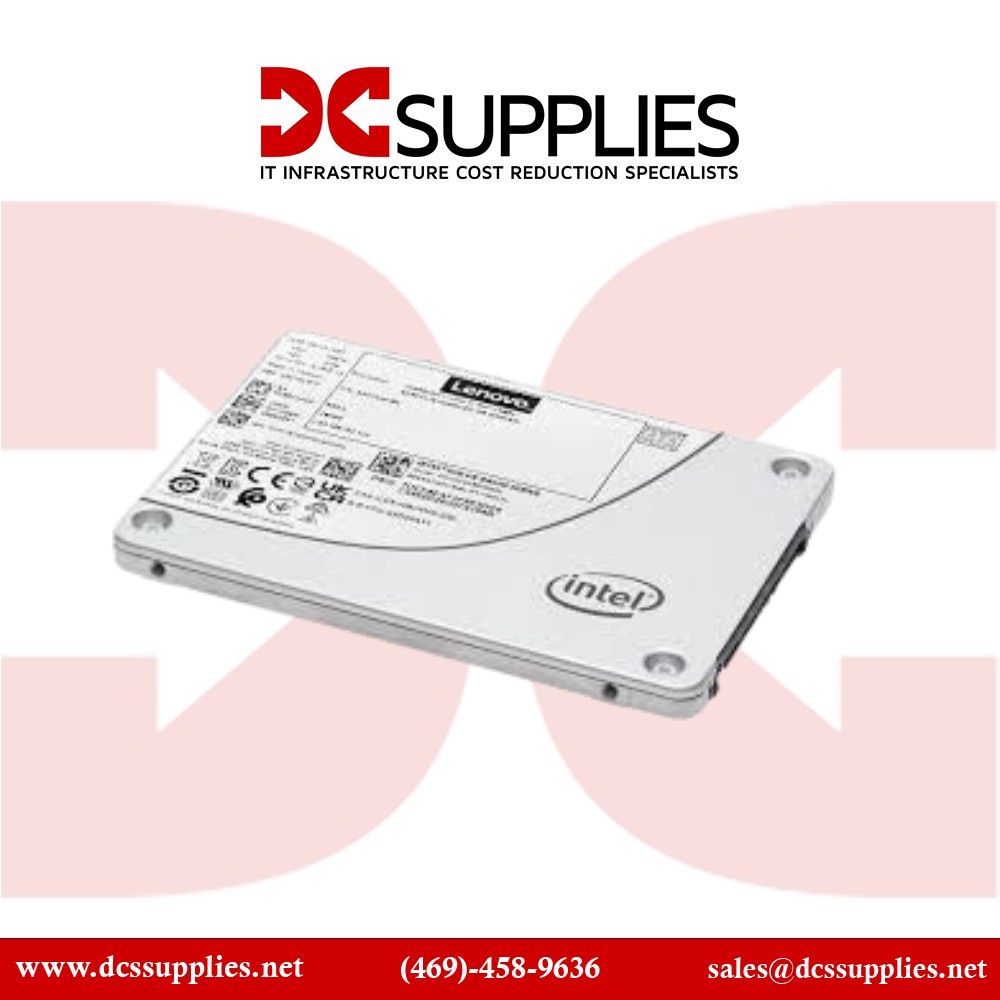

Lenovo 4XB7A17102 internal solid state drive 2.5" 960 GB Serial ATA III 3D TLC NAND
Overview :
The ThinkSystem S4520 Read Intensive SATA SSDs use 144-layer Intel 3D NAND TLC Flash Memory technology with a 6Gbps SATA interface to provide an affordable solution with industry-leading performance. Compared with the S4510 series, these new Read Intensive (Entry) drives offer improved endurance. The S4520 SSDs are optimized for read-intensive applications such as boot, web servers, lower data rate operational databases, and analytics.
Specifications :
| Hard drive |
|---|
| SSD capacity |
960 GB |
| Memory type |
3D TLC NAND |
| Data transmission |
|---|
| Random write (4KB) |
44000 IOPS |
| Random read (4KB) |
85000 IOPS |
| Write latency |
36 µs |
| Read latency |
36 µs |
| Data transfer rate |
6 Gbit/s |
| Security |
|---|
| Security algorithms |
256-bit AES |
| Endurance |
|---|
| Mean time between failures (MTBF) |
2000000 h |
| Certificates |
|---|
| Performance |
|---|
| Interface |
Serial ATA III |
| Component for |
Server/workstation |
| Hot-swap |
Yes |
| SSD capacity |
960 GB |
| Security algorithms |
256-bit AES |
| S.M.A.R.T. support |
Yes |
| Memory type |
3D TLC NAND |
| Random write (4KB) |
44000 IOPS |
| Random read (4KB) |
85000 IOPS |
| Mean time between failures (MTBF) |
2000000 h |
| Write latency |
36 µs |
| Read latency |
36 µs |
| Hardware encryption |
Yes |
| Data transfer rate |
6 Gbit/s |
| Design |
|---|
| Component for |
Server/workstation |
| SSD form factor |
2.5" |
| Features |
|---|
| Interface |
Serial ATA III |
| Component for |
Server/workstation |
| Hot-swap |
Yes |
| SSD capacity |
960 GB |
| Security algorithms |
256-bit AES |
| S.M.A.R.T. support |
Yes |
| Memory type |
3D TLC NAND |
| Random write (4KB) |
44000 IOPS |
| Random read (4KB) |
85000 IOPS |
| Mean time between failures (MTBF) |
2000000 h |
| Write latency |
36 µs |
| Read latency |
36 µs |
| Hardware encryption |
Yes |
| Data transfer rate |
6 Gbit/s |
| SSD form factor |
2.5" |
| Harmonized System (HS) code |
84717070 |
| Power |
|---|
| Power consumption (write) |
3 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating shock |
1000 G |
| Non-operating shock |
1000 G |
| Operating vibration |
2.17 G |
| Maximum operating altitude |
120078.7" (3050 m) |
| Technical details |
|---|
| Interface |
Serial ATA III |
| Hot-swap |
Yes |
| S.M.A.R.T. support |
Yes |
| Operating temperature (T-T) |
0 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating shock |
1000 G |
| Non-operating shock |
1000 G |
| Operating vibration |
2.17 G |
| Maximum operating altitude |
120078.7" (3050 m) |
| Hardware encryption |
Yes |
| SSD form factor |
2.5" |
| Weight & dimensions |
|---|
| Package width |
6.85" (174 mm) |
| Package depth |
5.24" (133 mm) |
| Package height |
2.48" (63 mm) |
| Package weight |
15.3 oz (434 g) |
| Width |
2.76" (70 mm) |
| Weight |
2.47 oz (70 g) |
| Height |
0.276" (7 mm) |
| Depth |
3.94" (100 mm) |
| Packaging data |
|---|
| Package width |
6.85" (174 mm) |
| Package depth |
5.24" (133 mm) |
| Package height |
2.48" (63 mm) |
| Package weight |
15.3 oz (434 g) |
