Detailed Specifications

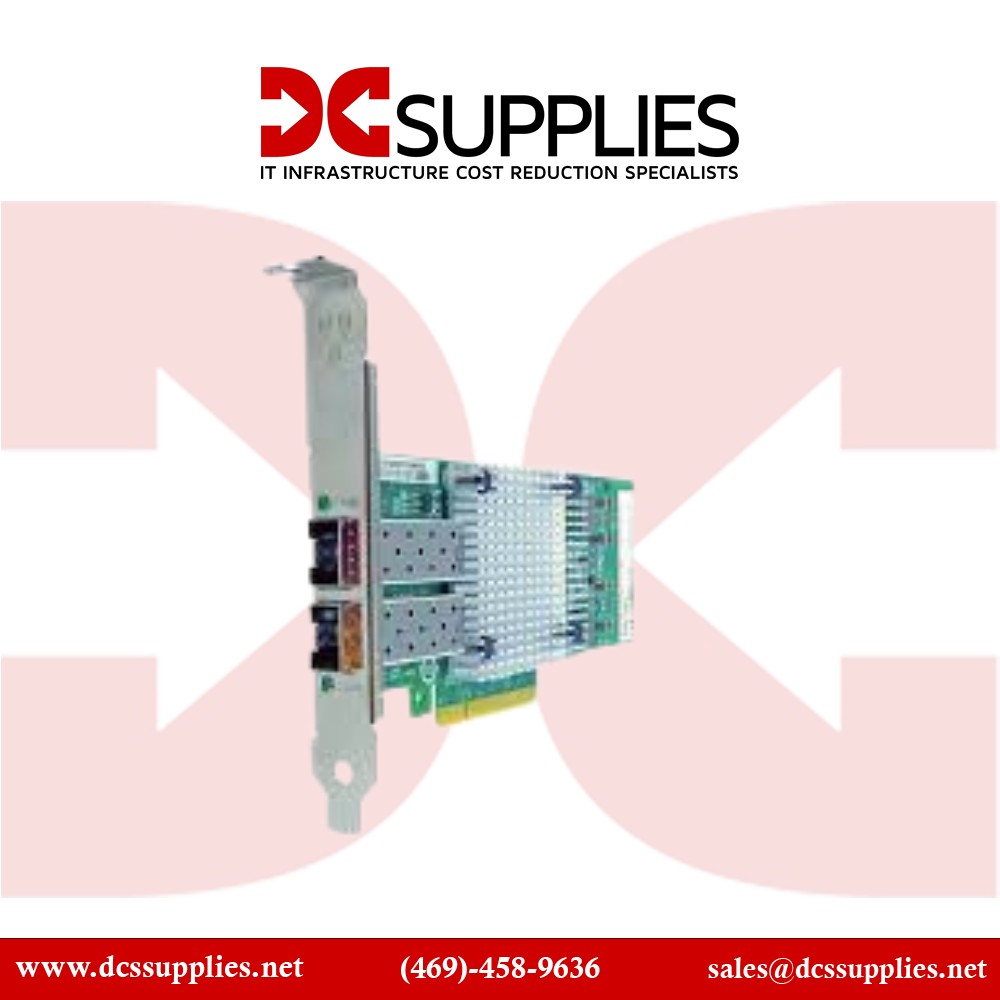

Axiom 7ZT7A00537-AX network card Internal Fiber 10000 Mbit/s
Overview :
The Axiom PCIe 3.0 x8 10Gbs Fiber Network Adapter is a new generation of high-performance server adapter. Based on the Intel X710-BM2 controller, our server adapters address the demanding needs of the next-generation agile data center by providing unmatched features for both server and network virtualization, flexibility for LAN and SAN networks and proven, reliable performance. The PCIe 3.0 x8 10Gbs Fiber Network Adapter delivers superior performance in a PCI Express v3.0 x8 slot.
Specifications
| Ports & interfaces |
|---|
| Internal |
Yes |
| PCI version |
3.0 |
| Fiber ports quantity |
2 |
| Fiber optic connector |
SFP+ |
| Interface |
Fiber |
| Host interface |
PCI Express |
| Connectivity technology |
Wired |
| Bandwidth |
|---|
| Maximum data transfer rate |
10000 Mbit/s |
| Network |
|---|
| Chipset |
Intel® X710-BM2 |
| Data link protocols |
Ethernet |
| Maximum data transfer rate |
10000 Mbit/s |
| Technical details |
|---|
| Compatible products |
Lenovo 7ZT7A00537 |
| Design |
|---|
| Compatible products |
Lenovo 7ZT7A00537 |
| Chipset |
Intel® X710-BM2 |
| Internal |
Yes |
| LED indicators |
Activity, Link, Speed |
| Component for |
PC |
| Software |
|---|
| Linux operating systems supported |
Yes |
| Other operating systems supported |
FreeBSD, VMware ESX/ESXi 5.1 |
| Indication |
|---|
| LED indicators |
Activity, Link, Speed |
| System requirements |
|---|
| Server operating systems supported |
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 |
| Linux operating systems supported |
Yes |
| Other operating systems supported |
FreeBSD, VMware ESX/ESXi 5.1 |
| Weight & dimensions |
|---|
| Width |
0.512" (13 mm) |
| Depth |
2.68" (68 mm) |
| Height |
6.5" (165 mm) |
| Weight |
4.96 oz (140.6 g) |
| Protocols |
|---|
| Data link protocols |
Ethernet |
| Packaging content |
|---|
| Mounting brackets included |
No |
| Performance |
|---|
| Server operating systems supported |
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 |
| Compatible products |
Lenovo 7ZT7A00537 |
| Linux operating systems supported |
Yes |
| Other operating systems supported |
FreeBSD, VMware ESX/ESXi 5.1 |
| Packaging data |
|---|
| Mounting brackets included |
No |
| Other features |
|---|
| Chipset |
Intel® X710-BM2 |
