Overview

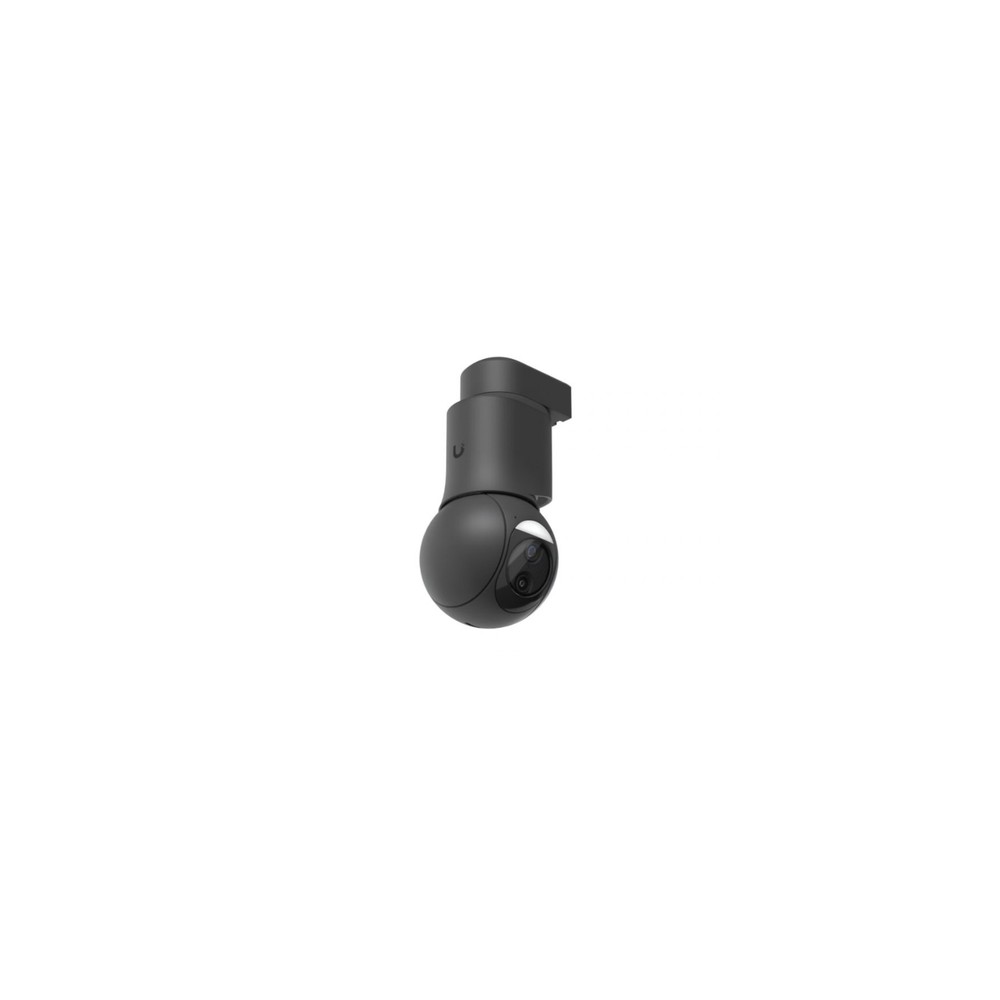

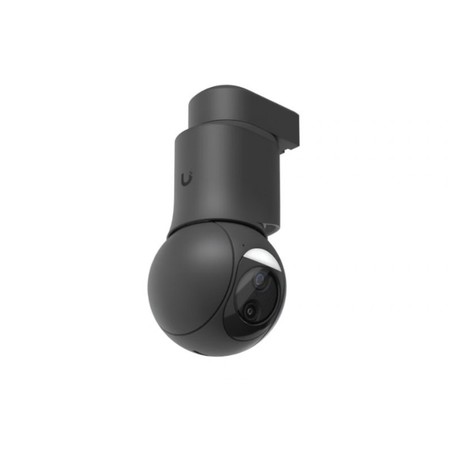

The Ubiquiti UVC-G6-PTZ-B G6 PTZ is an all-weather 4K dual-lens network camera designed for pan-tilt-zoom surveillance and motion tracking. It combines two 1/1.8-inch 8MP image sensors with 10x hybrid zoom, integrated AI processing, and ultra-low-latency PTZ control.
Imaging and Zoom
The camera provides 8MP 3840 x 2160 video at up to 30 FPS. Its wide lens uses a 4.46 mm focal length with an f/1.65 aperture, while the tele lens uses a 16.3 mm focal length with an f/2.4 aperture. The 10x hybrid zoom combines the two optical perspectives for detailed monitoring across different viewing distances.
PTZ and Field of View
The G6 PTZ supports 350° of pan movement and 100° of tilt movement. The wide view provides 109.9° horizontal, 56.7° vertical, and 134.1° diagonal coverage, while the tele view provides 26.6° horizontal, 15.1° vertical, and 30.4° diagonal coverage.
AI and Night Vision
Ubiquiti specifies smart detections for people, vehicles, and animals, along with face recognition and license plate recognition. Built-in IR LED illumination provides night vision up to 30 m (98 ft), with an integrated IR cut filter for day/night operation.
Networking and Power
The UVC-G6-PTZ-B uses a 10/100 MbE RJ45 network interface and is powered by PoE+. It supports 42.5–57V DC and has a maximum power consumption of 24.5W. A MicroSD card slot is provided for local storage.
Construction and Installation
The camera is rated IP66 for weather resistance and IK04 for tamper resistance. The enclosure combines aluminum alloy and polycarbonate. Wall, surface, ceiling, and pole mounting are supported with the included mounting system, while corner, in-ceiling, pendant, and conduit-adapter options are available separately.
Key Features
- 4K 8MP dual-lens imaging at up to 30 FPS
- 10x hybrid zoom with wide and tele lenses
- 350° pan and 100° tilt range
- 30 m IR night vision with people, vehicle, and animal detections
- IP66 weather resistance and PoE+ connectivity
Applications
The G6 PTZ is suited to security deployments requiring remotely controlled viewing across a broad area. Its PTZ movement, dual-lens design, hybrid zoom, AI detections, and long-range IR illumination make it suitable for monitoring outdoor and indoor environments where active camera positioning is required.
DC Supplies Product Note
The UVC-G6-PTZ-B uses PoE+ rather than standard PoE and can draw up to 24.5W. When planning the network, the PoE infrastructure should therefore provide sufficient power for the camera's maximum consumption.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UVC-G6-PTZ-B |
| Product Type | PTZ Network Camera |
| Product Family | G6 PTZ |
| Color | Black |
| Resolution | 8MP, 3840 x 2160 |
| Maximum Frame Rate | 30 FPS |
| Image Sensors | Wide: 1/1.8-inch 8MP; Tele: 1/1.8-inch 8MP |
| Zoom | 10x Hybrid |
| Wide Lens | 4.46 mm, ƒ/1.65 |
| Tele Lens | 16.3 mm, ƒ/2.4 |
| Pan Range | 350° |
| Tilt Range | 100° |
| IR Night Vision | 30 m (98 ft) |
| Smart Detections | People, Vehicles, Animals |
| Face Recognition | Yes |
| License Plate Recognition | Yes |
| Audio | Two-way audio |
| Networking Interface | 10/100 MbE RJ45 |
| Power Method | PoE+ |
| Supported Voltage Range | 42.5–57V DC |
| Maximum Power Consumption | 24.5W |
| Weather Resistance | IP66 |
| Tamper Resistance | IK04 |
| Local Storage | MicroSD card slot |
| Dimensions Without Mount | Ø107.2 x 104.5 x 203.2 mm |
| Dimensions With Mount | Ø107.2 x 111 x 230.2 mm |
| Weight Without Arm Mount | 1 kg (2.2 lb) |
| Operating Temperature | -30 to 50°C (-22 to 122°F) |
FAQs
What is the Ubiquiti UVC-G6-PTZ-B?
It is a G6 PTZ 4K dual-lens network camera with 10x hybrid zoom, motorized pan and tilt, AI detections, and IR night vision.
What resolution does the G6 PTZ support?
The camera supports 8MP 3840 x 2160 4K video at up to 30 FPS.
How much does the camera pan and tilt?
The G6 PTZ provides a 350° pan range and a 100° tilt range.
Does the UVC-G6-PTZ-B support night vision?
Yes. Built-in IR illumination provides night vision up to 30 m (98 ft).
What power method does the G6 PTZ use?
The camera uses PoE+ and supports an input voltage range of 42.5–57V DC, with maximum power consumption of 24.5W.
