Detailed Specifications

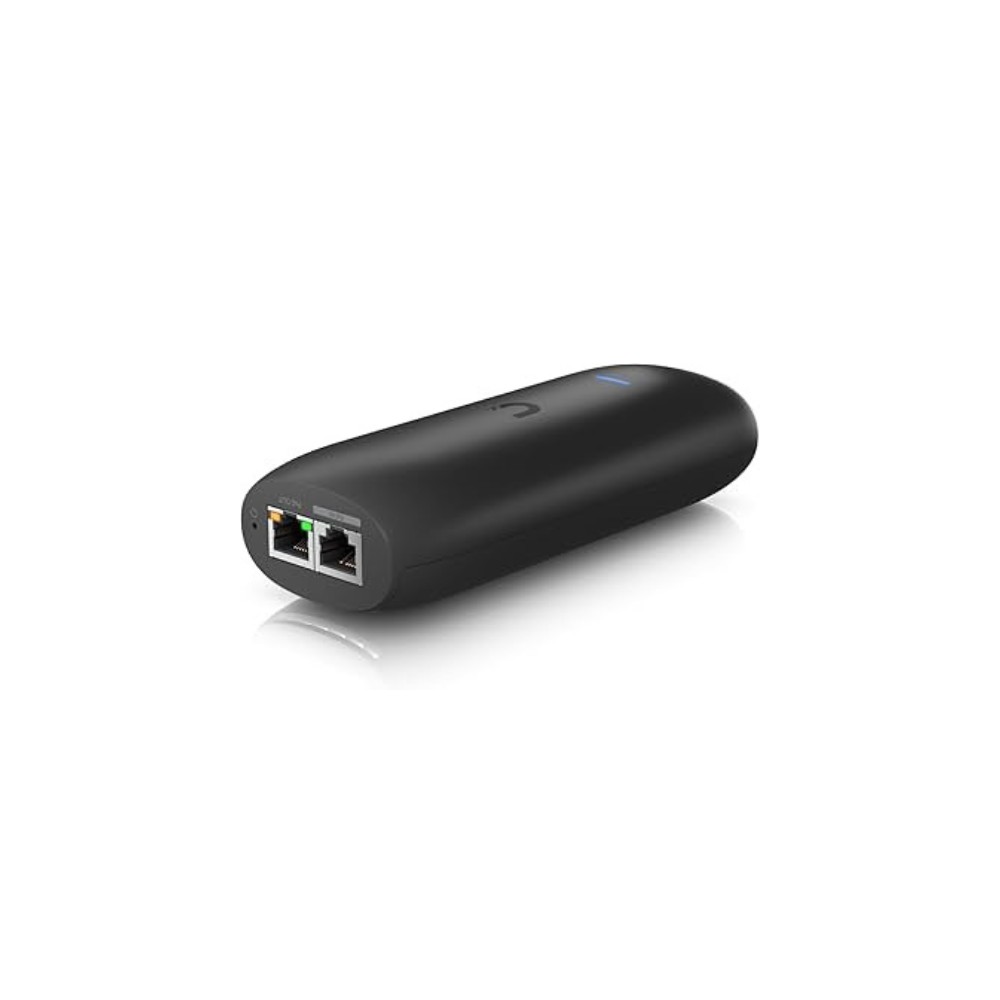

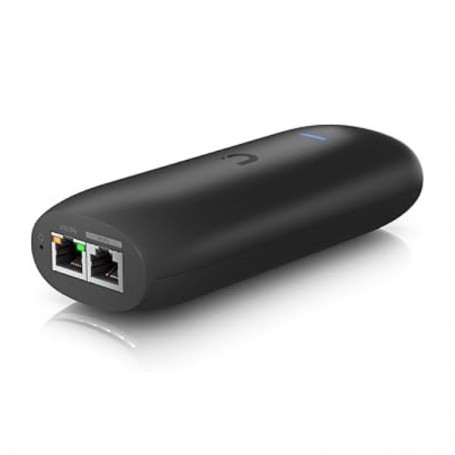

Ubiquiti UP-AI-PORT UniFi AI Detection Appliance
Overview
The Ubiquiti UP-AI-PORT is a compact AI appliance that adds advanced analytics to UniFi Protect cameras and compatible ONVIF IP cameras, enabling detection, classification, and recognition features such as motion, people, vehicles, faces, and license plates. It connects with your surveillance network over Gigabit Ethernet and is powered via PoE, with pass-through support for PoE output to cameras. The unit is pole- or wall-mountable, making it suitable for perimeter surveillance, parking areas, and enterprise security deployments where enhanced AI capabilities are required without replacing existing cameras. Management and event configuration are done through the UniFi Protect application.
Key Features
• Adds AI analytics to cameras
• PoE input with PoE pass-through
• GbE network interface
• Pole or wall mountable
Technical Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number | UP-AI-PORT |
| Product Type | UniFi AI Detection Appliance |
| Network Interface | (1) 10/100/1000 RJ45 |
| Power Method | PoE++ or PoE+ input |
| PoE Output | PoE+ pass-through (up to 25.5 W with 802.3bt, 12.95 W with 802.3at) |
| AI Features | Detection, classification, recognition |
| Max Camera Resolution | 3840 × 2160 px |
| Mounting | Wall or pole (>45 mm diameter) |
| Operating Temp | −20 °C to 40 °C |
| Operating Humidity | 20 % to 90 % non-condensing |
| Certifications | FCC, IC, CE, NDAA compliant |
| Enclosure Material | Polycarbonate |
| Dimensions (Without Mount) | 150 × 64 × 38.4 mm |
| Weight (Without Mount) | 258 g |
