Ubiquiti UAG3PROB UniFi Access G3 Pro Reader View larger

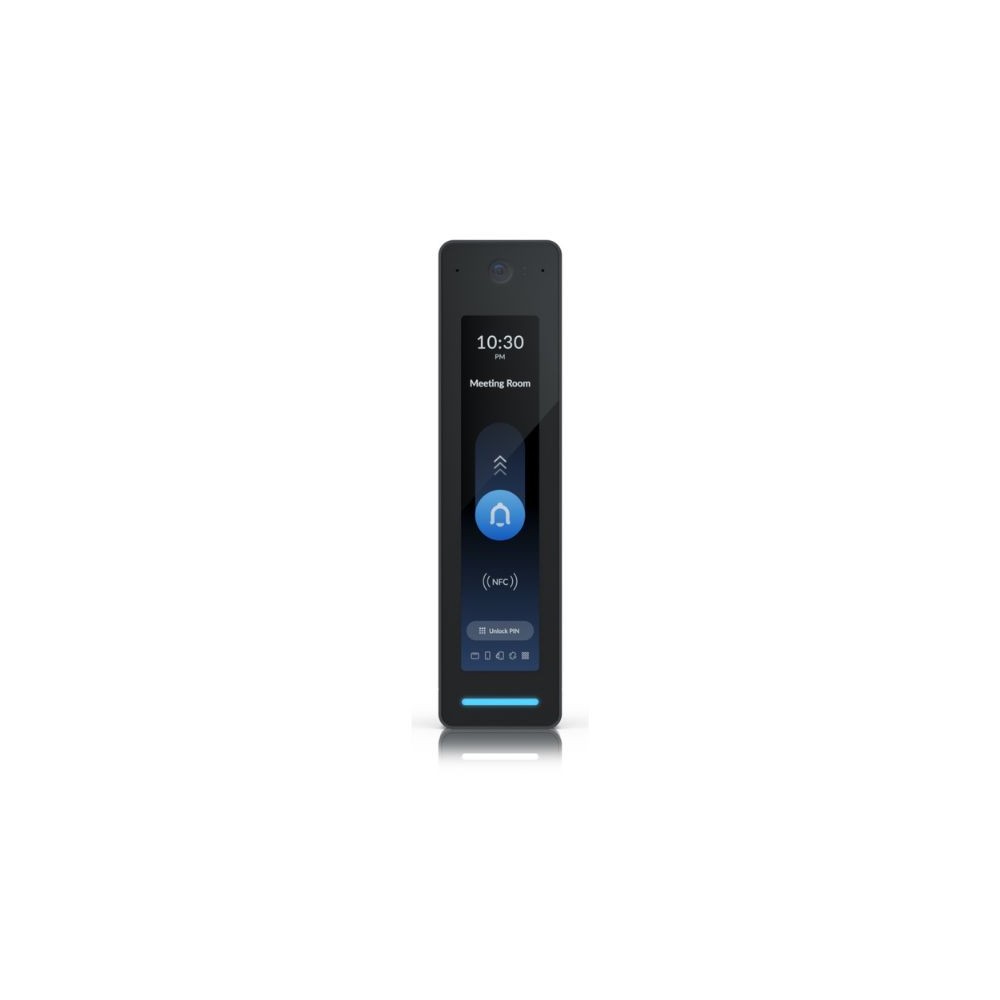

Ubiquiti UA-G3-PRO-B UniFi Access G3 Pro Reader

UA-G3-PRO-B

New

Ubiquiti NFC/Bluetooth Access Reader
×




Detailed Specifications

Ubiquiti UA‑G3‑PRO‑B UniFi Access G3 Pro Reader

Overview

The Ubiquiti UA‑G3‑PRO‑B is an advanced wall‑mount access reader for UniFi Access systems, designed to authenticate users via NFC credentials and Bluetooth Low Energy. It provides secure entry control with PoE power and integrates with UniFi Access hubs for centralized policy, logging, and user management. The device is built for commercial and enterprise entry points requiring hardened access control and flexible credential options. It mounts on standard electrical boxes and features RGB status indicators to communicate reader state.

Key Features

• PoE powered NFC/Bluetooth reader
• Supports NFC (13.56 MHz) credentials
• Bluetooth Low Energy for mobile credentials
• Wall‑mount with RGB status ring

Technical Specifications

SpecificationDetails
Brand Ubiquiti
Part Number UA‑G3‑PRO‑B
Product Type UniFi Access Reader
Power Method PoE (802.3af), 48 V DC
Max Power Consumption 6 W
Network Interface (1) 10/100 Mb/s RJ45
Credential Support NFC (13.56 MHz), BLE
Reader LEDs RGB status ring
Mount Type Wall mount
Mount Standard 86 mm electrical box
Weather Rating IP55
Operating Temp −30 °C to 50 °C
Operating Humidity 5 % to 90 % non‑condensing
Dimensions 120 × 65 × 25 mm
Weight 120 g
