Overview

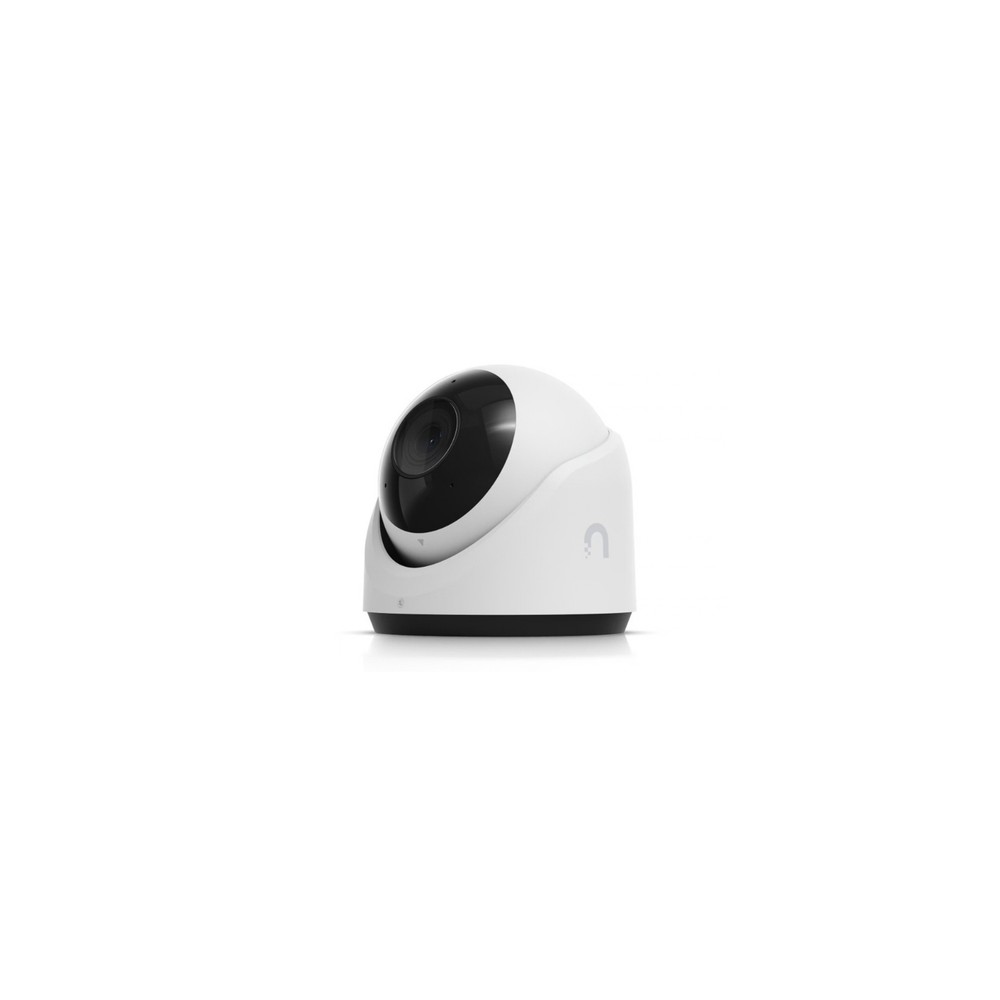

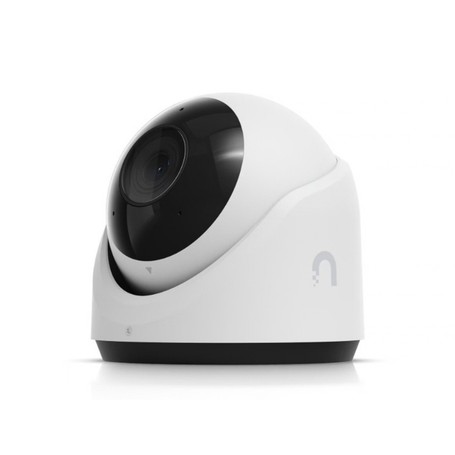

The Ubiquiti UVC-G6-Turret-W is a white UniFi G6 Turret security camera with 4K resolution, an 8MP 1/1.8-inch image sensor, integrated infrared illumination, and AI-powered detection capabilities. It is designed for indoor and outdoor surveillance and uses Power over Ethernet for network connectivity and power.
The camera features a three-axis manual adjustment mechanism for flexible positioning during installation. Its all-weather construction is rated IP66, while IK04 tamper resistance provides additional protection against physical impact.
Imaging and Night Vision
The camera uses a 1/1.8-inch 8MP sensor and produces 3864 x 2160 video at up to 30 frames per second. Its fixed focal-length lens provides a horizontal field of view of 109.9 degrees, a vertical field of view of 56.7 degrees, and a diagonal field of view of 134.1 degrees.
Built-in IR LED illumination and an IR cut filter provide night-mode operation with infrared night vision coverage of up to 30 m (98 ft).
AI Detection and Recognition
The G6 Turret incorporates a Multi-TOPS AI Engine and supports smart detection of people, vehicles, and animals. Ubiquiti also specifies face recognition and license plate recognition capabilities for this camera.
Networking and Power
The camera provides a 10/100 Mbps Ethernet interface through an RJ45 port and uses PoE for power. The supported voltage range is 37–57V DC, with maximum power consumption specified at 12.5W.
Installation and Physical Design
The UVC-G6-Turret-W supports ceiling and wall mounting, with the standard mount included. Optional mounting accessories are available for other installation configurations, including arm, pendant, and junction-box applications.
The camera measures 100 mm in diameter and 95 mm in height and weighs 550 g. Its enclosure combines aluminum alloy and polycarbonate.
Key Features
- 4K video using a 1/1.8-inch 8MP image sensor
- 30 m (98 ft) integrated IR night vision
- Multi-TOPS AI Engine with people, vehicle, and animal detection
- Face recognition and license plate recognition support
- IP66 weatherproofing and IK04 tamper resistance
Applications
The UVC-G6-Turret-W is designed for UniFi video surveillance deployments requiring 4K coverage in indoor or outdoor environments. Its wide field of view and infrared illumination can be used for monitoring entrances, exterior areas, corridors, commercial premises, and other locations where PoE network connectivity is available.
DC Supplies Product Note
The camera requires a compatible PoE power source and operates within a 37–57V DC supported voltage range, with maximum power consumption of 12.5W. When planning an installation, confirm that the selected PoE network switch or injector provides the required power and that the mounting configuration matches the intended installation surface.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UVC-G6-Turret-W |
| Product Type | 4K PoE Turret Security Camera |
| Model | G6 Turret |
| Color | White |
| Image Sensor | 1/1.8-inch 8MP |
| Resolution | 8MP, 3864 x 2160 |
| Video Resolution Class | 4K |
| Maximum Frame Rate | 30 FPS |
| Lens | Fixed focal length |
| Horizontal Field of View | 109.9° |
| Vertical Field of View | 56.7° |
| Diagonal Field of View | 134.1° |
| IR Night Vision Range | 30 m (98 ft) |
| Audio | Microphone |
| Smart Detections | People, vehicles, animals |
| Face Recognition | Supported |
| License Plate Recognition | Supported |
| Networking Interface | 10/100 Mbps RJ45 |
| Power Method | PoE |
| Supported Voltage Range | 37–57V DC |
| Maximum Power Consumption | 12.5W |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |
| Mounting | Ceiling, wall; arm, pendant and junction box options available |
| Dimensions | 100 x 95 mm (3.9 x 3.7 in) |
| Weight | 550 g (1.2 lb) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Operating Temperature | -30°C to 50°C (-22°F to 122°F) |
| Operating Humidity | 0% to 90% non-condensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
FAQs
What resolution does the UVC-G6-Turret-W support?
The camera provides 8MP video at 3864 x 2160 resolution with a maximum frame rate of 30 FPS.
How far does the infrared night vision reach?
Ubiquiti specifies an IR night vision range of up to 30 m (98 ft).
Does the camera support AI detection?
Yes. The camera includes a Multi-TOPS AI Engine and supports smart detection of people, vehicles, and animals, as well as face recognition and license plate recognition.
How is the camera powered?
The UVC-G6-Turret-W uses PoE and supports a 37–57V DC voltage range. Maximum power consumption is 12.5W.
Can the camera be installed outdoors?
Yes. The camera has an IP66 weatherproof rating and an operating temperature range of -30°C to 50°C. It also has IK04 tamper resistance.
What mounting options are supported?
Ceiling and wall mounting are supported with the included standard mount. Ubiquiti also lists arm, pendant, and junction-box mounting options as optional configurations.
