Overview

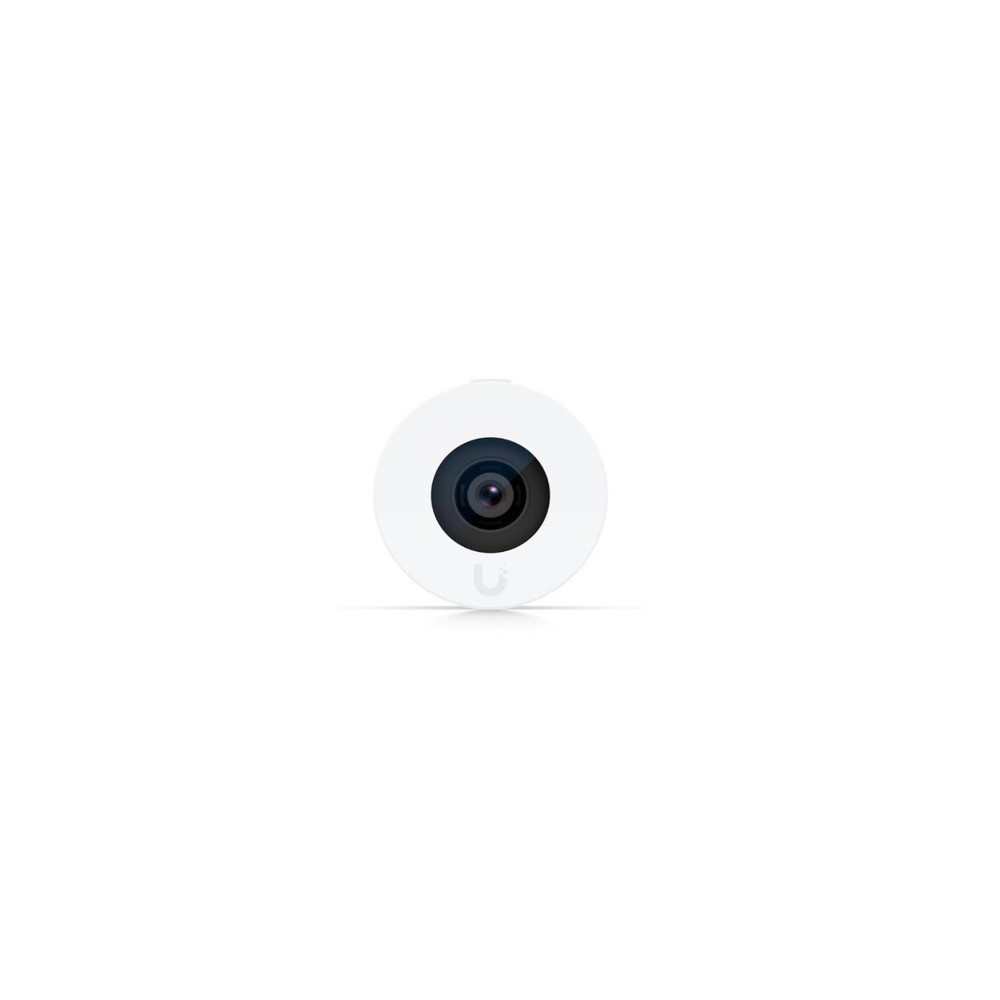

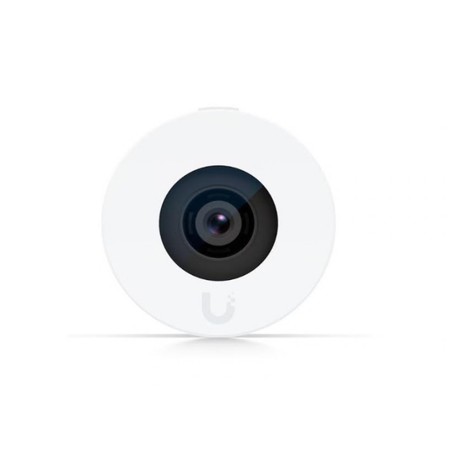

The Ubiquiti UVC-AI-THETA-LENS-LD is the AI Theta Long-Distance Lens, a compact fixed-focal-length camera lens designed to connect to an AI Theta Hub. It provides 4K 8MP imaging with a narrower 36.2° horizontal field of view than the standard AI Theta Lens, making it suited to applications where greater detail is required across a more focused viewing area.
The lens supports up to 24 FPS at 3264 × 2448 resolution and is designed for indoor use. A standard flush mount is included for flat ceiling or wall installation, while the optional AI Theta Angle Mount provides an alternative angled installation configuration.
Imaging and Optics
The UVC-AI-THETA-LENS-LD uses an 8MP CMOS sensor and fixed focal-length optics. Its field of view is 36.2° horizontally, 27.7° vertically, and 44.4° diagonally. Supported image controls include color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, noise reduction by motion, masking, and text overlay.
Compatibility and Mounting
The lens connects to an AI Theta Hub using the proprietary Theta connection. It is intended for indoor deployment and supports wall or ceiling mounting. The standard flush mount is included, while the AI Theta Angle Mount is an optional accessory for flexible ceiling or wall positioning.
Key Features
- 4K video with 8MP 3264 × 2448 resolution in a 4:3 aspect ratio.
- 36.2° horizontal, 27.7° vertical, and 44.4° diagonal field of view.
- 8MP CMOS sensor with fixed focal-length lens.
- Compact 22.8 mm diameter × 43.5 mm lens body weighing 15 g.
- Includes a standard flush mount for flat wall or ceiling installation.
Applications
The AI Theta Long-Distance Lens is suited to indoor surveillance locations where a more focused field of view can help capture detail at greater distances than the standard wide-angle AI Theta Lens. Ubiquiti specifically presents it for applications such as securing business-critical areas including retail points of sale.
Power and Operating Environment
The lens uses the proprietary Theta power method and is specified for a 5V DC, 0.5A supply with maximum power consumption of 2.5W. It operates from -20°C to 40°C (-4°F to 104°F) with 10% to 90% non-condensing humidity.
DC Supplies Product Note
The UVC-AI-THETA-LENS-LD is a lens module rather than a standalone network camera. It must be connected to a compatible AI Theta Hub for operation; the hub handles the network-side functionality for an AI Theta deployment.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UVC-AI-THETA-LENS-LD |
| Product Type | AI Theta Long-Distance Lens |
| Product Family | UniFi AI Theta |
| Resolution | 4K / 8MP |
| Image Resolution | 3264 × 2448 (4:3) |
| Sensor | 8MP CMOS |
| Lens | Fixed focal length |
| Horizontal Field of View | 36.2° |
| Vertical Field of View | 27.7° |
| Diagonal Field of View | 44.4° |
| Maximum Frame Rate | 24 FPS |
| Connection / Power Method | Theta proprietary |
| Power Supply | 5V DC, 0.5A |
| Maximum Power Consumption | 2.5W |
| Mounting | Wall, ceiling |
| Included Mount | Standard flush mount |
| Optional Mount | AI Theta Angle Mount |
| Operating Environment | Indoor only |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mounting Material | Polycarbonate |
| Dimensions | Ø22.8 × 43.5 mm (Ø0.9 × 1.7 in) |
| Weight | 15 g (0.5 oz) |
| Operating Temperature | -20°C to 40°C (-4°F to 104°F) |
| Operating Humidity | 10% to 90% non-condensing |
| Certifications | FCC, IC, CE |
FAQs
What is the UVC-AI-THETA-LENS-LD?
It is Ubiquiti's AI Theta Long-Distance Lens, a compact 8MP fixed-focal-length lens module designed to connect to an AI Theta Hub.
What is the field of view of the long-distance lens?
The lens provides a 36.2° horizontal, 27.7° vertical, and 44.4° diagonal field of view.
Does the lens provide 4K video?
Yes. It provides 4K video at 8MP resolution, with a maximum image resolution of 3264 × 2448 and a maximum frame rate of 24 FPS.
Is the UVC-AI-THETA-LENS-LD a standalone camera?
No. It is a lens module that connects to an AI Theta Hub, which provides the network-side functionality required for an AI Theta deployment.
Can the lens be ceiling or wall mounted?
Yes. The lens supports wall and ceiling mounting. A standard flush mount is included, while the AI Theta Angle Mount is available separately.
Is the lens suitable for outdoor installation?
No. Ubiquiti specifies the AI Theta Long-Distance Lens for indoor operation only.
