Detailed Specifications

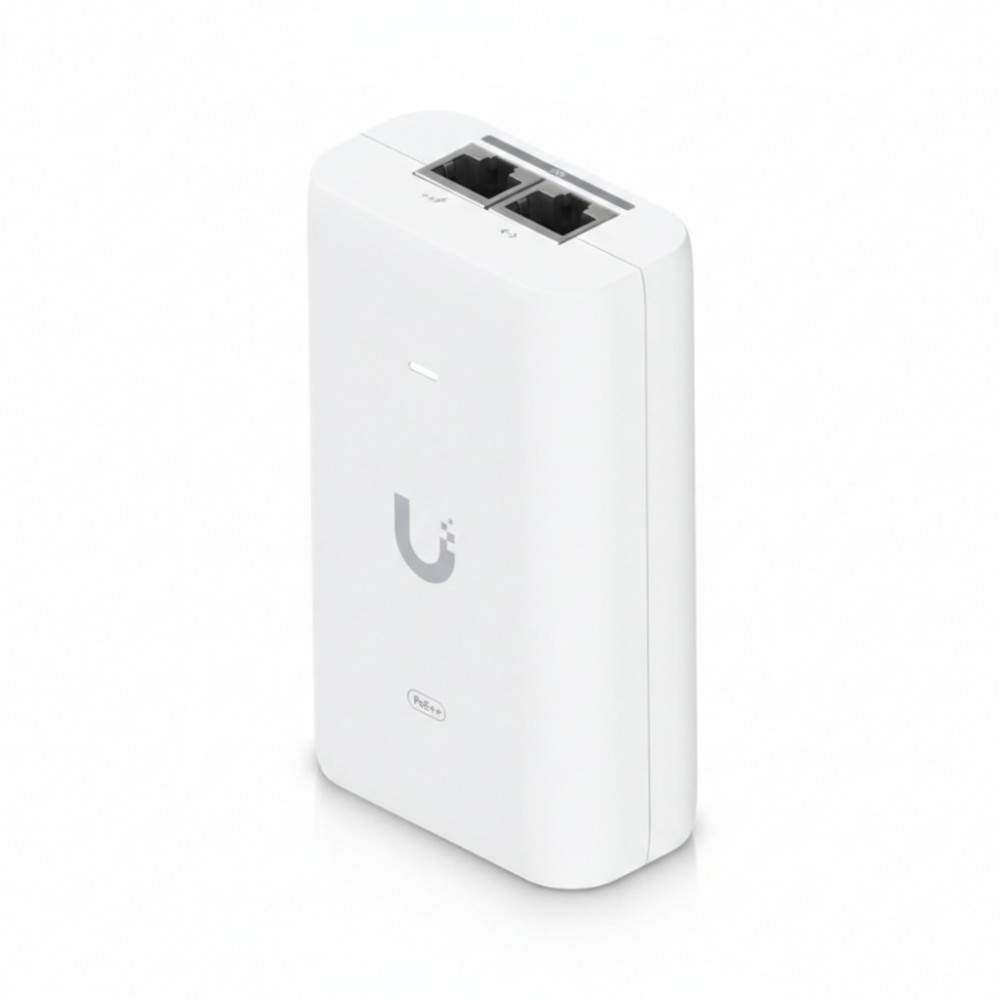

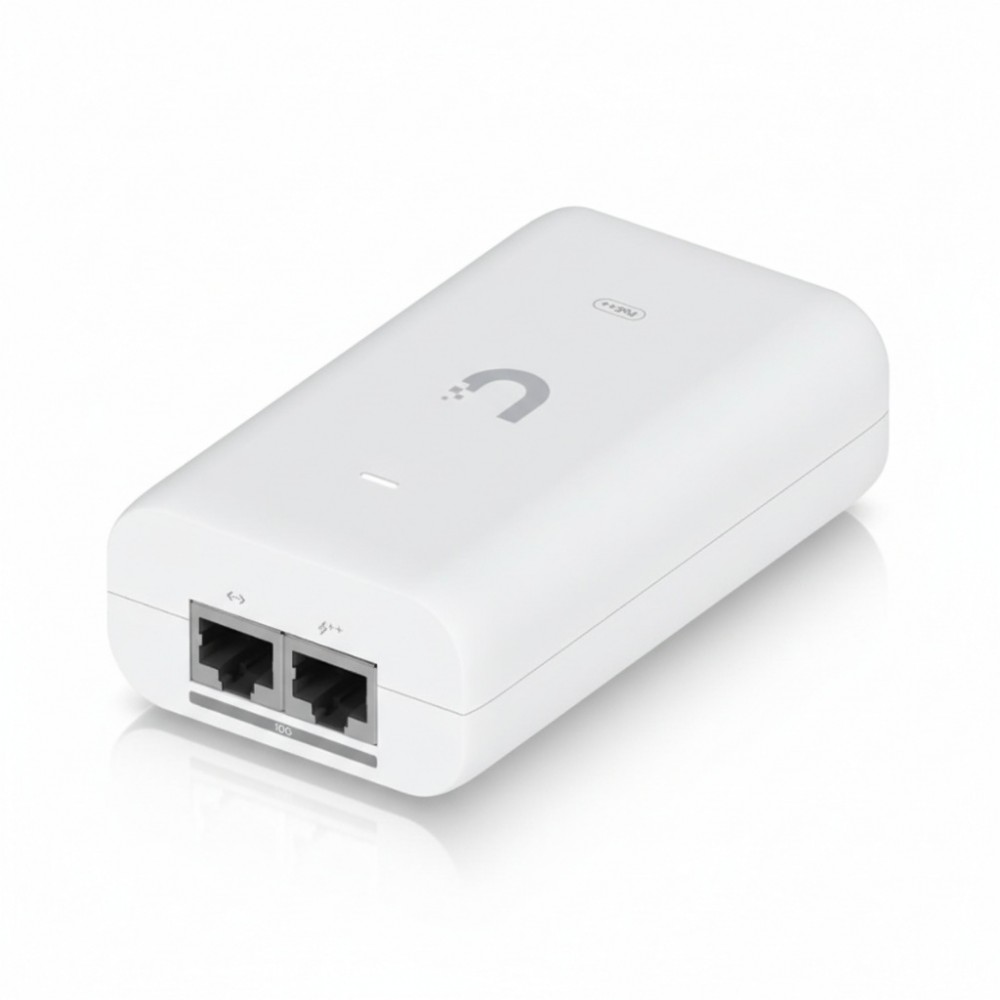

Ubiquiti UACC-POE++-10G 10G PoE Injector
Overview
The Ubiquiti UACC-POE++-10G is a 10 Gigabit PoE++ injector designed to power PoE++-capable UniFi devices where PoE switch power is limited or unavailable. It provides up to 60 W of IEEE 802.3bt Type 3 PoE++ power with a 10 Gb/s RJ45 uplink for high-speed LAN connectivity. The adapter includes built-in surge, peak-pulse, and overcurrent protections with LED status indication for operational feedback. Its compact form factor supports desktop or wall installation for office, branch, or edge network deployments.
Key Features
• Up to 60 W PoE++ power output
• 10 Gb/s LAN data support
• Surge and overcurrent protection
• LED status indicator
Technical Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number | UACC-POE++-10G |
| Product Type | PoE++ Power Injector |
| PoE Standard | IEEE 802.3bt Type 3 PoE++ |
| Maximum PoE Power | 60 W |
| Output Voltage | 54 V DC @ 1.12 A |
| Input Voltage | 100-240 V AC, 50/60 Hz |
| LAN Speed | 10 Gb/s |
| Ports | (1) RJ45 Data In, (1) RJ45 PoE Out |
| Ethernet Powering | 4-pair powering (pins 1,2,4,5+, 3,6,7,8-) |
| Protection | Surge, peak pulse, overcurrent |
| LED Indicator | Yes |
| Dimensions | 106 × 63 × 34 mm |
| Weight | 210 g |
| Operating Temp | 0 to 40 °C |
