Detailed Specifications

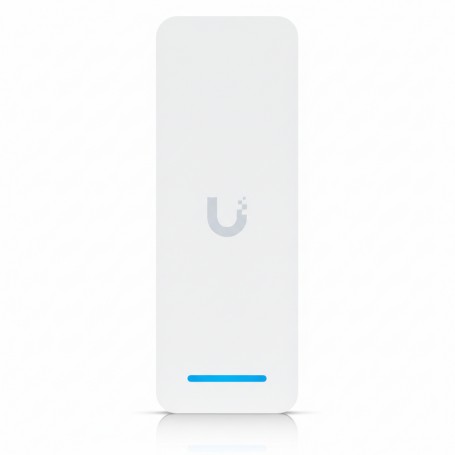

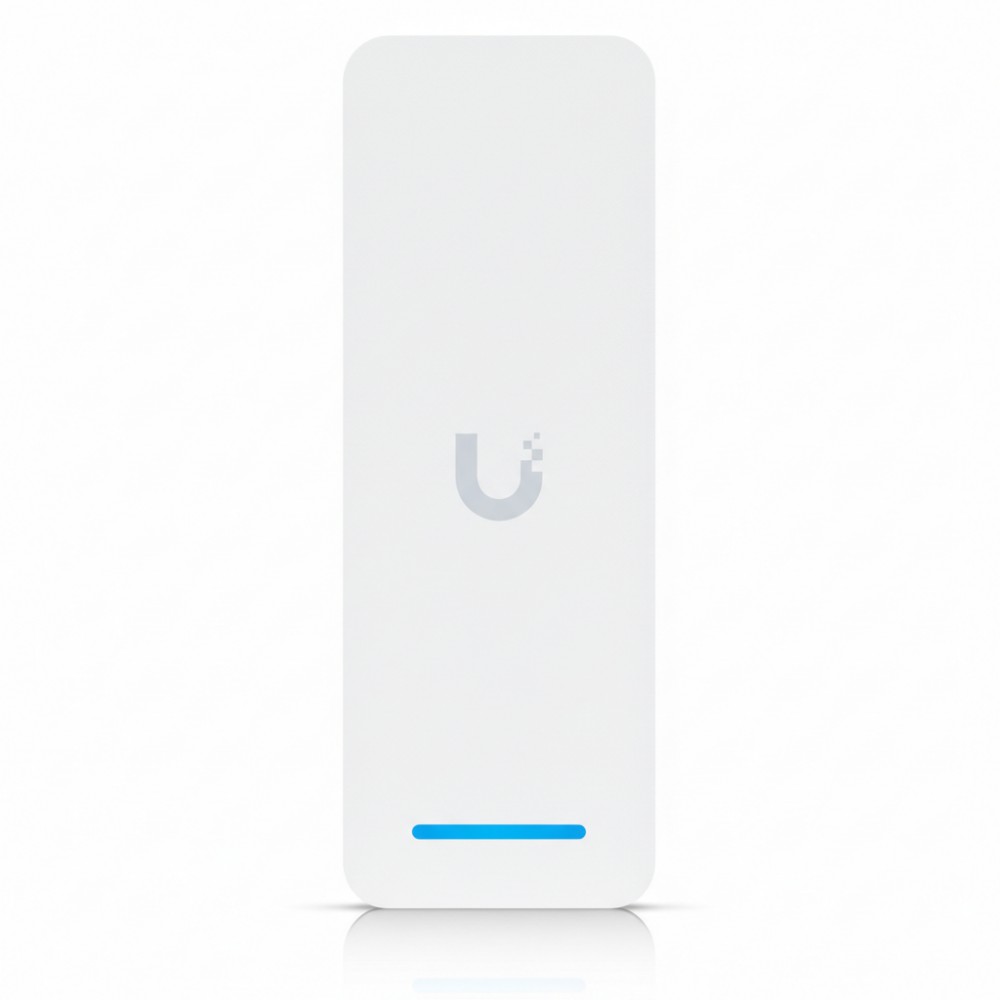

Ubiquiti UA-Ultra UniFi Access Ultra Reader
Overview
The Ubiquiti UA-Ultra is a UniFi access control reader with an integrated hub designed for single-door entry management. It supports contactless authentication with NFC cards, key fobs, and mobile unlock via Bluetooth, plus a built-in relay for direct lock control. The IP55 weather-resistant enclosure and PoE+ power make it suitable for indoor or outdoor credentialed entry points. Managed through the UniFi Access ecosystem, it simplifies access configuration and user permissions.
Key Features
Integrated reader + hub for one door
NFC & BLE mobile unlock support
PoE+ powered with single LAN feed
IP55 weatherproof for indoor/outdoor
Technical Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number | UA-Ultra |
| Product Type | UniFi Access Reader |
| Authentication | NFC card / key fob / mobile (BLE) |
| Lock Terminal | 12 V DC, 1 A |
| Exit Request Input | Digital input |
| Interface | 10/100 MbE RJ45 |
| Power Method | PoE+ (44-57 V DC) |
| Max Power Consumption | 18 W |
| Weatherproof Rating | IP55 |
| Mount Options | Wall / gang box |
| Connectivity | Ethernet + BLE 4.2 |
| Indicators | RGB LED, buzzer |
| NFC Standards | ISO 14443A/B, 15693; NFC Tag 1-5; MIFARE Classic/Plus/Ultralight/DESFire |
| Operating Temp | −30 °C to 40 °C |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
