Detailed Specifications

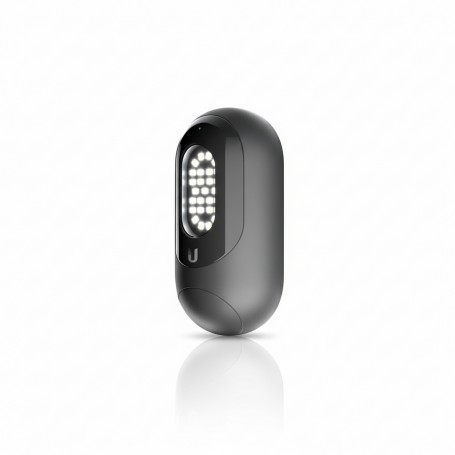

Ubiquiti UP-FLOODLIGHT UniFi Protect Outdoor Floodlight
Overview
The Ubiquiti UP-FLOODLIGHT is an outdoor LED floodlight engineered for integration with the UniFi Protect ecosystem, providing motion-activated illumination and environmental sensing for security lighting. It outputs 550 lumens and includes integrated motion and light sensors to automate activation based on movement or ambient light levels. The unit connects via 10/100 MbE and is powered by standard 802.3af PoE, simplifying installation with a single cable for power and network. It suits perimeter, entryway, driveway, and outdoor area illumination in residential or commercial installations managed through UniFi Protect.
Key Features
550 lumen LED output with motion sensor
Integrated ambient light sensor
10/100 MbE PoE-powered interface
IPX5 weatherproof housing
Technical Specifications
| Specification | Value |
|---|
| Brand | Ubiquiti |
| Part Number | UP-FLOODLIGHT |
| Product Type | UniFi Protect Outdoor Floodlight |
| Light Output | 550 lumens |
| Networking Interface | 1× 10/100 MbE RJ45 |
| Power Method | 802.3af PoE (48 V, 0.22 A) |
| Max Power Consumption | ~10.5 W |
| Motion Sensor | Yes (up to ~5 m detection) |
| Ambient Light Sensor | Yes |
| Weatherproof Rating | IPX5 |
| Bluetooth | Bluetooth 4.0 |
| Operating Temp | -10 to 45 °C |
| Operating Humidity | 20 % to 80 % (non-condensing) |
| Enclosure Material | Plastic, metal |
| Certifications | FCC, IC, CE |
