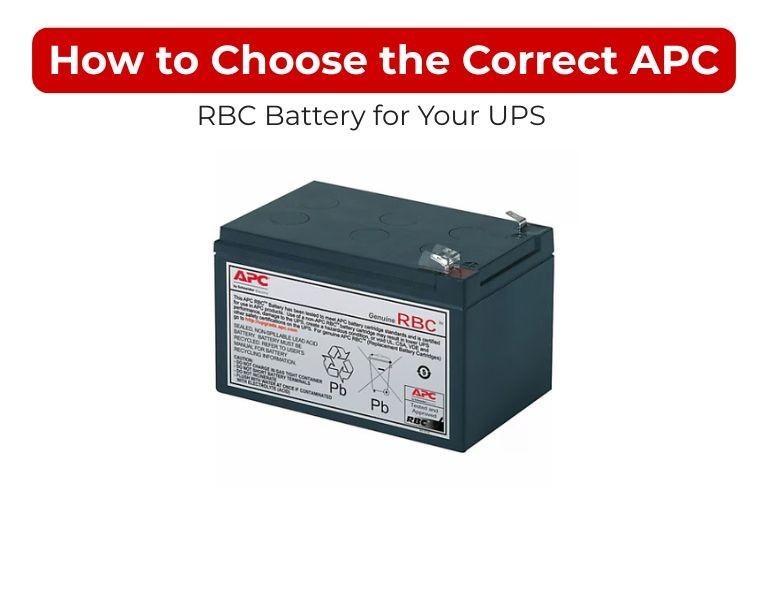

How to Choose the Correct APC RBC Battery for Your UPS

Introduction

The correct APC RBC battery is selected strictly by matching the UPS model to its designated RBC part number.
Battery voltage or size alone is not enough—APC UPS systems require specific cartridges for safe operation and expected runtime.
Using the wrong RBC leads to errors, reduced backup time, or hardware risk.

Use Case / Deployment Fit

Relevant for:

• Smart-UPS and Back-UPS battery replacement
• Rack-mounted UPS in server rooms
• Office and branch infrastructure refresh cycles

Use when:

• UPS shows battery replacement alert
• Runtime drops below acceptable threshold
• Performing scheduled maintenance (3–5 years cycle)

Technical Breakdown

Step 1: Identify Exact UPS Model

Check:

• Rear label (e.g., SMT1500I, SUA3000RMXLI)
• LCD panel or management interface
• Asset records

RBC selection depends entirely on this model number.

Step 2: Match with Correct RBC Part Number

Each UPS has a predefined compatible RBC.

Examples:

• SMT1500I → RBC7
• SUA3000RMXLI → RBC55
• BR1500GI → RBC17

Always verify through official compatibility charts.

Step 3: Understand What an RBC Includes

An APC RBC cartridge is a complete unit:

• Pre-configured sealed batteries
• Internal wiring and connectors
• Correct voltage configuration
• Tray or enclosure for form factor

Do not replace with loose batteries in production setups.

Step 4: Validate Electrical Specifications

Even with correct RBC:

• Confirm voltage alignment (24V / 48V / higher)
• Check internal battery count
• Ensure expected runtime matches requirement

Higher load reduces effective runtime even with new batteries.

Step 5: Check Physical Fit & Installation Type

For rack deployments:

• Verify tray size and rail compatibility
• Check connector orientation
• Confirm hot-swap capability

Incorrect fit delays installation even if electrically correct.

Comparison Table (if needed)

Limitations & Trade-offs

• OEM vs third-party RBCs
  Lower cost alternatives may compromise lifespan or compatibility
• Same RBC, different runtime
  Runtime varies based on load and UPS condition
• Hot-swap risk
  Supported models allow it, but still requires controlled conditions
• Shelf life matters
  Old stock batteries degrade even if unused

Procurement Insight

• Always purchase using RBC part number, not specs
• Check manufacturing date for freshness
• Maintain spare cartridges for critical systems
• Align replacement cycles across sites
• Validate supplier authenticity to avoid counterfeit units

Enterprise IT teams often standardize APC RBC sourcing through distributors like DC Supplies to maintain consistency across multi-site deployments.

Real-world Scenarios

Scenario 1: SMB Server UPS

• UPS: SMT1500I
• Issue: Runtime dropped to 4 minutes
• Action: Replace with RBC7
• Result: Restored to ~15 minutes runtime

Scenario 2: Rack UPS in Data Center

• UPS: SUA3000RMXLI
• Requirement: No downtime
• Action: Pre-stage RBC55, scheduled swap
• Result: Stable replacement without service impact

Scenario 3: Incorrect Battery Use

• Issue: Generic batteries used instead of RBC
• Result: UPS error + improper fit
• Fix: Install correct APC RBC

Final Recommendation

Select APC RBC batteries strictly based on UPS model compatibility.
Avoid using loose or third-party batteries in critical environments.
Correct cartridge selection ensures predictable runtime, safe operation, and reliable maintenance planning.
