Detailed Specifications
StarTech.com MDP2DPMM10 10 ft Mini DisplayPort to DisplayPort 1.2 Cable - 4k - 10ft
Overview :

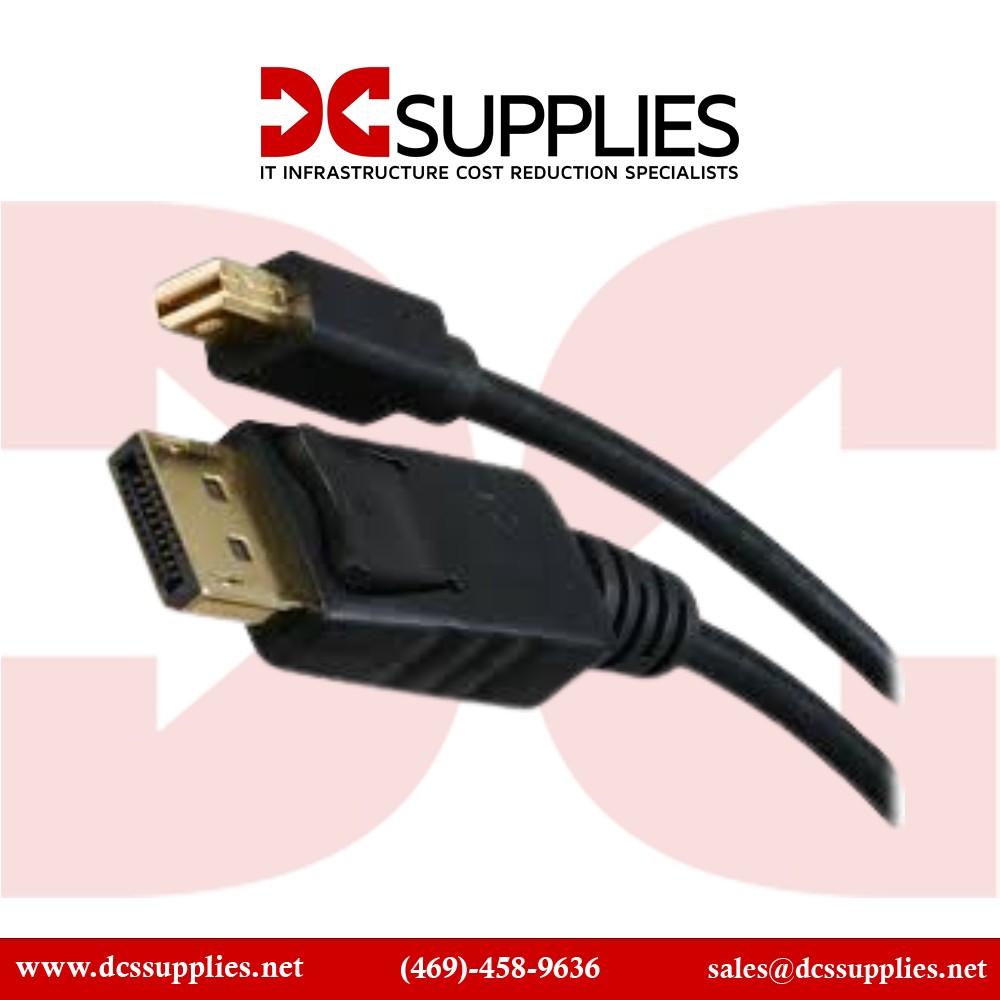

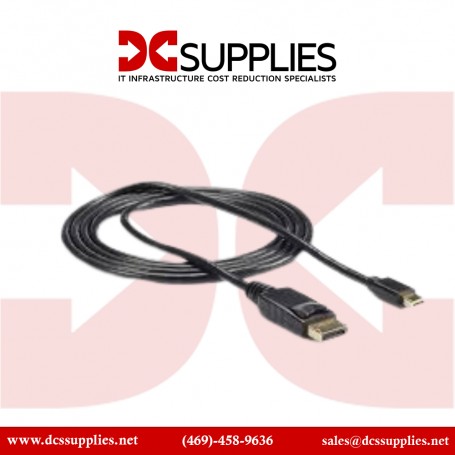

The MDP2DPMM10 10ft Mini DisplayPort™ to DisplayPort Adapter Cable, features a Mini DP male connector on one end, and a DP male connector on the other, allowing you to connect any Mini DisplayPort- equipped laptop (including the Mac® family of products) to an HDTV, monitor or projector that uses a standard DisplayPort connection.
The mDP to DP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The MDP2DPMM10 is backed by StarTech.com's Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
About this item :
- 4K x 2K RESOLUTION SUPPORT: Create a high-resolution 4K x 2K connection with HBR2 support between your Mini DisplayPort equipped laptop and a standard DisplayPort monitor with this mDP to DP adapter cable
- BACKWARD COMPATIBLE: Designed and manufactured to DisplayPort 1.2 standards, this mDP to DP cable is also backward compatible with DisplayPort 1.1
- HIGH TRANSFER SPEEDS: This Mini DisplayPort to DisplayPort cable features support for High Bit Rate 2 (HBR2) bandwidth of up to 21.6 Gbps
- BROAD COMPATIBILITY: For ultimate convenience, this Mini DisplayPort to DisplayPort adapter cable works with your PC, Mac and Microsoft Surface devices, as well as mDP-equipped computers with Thunderbolt 2 ports
- Latching DisplayPort connector prevents accidental disconnection
Specifications :
Product Name |
StarTech.com 10 ft Mini DisplayPort to DisplayPort 1.2 Cable - 4k - 10ft |
Manufacturer Part Number |
MDP2DPMM10 |
Product Type |
A/V Cable |
Cable Type |
DisplayPort/Mini DisplayPort |
Connector Type on First End |
DisplayPort 1.2 Digital Audio/Video - Male |
Connector Type on Second End |
Mini DisplayPort 1.2 Digital Audio/Video - Male |
Product Color |
Black |
Cable Length |
10 ft |
Environmentally Friendly |
Yes |
Connector Plating |
Nickel
Gold
|
American Wire Gauge |
32 AWG |
Supported Resolution |
3840 x 2400 |
Jacket Material |
Polyvinyl Chloride (PVC) |
Connector on First End Details |
1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male |
Connector on Second End Details |
1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male |
Connector Gender on First End |
Male |
Connector Gender on Second End |
Male |
Country of Origin |
Vietnam |
Data Transfer Rate |
21.6 Gbit/s |
Jacket Type |
CMG |
Packaged Quantity |
1 |
Shielding |
Yes |
Conductor |
Copper |
