Detailed Specifications

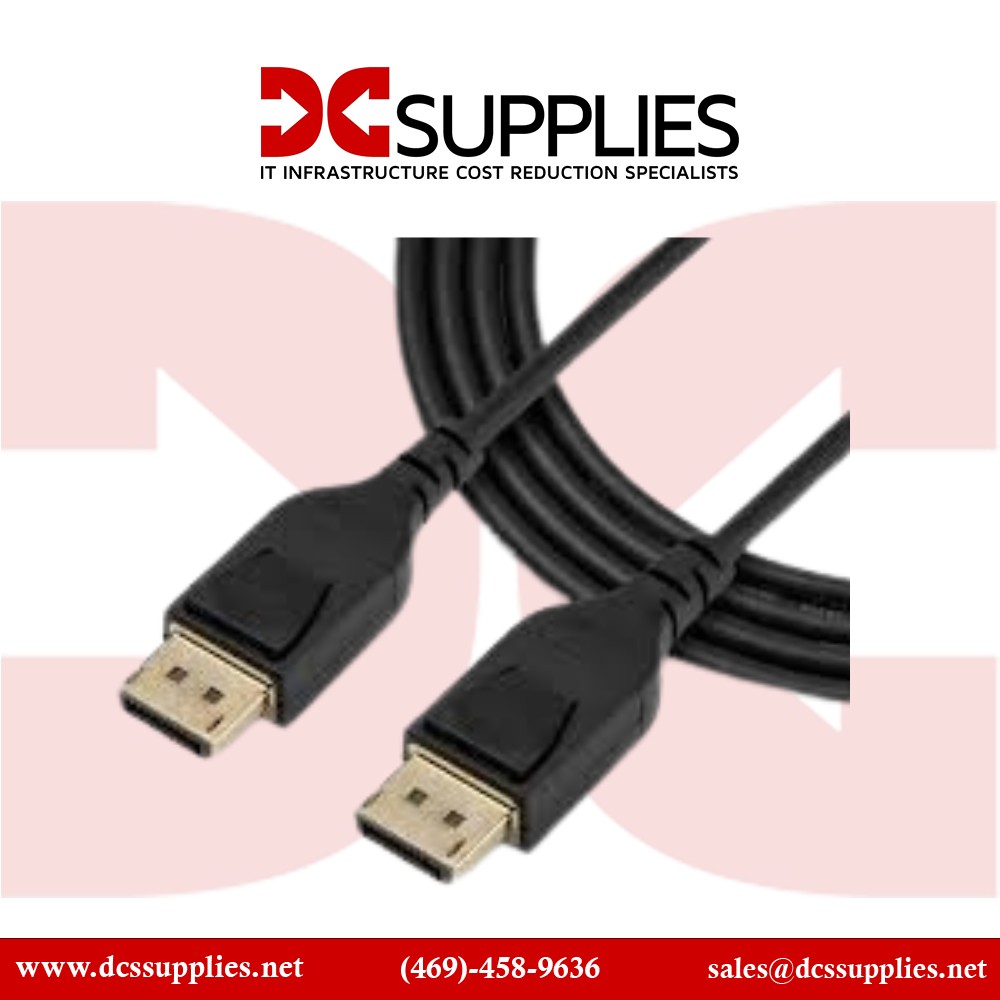

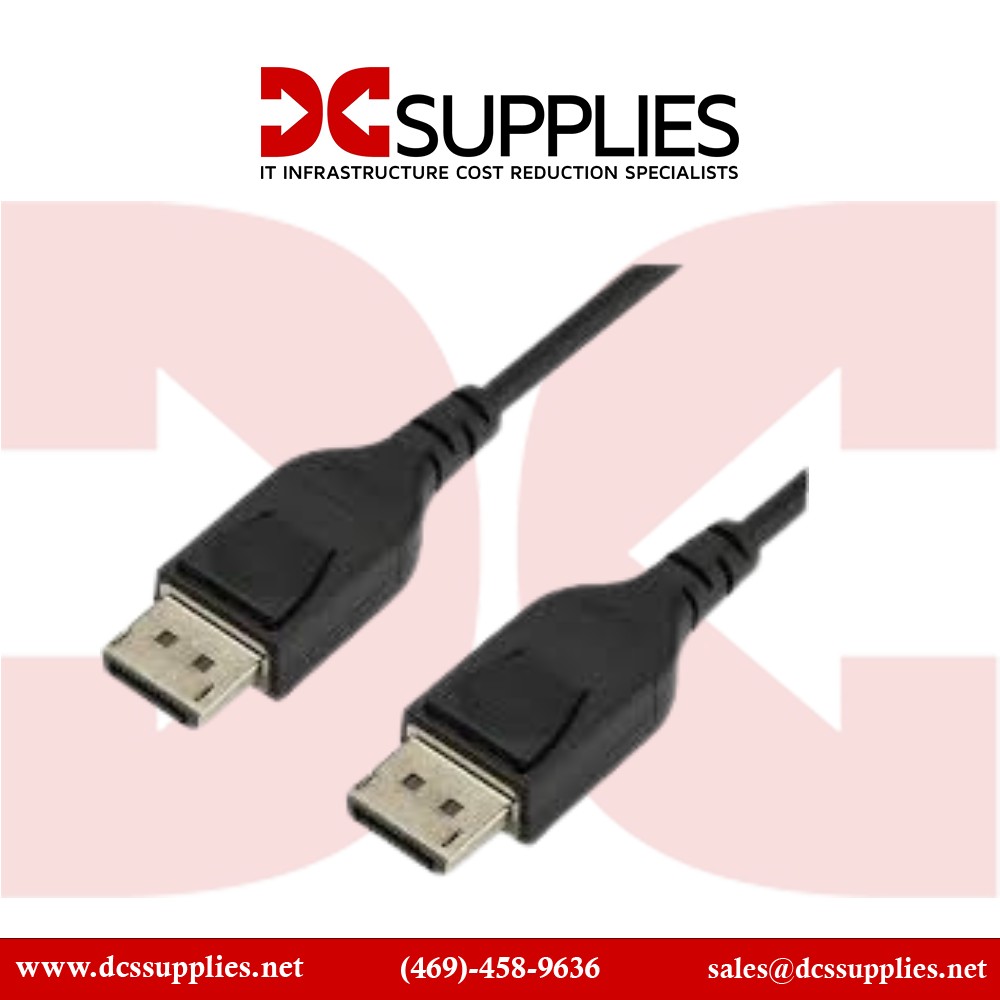

StarTech.com DP14MM2M 2m VESA Certified DisplayPort 1.4 Cable 7ft DP 8K 60Hz 4K HBR3
Overview :
This DisplayPort DP14MM2M 1.4 cable connects your DisplayPort™ laptop, Chromebook or desktop computer to a "super ultra-high definition" 8K monitor, TV, DP14MM2M or projector. It supports resolutions up to 8K (7680x4320) @ 60Hz.
The DisplayPort monitor cable provides the essential connection to support the next generation of super ultra-high definition video.
This cable is VESA® to ensure full compliance and efficient operation of the higher link rate of HBR3. It has been tested to meet all DP 1.4 specifications to ensure quality and reliability.
The Superior Performance of DisplayPort 1.4
This 8K DisplayPort cable supports all DP 1.4 features DP14MM2M:
- High Bit Rate 3 (HBR3) Bandwidths of 32.4 Gbps supporting the latest in industry standards
- High Dynamic Range (HDR) for higher contrast ratio and vivid colors
- Multi-Stream Transport (MST) for daisy-chaining multiple monitors
- Display Stream Compression 1.2 (DSC) for maximum resolution output
- Forward Error Correction to manage data transmission errors
- High-Bandwidth Digital Content Protection (HDCP 2.2) for a secure connection between source and display
- 32 Uncompressed Digital Audio Channels
Flexible Cable with Reliable Latched Connectors
The cable has a slim professional grade 34 AWG construction that allows for flexible installation while offering superior reliability for a clean quality installation. Each connector features latches that provide secure connections between your devices.
8K: Enabling Business Continuity
8K has a resolution of 7680 x 4320 and is also known as 4320p and Super Ultra High Definition (SUHD). It is seen in digital signage and other commercial displays that require the highest available resolution. This cable is backward compatible with 4K and 5K displays making it the perfect peripheral to start futureproofing your cabling infrastructure.
Specifications :
| Product Name |
StarTech.com 2m VESA Certified DisplayPort 1.4 Cable 7ft DP 8K 60Hz 4K HBR3 |
| Manufacturer Part Number |
DP14MM2M |
| Product Type |
A/V Cable |
| Cable Type |
DisplayPort |
| Connector Type on First End |
DisplayPort 1.4 Digital Audio/Video - Male |
| Connector Type on Second End |
DisplayPort 1.4 Digital Audio/Video - Male |
| Product Color |
Black |
| Cable Length |
6.56 ft |
| Environmentally Friendly |
Yes |
| Connector Plating |
Nickel
Gold
|
| American Wire Gauge |
34 AWG |
| Supported Resolution |
7680 x 4320 |
| Jacket Material |
Polyvinyl Chloride (PVC) |
| Connector on First End Details |
1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male |
| Connector on Second End Details |
1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male |
| Connector Gender on First End |
Male |
| Connector Gender on Second End |
Male |
| Country of Origin |
China |
| Data Transfer Rate |
32.4 Gbit/s |
| Jacket Type |
VW-1 |
| Packaged Quantity |
1 |
| Shielding |
Yes |
