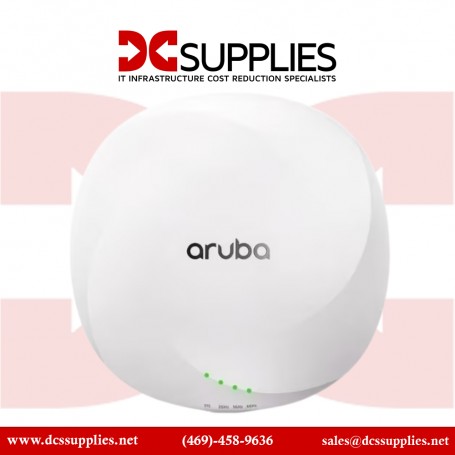

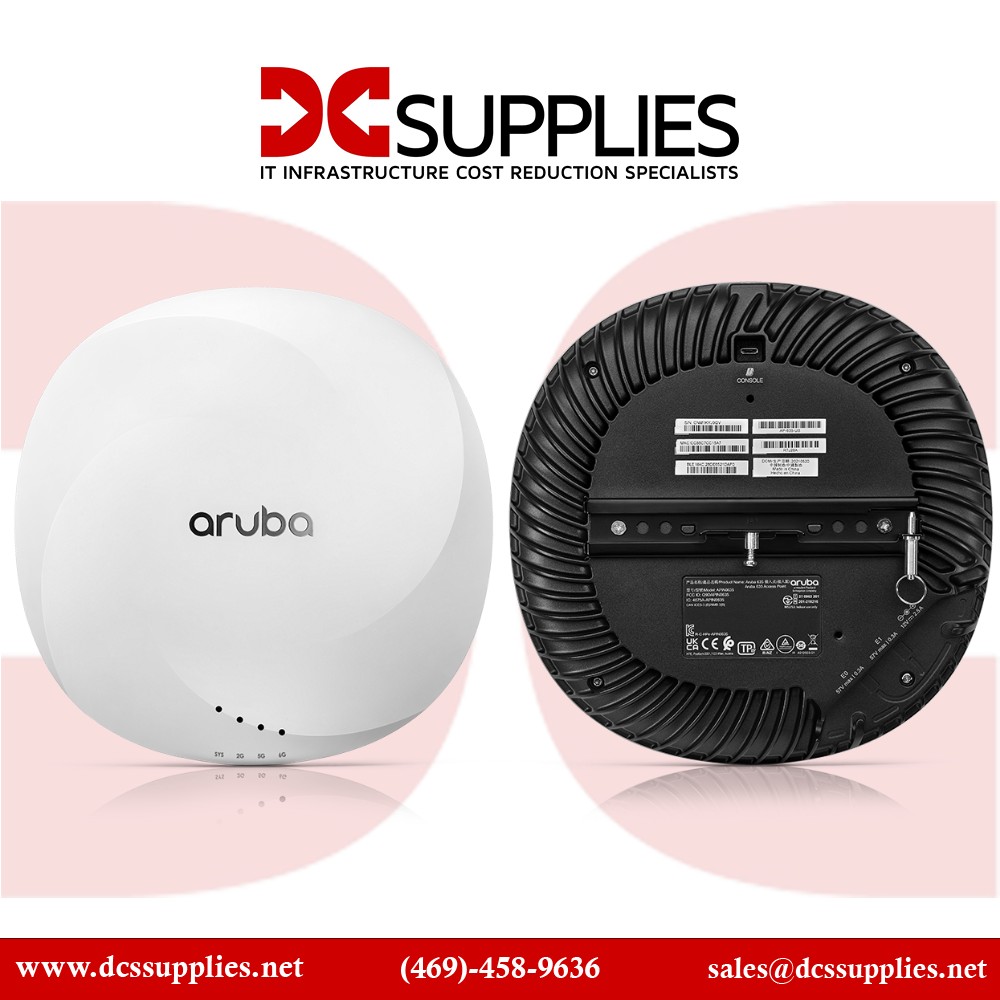

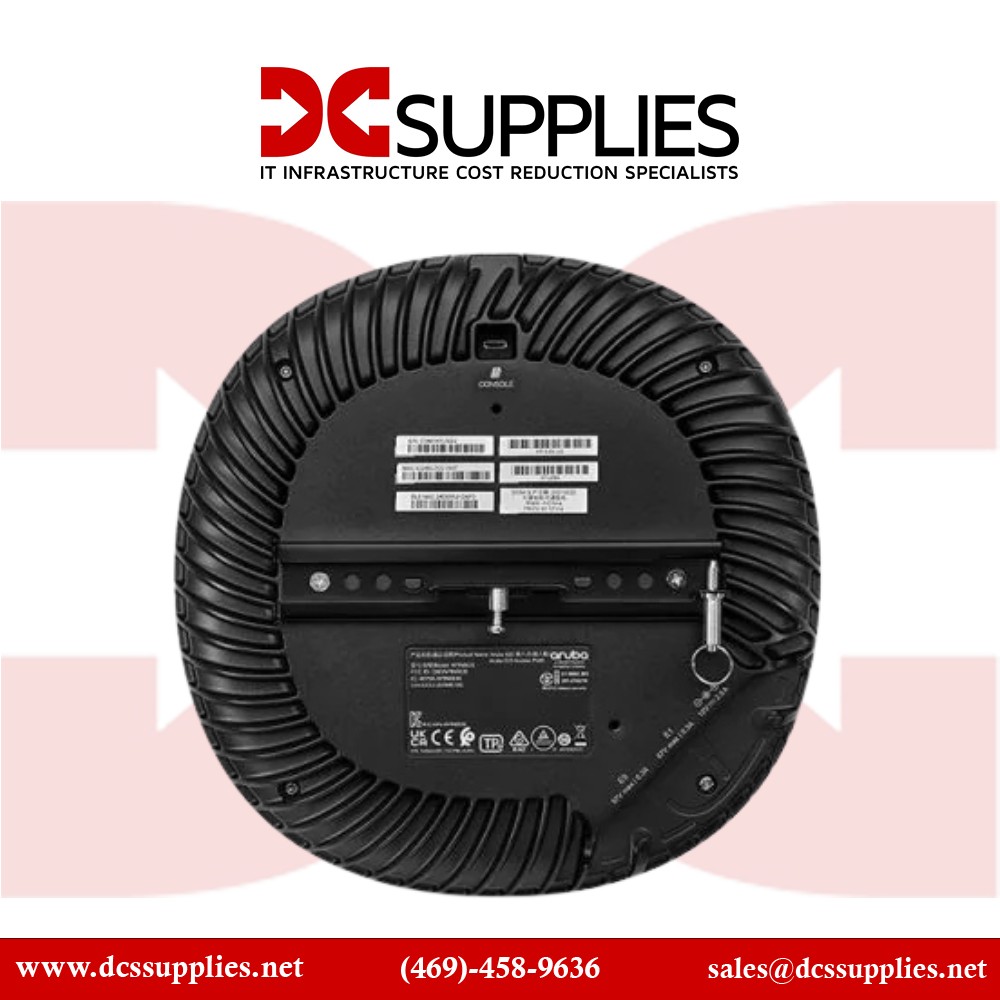

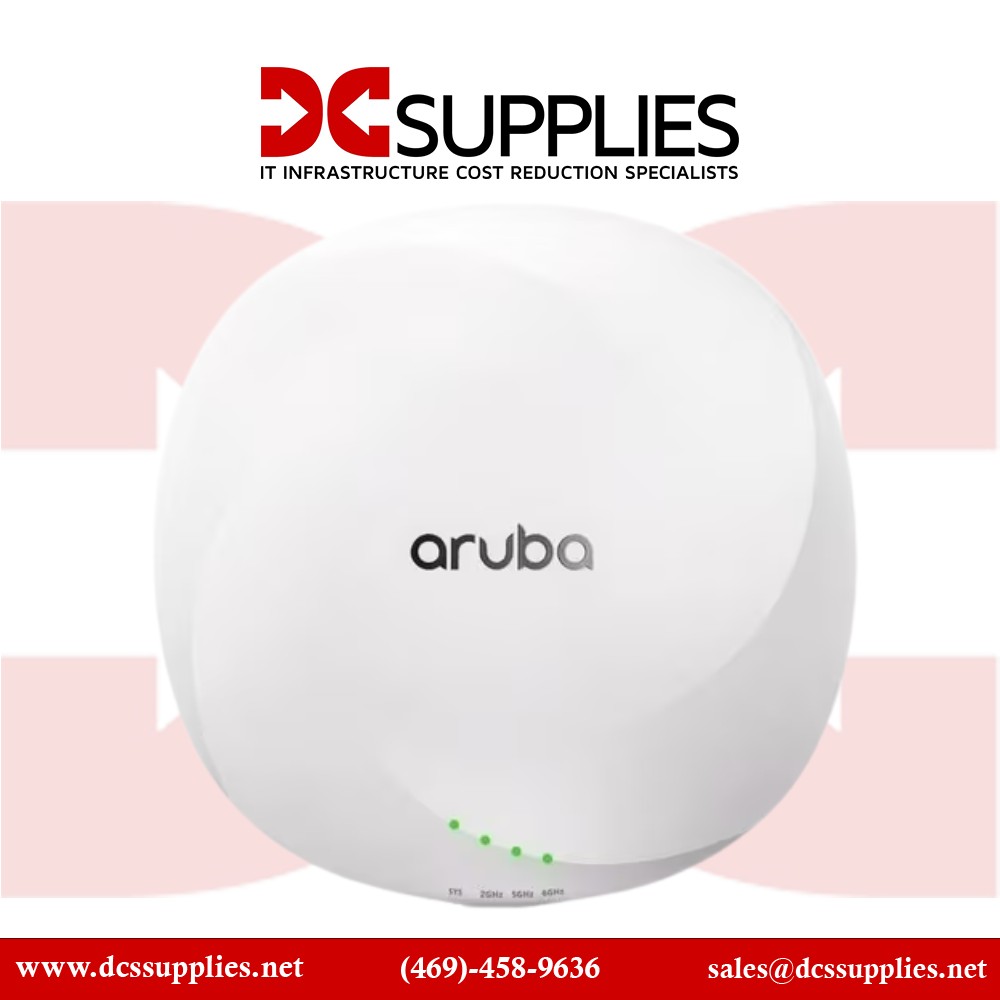

HPE Aruba R7J28A AP-635 US Campus AP Wireless Access Point

New

In Stock

High-performance AP for US campuses with seamless connectivity.
×




$899.90

  • New

Detailed Specifications

HPE R7J28A

Aruba R7J28A AP‑635 US Campus Access Point – Tri‑Radio Wi‑Fi 6E (2×2:2)

The HPE Aruba AP‑635 (R7J28A) is an indoor, tri‑radio Wi‑Fi 6E access point designed to meet the demands of high-density campus and enterprise environments. With support for the newly opened 6 GHz band, blazing-fast data rates, and Aruba’s intelligent RF management, it delivers seamless connectivity for bandwidth-intensive applications such as AR/VR, HD video, and large-scale device deployments.

Features

Equipped with three concurrent radios spanning 2.4 GHz, 5 GHz, and 6 GHz, the AP‑635 unlocks up to 1200 MHz of clean, low-interference spectrum—doubling capacity compared to legacy Wi‑Fi systems The result: high-throughput, low-latency wireless access ideal for education, healthcare, and corporate campuses.

Advanced Options

Multiple 160 MHz channels and 2×2 MIMO ensure peak performance across all bands, with intelligent tri‑band filtering to minimize band-to-band interference

Product Key Features

    •  Tri‑radio (2.4 GHz, 5 GHz, 6 GHz) 2×2:2 Wi‑Fi 6E delivering up to 3.9 Gbps aggregate bandwidth

    •  Dual Smart Rate ports (1 GbE/2.5 GbE) with hitless failover on Ethernet & PoE

    •  Aruba-exclusive features: ClientMatch®, AirMatch®, Advanced Cellular Coexistence

    •  Built‑in BLE 5.0 and ZigBee radios for IoT integration

    •  Compact, ceiling-friendly design with integrated downtilt omni‑directional antennas

    •  Supports 802.3af/at/bt PoE‑PD or DC input

Reliability & Performance

Engineered for mission-critical use, the AP‑635 includes dual Smart Rate Ethernet ports with hitless failover, ensuring uninterrupted connectivity even during link or power issues It supports PoE‑PD or DC power options, and Aruba’s RF ecosystem—AirMatch, ClientMatch, and Advanced Cellular Coexistence—dynamically optimizes channel use and client distribution. BLE 5.0 and ZigBee support adds IoT visibility without sacrificing performance. The integrated antennas, combined with rugged industrial design, facilitate discreet and reliable ceiling‑mount deployments.

Key Features :

    • Tri‑radio Wi‑Fi 6E (2×2:2 on 2.4/5/6 GHz), up to 3.9 Gbps

    • Dual Smart Rate 1/2.5 GbE ports with hitless failover

    • Aruba AirMatch®, ClientMatch®, Advanced Cellular Coexistence

    • BLE 5.0 + ZigBee IoT support

    • 802.3af/at/bt PoE‑PD or DC power input

    • Internal downtilt omni antennas optimized for ceiling mounting

SpecificationDetails
Model Number R7J28A
Product Type Indoor Tri‑Radio Wi‑Fi 6E Access Point
Wireless Standard IEEE 802.11a/b/g/n/ac/ax (Wi‑Fi 6E)
Radios 3× (2.4/5/6 GHz), 2×2:2 MIMO
Max Aggregate Throughput 3.9 Gbps (2.4 GHz = 287 Mbps; 5 GHz = 1.2 Gbps; 6 GHz = 2.4 Gbps)
Ethernet Ports 2× RJ‑45 Smart Rate (1 GbE/2.5 GbE), PoE‑PD enabled
PoE Standard IEEE 802.3af/at/bt
BLE/ZigBee Bluetooth 5.0, ZigBee (802.15.4)
Antennas Internal downtilt omni-directional; gain: ~4–7 dBi
Power Options PoE‑PD (~23.8 W max) or DC input
Dimensions (WxDxH) ~8.7" × 8.7" × 2" (~221×221×51 mm)
Weight ~2.87 lb (~1.3 kg)
Mounting Ceiling/Wall plate ready with integrated bracket
Management ArubaOS or InstantOS, Cloud-Ready
Certifications FCC, ISED, CE, UL, IEC, RED, Wi‑Fi Certified 6
Regulatory Domain US-specific 6 GHz regulatory tables
