Ubiquiti Networks USW-Flex-XG Unifi Switch Flex XG View larger
Previous Next

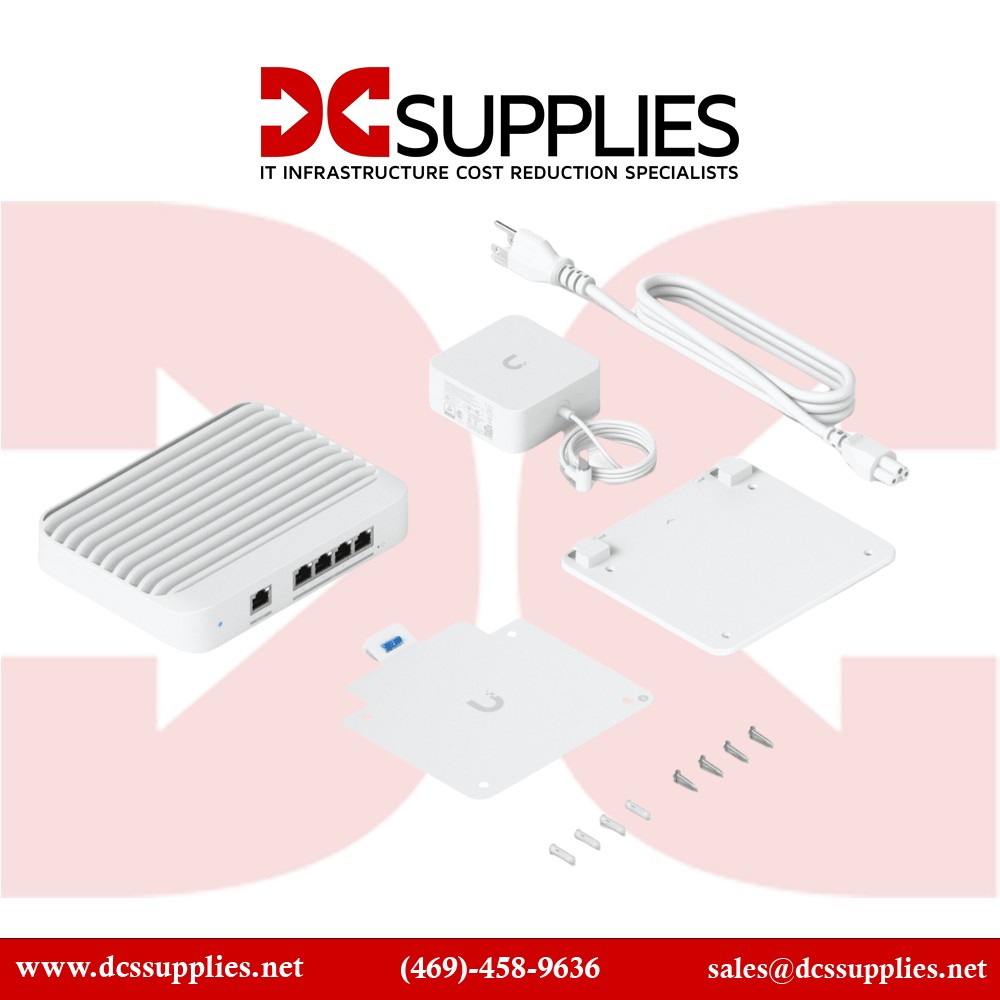

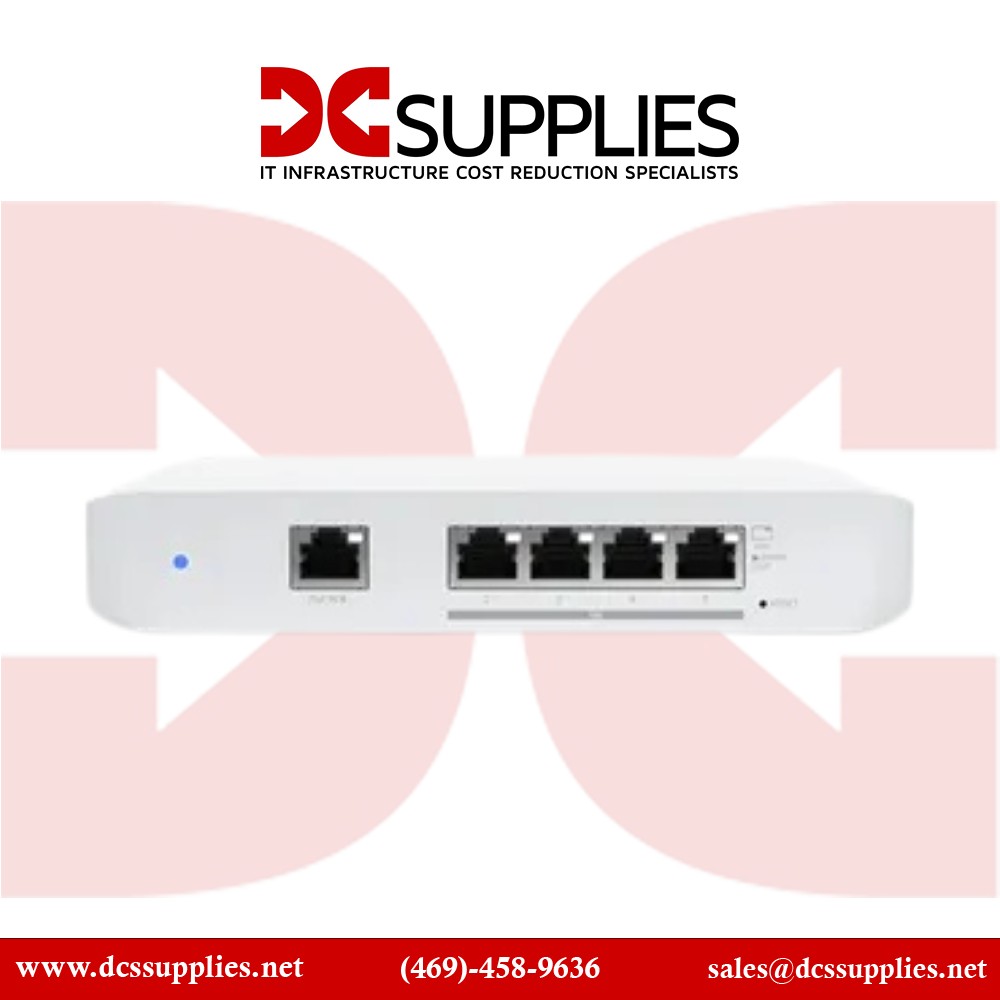

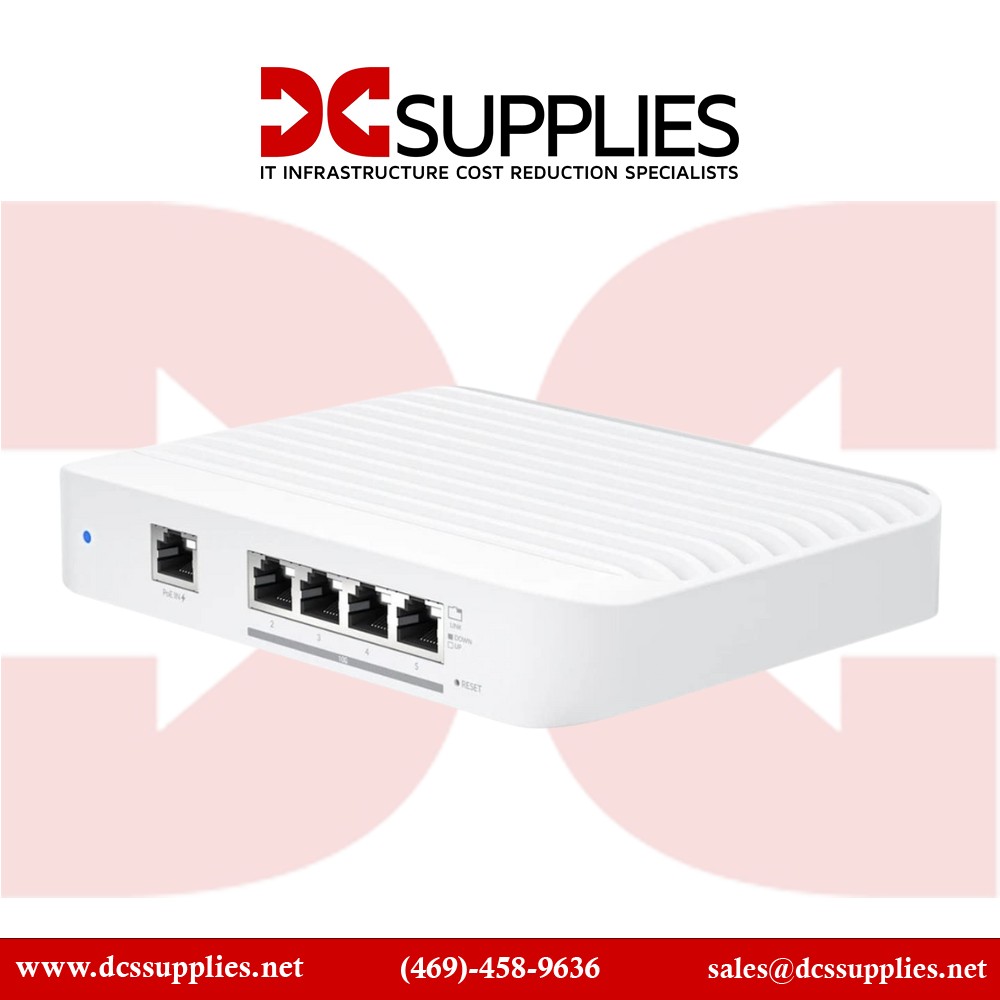

Ubiquiti Networks USW-Flex-XG Unifi Switch Flex XG

USW-Flex-XG

New

In Stock

Compact 10 GbE Layer‑2 Switch with PoE and USB‑C
×




$319.90

Detailed Specifications

Ubiquiti USW‑Flex‑XG

UniFi Switch Flex XG

The UniFi Flex XG (USW‑Flex‑XG) is a powerful yet compact 10 Gigabit Layer‑2 managed switch tailored for advanced networking setups. Designed to fit on desktops or walls, it supports four 10 GbE RJ‑45 ports alongside a unique Gigabit PoE input that powers the unit and doubles as a network uplink, offering unparalleled deployment flexibility. Ideal for high-bandwidth applications such as network aggregation, home lab environments, or small enterprise networks.

Features :

This switch delivers robust performance with its four 10 GbE multi-gigabit ports, perfect for connecting servers, NAS units, or 10 GbE-capable access points. Its compact form factor makes it suitable for space-constrained environments without sacrificing throughput. The unique Gigabit RJ-45 port serves as both PoE input and network uplink, allowing power and data transmission over a single cable.

Advanced Options :

Powering the Flex XG is flexible: you can choose between standard PoE (802.3at up to 25 W) or a 5 V/5 A USB‑C power adapter, giving administrators installation versatility depending on infrastructure preferences. With substantial switching performance—82 Gbps backplane and 41 Gbps non-blocking throughput—it handles data-intensive workloads smoothly, supported by a forwarding rate of 61 Mpps and Layer‑2 features like LACP, VLANs, jumbo frames, ACLs, and more.

Product Key Features

  • 4 × 10 GbE RJ‑45 ports for high-speed multi-gigabit connectivity
  • 1 Gigabit RJ‑45 port that doubles as PoE input (power and uplink over one cable)
  • Dual power options: PoE (802.3at, 25 W) or USB‑C (5 V, 5 A)
  • Switching capacity of 82 Gbps, non-blocking throughput of 41 Gbps, and a forwarding rate of 61 Mpps
  • Layer‑2 features with VLAN, ACLs, LACP, jumbo frames, and more
  • Fanless, compact polycarbonate enclosure

Reliability & Performance :

Built from sturdy polycarbonate, the Flex XG maintains a temperature range of –5 °C to 45 °C, and includes ESD protection (±16 kV air, ±12 kV contact). Its fanless design ensures silent operation, making it ideal for both office and home environments. The switch delivers exceptional performance with its 82 Gbps switching capacity and 41 Gbps non-blocking throughput, efficiently handling data-intensive workloads while supporting advanced Layer-2 networking features for optimal traffic management.

Key Features :

  • 4 × 10 GbE RJ‑45 ports
  • 1 × Gigabit RJ‑45 PoE input port (network + power via one cable)
  • PoE and USB‑C power support
  • 82 Gbps switching capacity, 41 Gbps non-blocking throughput, 61 Mpps forwarding rate
  • Layer‑2 features with VLAN, ACLs, LACP, jumbo frames, and more
  • Fanless, compact polycarbonate enclosure

Specifications :

SpecificationDetails
Model Number USW‑Flex‑XG
Product Type Managed 10 GbE Layer‑2 Switch
Network Ports 4 × 10 GbE RJ‑45 + 1 × 1 GbE RJ‑45 (PoE input/uplink)
Switching Capacity 82 Gbps
Non-Blocking Throughput 41 Gbps
Forwarding Rate 61 Mpps
Power Methods 802.3at PoE (50‑57 V, 25 W) or USB‑C (5 V, 5 A)
Power Input Options PoE RJ‑45 or USB‑C adapter
Dimensions 135 × 185 × 32 mm (5.3″ × 7.3″ × 1.3″)
Weight ~1.2 kg (2.65 lb)
Material Polycarbonate
Operating Temperature –5 °C to 45 °C (23 °F to 113 °F)
Controls & Protection Layer‑2 VLANs, ACLs, LACP, jumbo frames, storm control, ESD protection
Certifications CE, FCC, IC, NDAA compliant
Management UniFi Network Controller software
Mounting Options Desktop or wall-mountable
