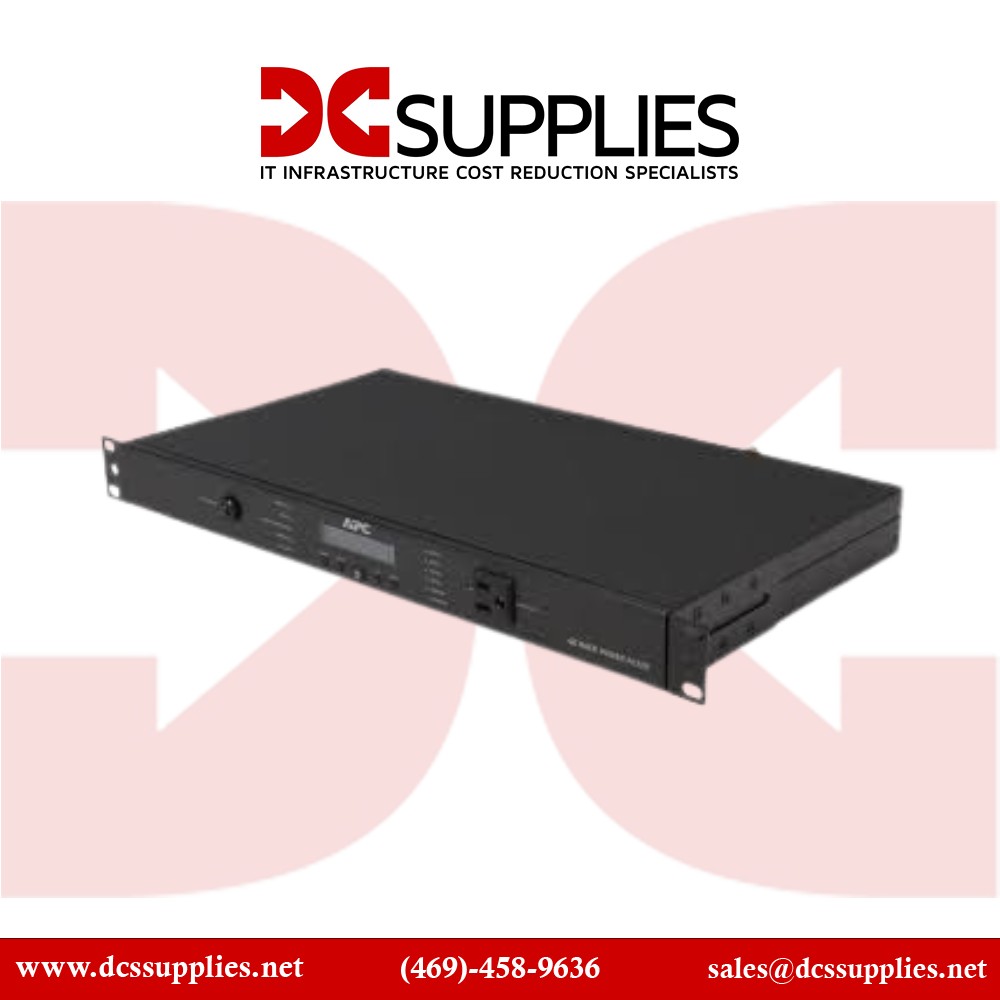

APC G5BLK Surge Protector Black 120 V

New

15A rack-mounted power filter with surge protection and 9 outlets.
×




  • New

Detailed Specifications

APC

G5BLK

Surge Protector Rack Power Conditioner – 120 V

The APC G5BLK is a rugged, rack-mountable surge protector and power conditioner delivering 120 V, 15 A output—perfect for safeguarding and sequencing power to AV, networking, and IT equipment.

Features

Ideal for audio-visual gear, servers, and sensitive network devices, the G5BLK combines surge suppression (up to 3,400 J), noise filtering, and sequenced power control in a compact 1U form factor. With eight rear outlets and one front-facing outlet, it lets you prioritize equipment power-up order and protect against electrical disturbances.

Advanced Options

Featuring isolated filter banks, intelligent sequencing, and efficient clamping, this power conditioner ensures clean, reliable power delivery. Its sturdy rack-ready design and LCD display enhance usability in server rooms, A/V racks, and high-performance IT installations .

Product Key Features

  • Rack-mountable 1U power conditioner with surge protector

  • 15 A capacity at 120 V, supporting up to 3,400 J surge absorption

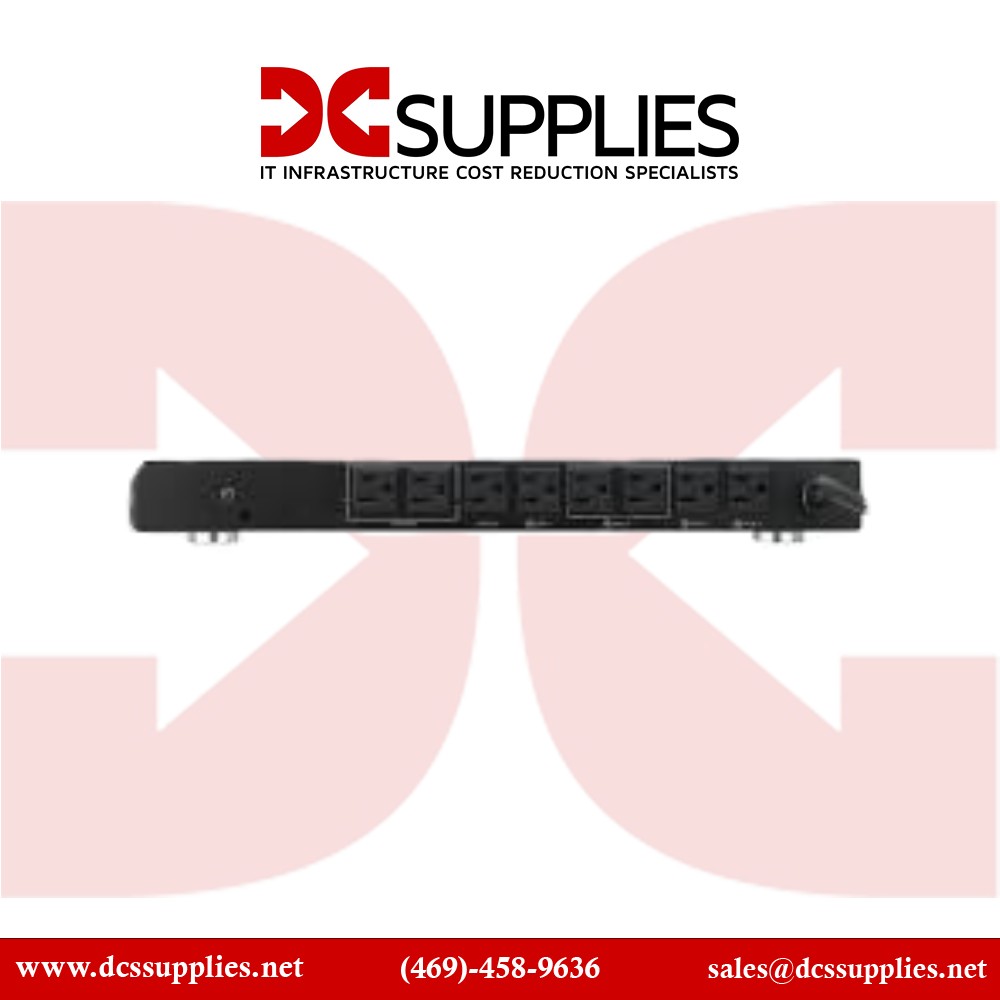

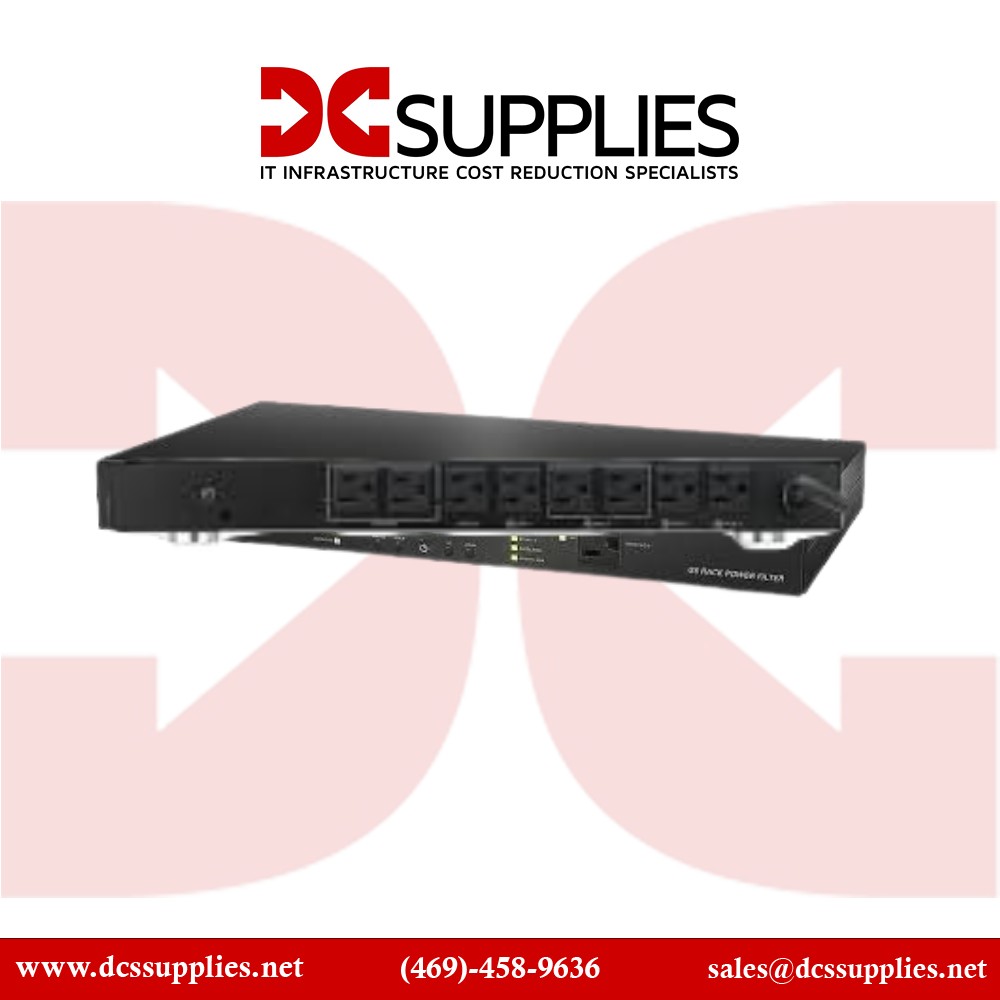

  • Eight rear outlets, one front outlet for convenience

  • Sequenced turn-on/off and noise-filtering banks

  • Isolated filter banks for clean power delivery

  • LED/LCD display for real-time power metering

Reliability & Performance

Designed to protect expensive electronics from transients, noise, and brownouts, the APC G5BLK includes surge suppression with <40 V let-through and 0 ns common-mode response time . Its sequencing ability allows you to set staggered power-up of devices, reducing inrush loads. The sturdy steel chassis, rack-ears, and durable outlets make it ideal for 19″ racks in A/V, IT, and lab environments.

Key Features (Bullet List)

 Surge protection up to 3,400 Joules
- Sequenced power-on/off functionality
- Rack-ready 1U metal chassis
- 8 rear + 1 front NEMA 5‑15R outlets
- Isolated filter banks for clean delivery
- LCD readout of voltage, current, status

Specifications :

SpecificationDetails
Model Number G5BLK
Product Type 1U Rack-Mount Power Conditioner / Surge Protector
Voltage Rating 120 VAC, 50/60 Hz
Current Rating 15 A
Surge Energy Capacity 3,400 Joules
Outlet Count 8 rear + 1 front NEMA 5‑15R
Sequencing Yes, with isolated filter banks
Let-Through Voltage < 40 V
Common-Mode Rejection 55 dB
Chassis 1U steel rackmount, includes ears
Form Factor Rackmount (1U, approx. 17.1″ × 1.7″ × 9.5″)
Weight ~8.6 lb (~3.9 kg)
