Detailed Specifications

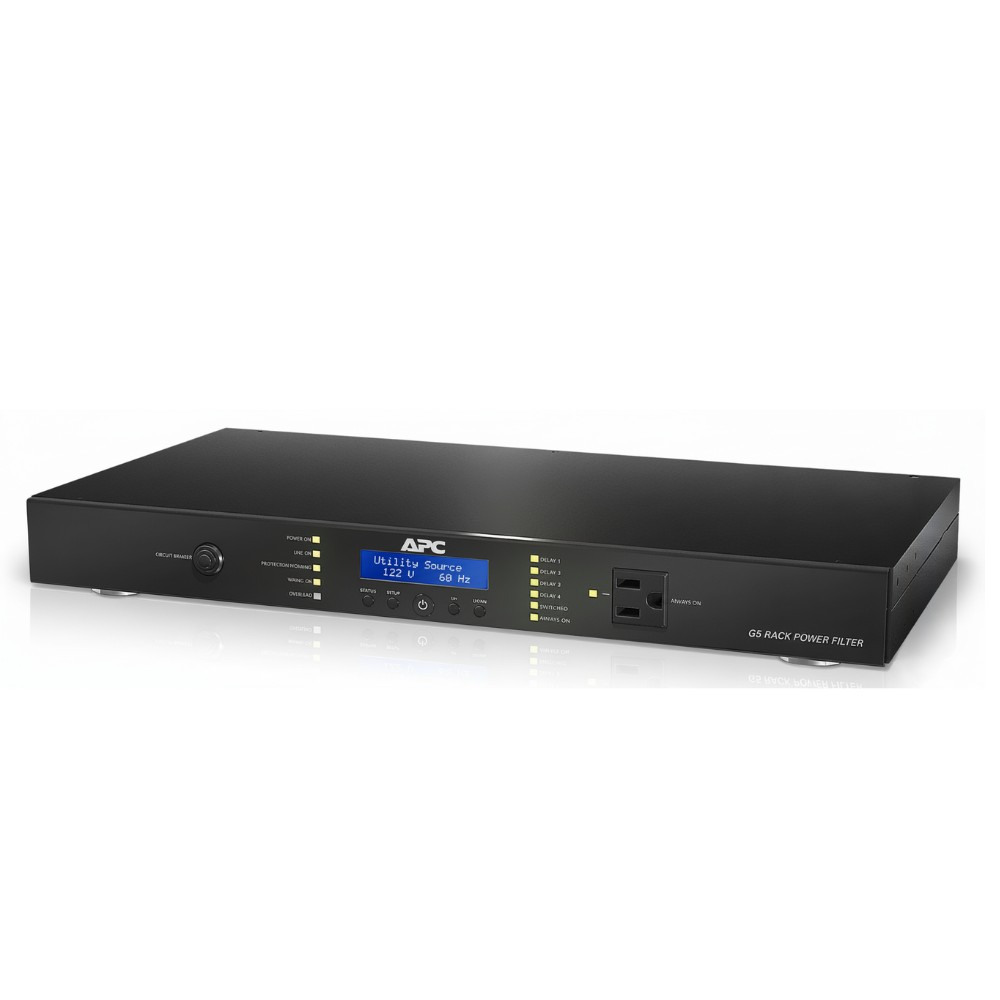

APC G5BLK - 15A 1U Rack Power Filter
Overview :
The APC G5BLK is a 15-amp, 120V rack-mounted power filter designed for high-performance audio-video equipment. It offers surge protection, EMI/RFI noise filtering, and sequenced power-on capabilities. Ideal for AV racks in data centers, broadcast studios, and control rooms. The unit supports rack or shelf mounting and includes an LCD display for real-time status monitoring.
Key Features :
9 NEMA 5-15R outlets with surge and EMI/RFI filtering
4 sequenced delay outlets with adjustable timing
LCD display for voltage, current, and status monitoring
Lifetime warranty with $450,000 equipment protection
Specifications :
| Specification | Details |
|---|
| Brand | APC |
| Part Number | G5BLK |
| Product Type | 15A 1U Rack Power Filter |
| Nominal Input Voltage | 120V AC |
| Input Frequency | 50/60 Hz |
| Input Connection | NEMA 5-15P |
| Cord Length | 8 ft (2.44 m) |
| Maximum Input Current | 15A |
| Input Breaker Rating | 15A |
| Number of Outlets | 9 (all surge and EMI/RFI filtered) |
| Outlet Type | NEMA 5-15R |
| Surge Energy Rating | 3400 Joules |
| Let-Through Voltage | <40V |
| Rack Height | 1U |
| Unit Dimensions (H x W x D) | 1.71" x 17.1" x 9.4" |
| Unit Weight | 8.6 lbs (3.9 kg) |
| Operating Temperature | 0-50°C |
| Operating Humidity | 0-95% (non-condensing) |
| Safety Approvals | UL 1449, UL 1283, FCC Part 68 |
