APC SRT6KRMXLT Smart-UPS On-Line 6kVA Rackmount 4U, 208V View larger
Previous Next

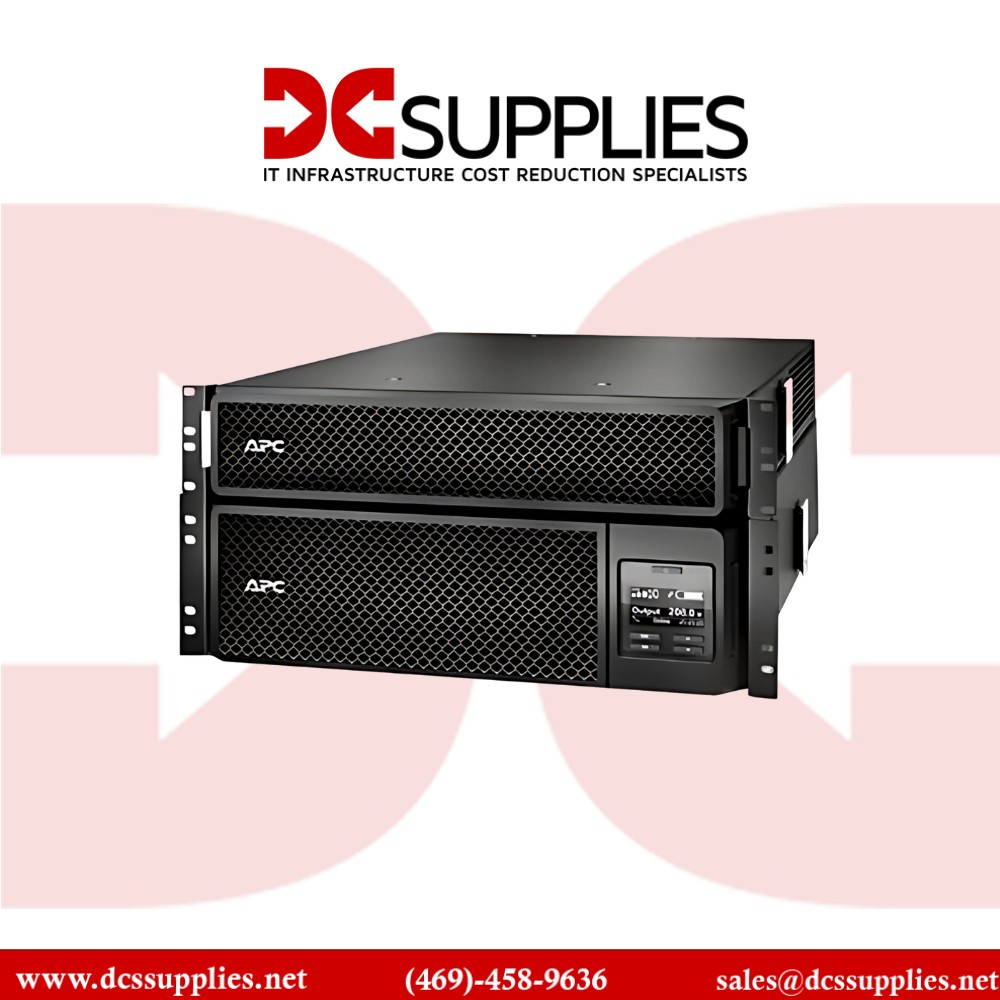

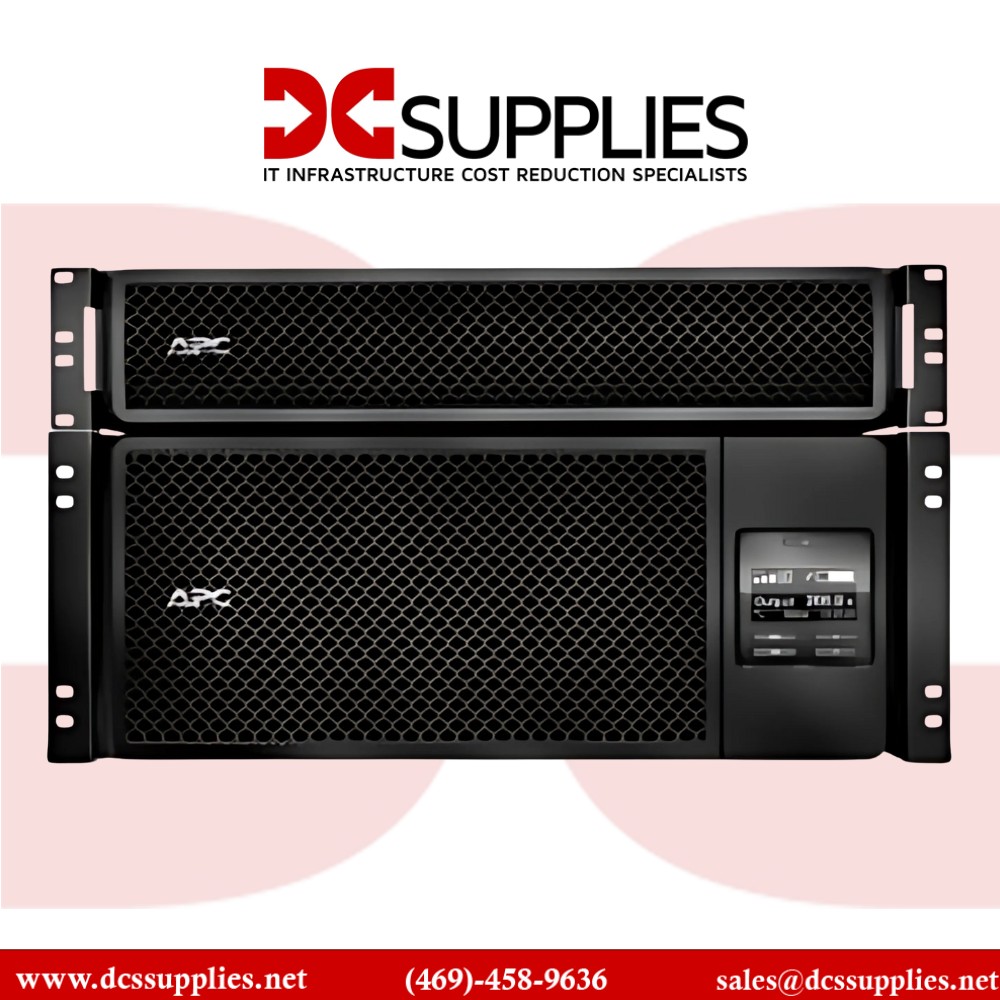

APC SRT6KRMXLT Smart-UPS On-Line 6kVA Rackmount 4U, 208V

New

High-efficiency 6000VA rack-mount UPS with 208V input for critical power backup.
×




$7,539.90

  • New

Detailed Specifications

APC

SRT6KRMXLT

Smart‑UPS On‑Line 6 kVA / 6 kW Rackmount UPS – 208 V, 4U

The APC SRT6KRMXLT is a high-performance, 6 kVA/6 kW double-conversion on-line UPS with pure sine wave output, engineered for 208 V data center environments. This 4U rackmount model is ideal for protecting critical IT infrastructure — servers, storage arrays, networking gear, and light industrial equipment — against power interruptions, voltage fluctuations, and electrical noise. Featuring an intuitive LCD, integrated network management, and extendable runtime, the SRT6KRMXLT ensures continuous uptime and energy-efficient operation in demanding power environments.

Features

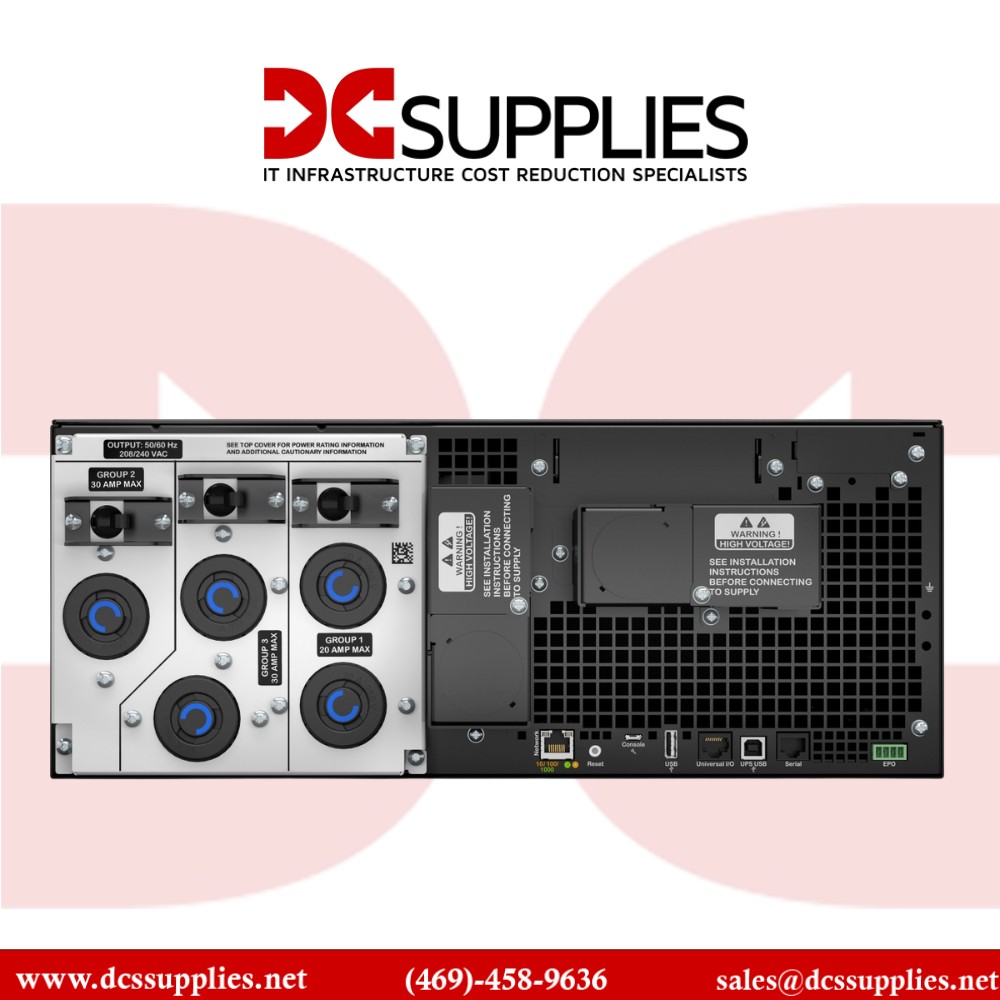

Utilizing double-conversion topology, the UPS continually cleans the incoming AC power to deliver stable, regulated 208 V output even during brownouts or surges. Its input voltage range spans 100–275 V at half load and 160–275 V at full load, making it suitable for unstable power sources . The unit includes five power outlets — two NEMA L6‑20R and three NEMA L6‑30R — plus a hard-wired 2-phase + ground input, accommodating diverse equipment without adaptors

Advanced Options

The SRT6KRMXLT supports extended runtime via external battery packs and features a pre-installed network card with SmartSlot for remote monitoring over Web, SNMP, or PowerChute. A green efficiency mode reduces energy usage during normal operation. Rack/tower convertible with kit, and comes complete with rails, temperature probe, and comprehensive documentation — out-of-box ready for large rack deployments

Product Key Features

  • 6 kVA / 6 kW double-conversion, on-line UPS with pure sine wave output

  • Wide input tolerance: 100–275 V (half load), 160–275 V full load

  • Rackmount 4U chassis with rack/tower conversion kit included

  • Five power outlets: 2× L6‑20R, 3× L6‑30R, plus hard-wired input

  • SmartSlot network management (Web, SNMP, PowerChute)

  • Hot-swappable internal battery capable of external pack expansion

  • Energy-efficient operation with Green Mode

  • Internal bypass and EPO port for maintenance and safety

Reliability & Performance

The SRT6KRMXLT delivers advanced protection and uptime efficiency. Its continuous double-conversion ensures zero transfer time and isolation from poor upstream power. Predictive SmartBattery management and internal bypass ensure serviceability without interruption. The unit supports ambient operation up to 40 °C and offers built-in diagnostics and audible alerts for proactive maintenance. ENERGY STAR certification and recycled packaging reflect Schneider Electric’s commitment to energy and environmental responsibility

Key Features (Bullet List)

  • 6 kVA / 6 kW of true on-line, double-conversion power

  • Rack/tower convertible 4U form factor

  • 2× NEMA L6‑20R + 3× NEMA L6‑30R outlets

  • SmartSlot network card pre-installed

  • Hot-swappable batteries and external runtime expansion

  • Green Mode energy-saving operation

  • Internal bypass and EPO support

  • SmartBattery predictive management and alerts

Specifications :

SpecificationDetails
Model Number SRT6KRMXLT
Type Double-Conversion On-line UPS
Power Capacity 6 kVA / 6 kW
Input Voltage Range 100–275 V (half load), 160–275 V (full load)
Input Connection Hard-wired 3-wire (2-phase + G)
Output Voltage 208 V ± 2 %
Outlet Configuration 2× NEMA L6‑20R, 3× NEMA L6‑30R
Waveform Pure Sine Wave
Topology Double-Conversion Online
Crest Factor 3 : 1
Bypass Internal (automatic & manual)
SmartSlot Interfaces 1 pre-installed network card (Web, SNMP)
Communication Ports Ethernet, USB, Serial
Display Multifunction LCD with status & diagnostics
External Battery Support Yes (supports SRT192RMBP battery packs)
Efficiency Mode Green Mode
Operating Temperature 0–40 °C
Rack Height 4U
Dimensions (H×W×D) 6.85″ × 17.0″ × 28.3″ (174 × 432 × 719 mm)
Weight ~135 lb (61.2 kg)
Certifications ENERGY STAR V2.0, UL 1778, FCC, RoHS, REACH
Warranty 3‑Year UPS / 2‑Year Battery
